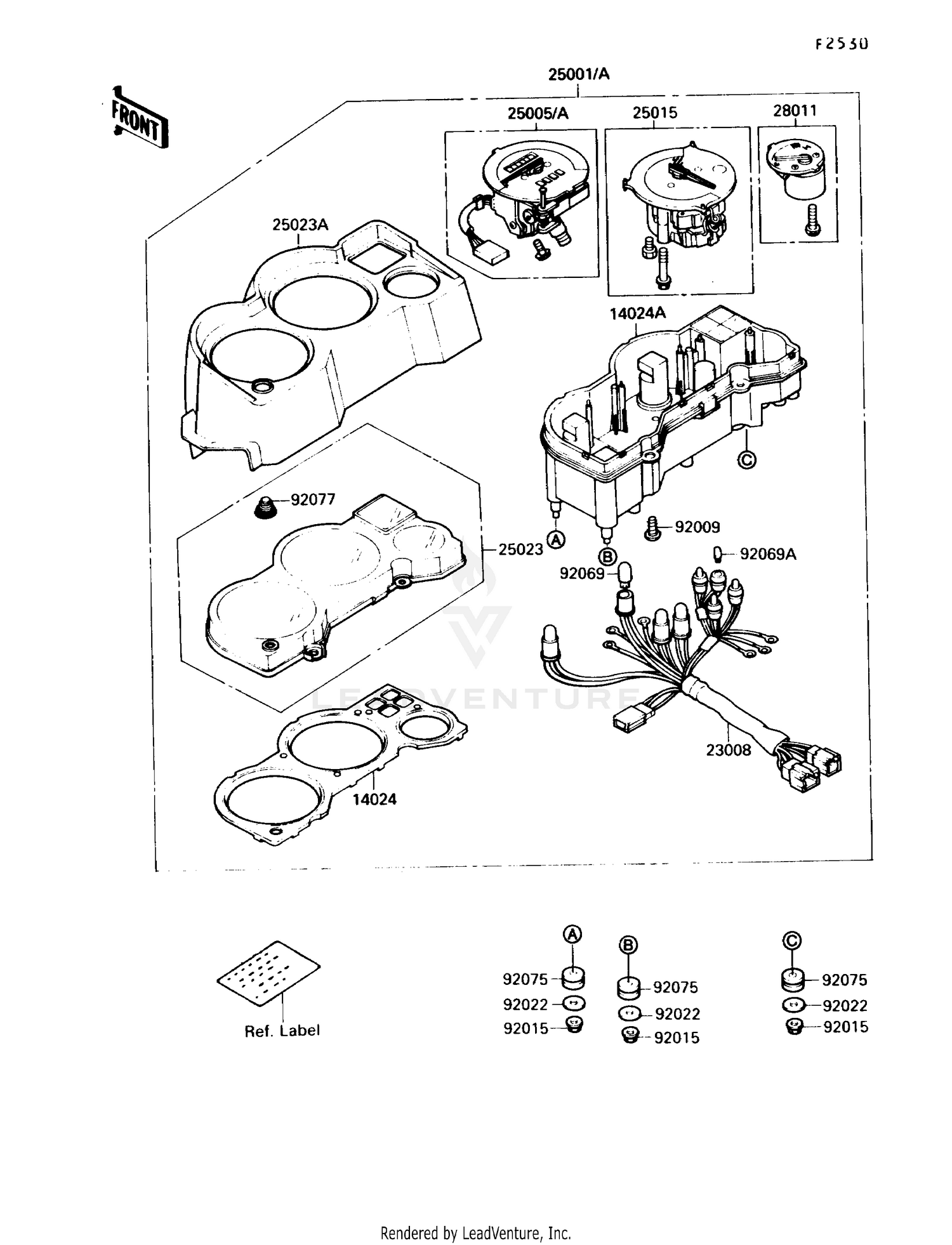

Meter(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14024
COVER,METER
14024-1463
|
$33.47 | ||
|
Available to order. Add to View Price |
|||
|
#14024A
COVER,METER HOUSING
14024-1664
|
$94.00 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,METER
23008-1367
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#25001
METER-ASSY,MPH
25001-1718
|
$1,151.40 | ||
|
Available to order. Add to View Price |
|||
|
#25001A
METER-ASSY,KPH
25001-1719
|
|||
|
Unavailable |
|||
|
#25005
SPEEDOMETER,MPH
25005-1378
Superseded by 25005-1388
|
$436.22 | ||
|
Available to order. Add to View Price |
|||
|
#25005A
SPEEDOMETER,KPH
25005-1379
|
|||
|
Unavailable |
|||
|
#25015
TACHOMETER,X1000R/MIN
25015-1275
|
$404.38 | ||
|
Available to order. Add to View Price |
|||
|
#25023
COVER-METER CASE,UPP
25023-1158
|
$112.58 | ||
|
Available to order. Add to View Price |
|||
|
#25023A
COVER-METER CASE
25023-1159
|
$67.32 | ||
|
Available to order. Add to View Price |
|||
|
#28011
METER,TEMP
28011-1100
|
$120.29 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,4X16
92009-1163
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,5MM
92015-1259
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.2X16X1.2
25009-004
Superseded by 92200-2276
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 3.4W,T10
92069-1007
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,14V 3W,T6.5
92069-1068
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,METER BRACKET
92075-1385
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#92077
BOOT,TRIP RESET KNOB
92077-1061
|
$9.17 | ||
|
Available to order. Add to View Price |
|||
