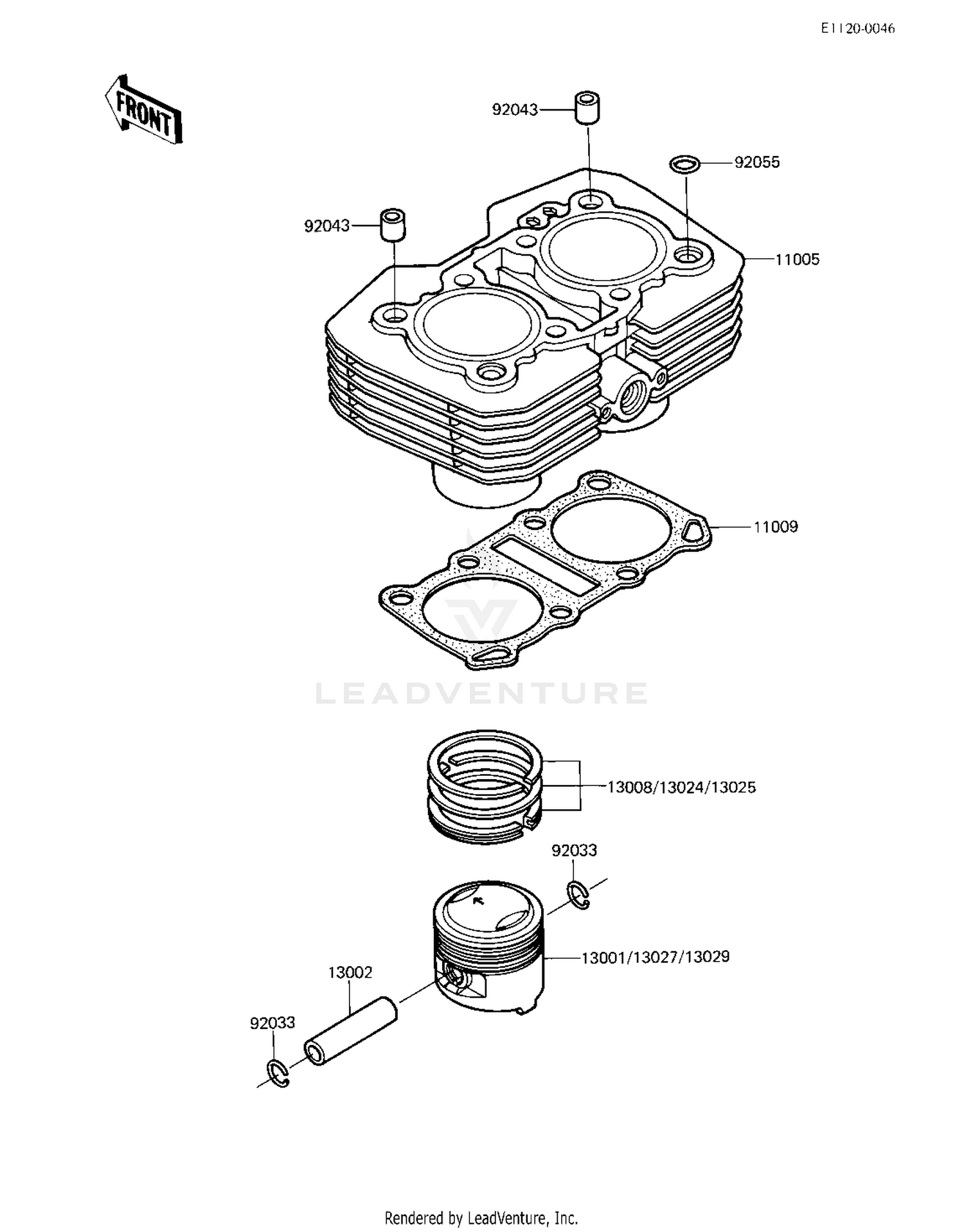

Cylinder/pistons Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11005
CYLINDER-ENGINE,F.BLA
11005-1374
|
$590.00 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,CYLINDER
11060-1058
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#13001
PISTON-ENGINE,STD
13001-1116
|
$86.51 | ||
|
Available to order. Add to View Price |
|||
|
#13002
PIN-PISTON
13002-1051
|
$24.17 | ||
|
Available to order. Add to View Price |
|||
|
#13008
RING-SET-PISTON,STD
13008-1014
|
$48.15 | ||
|
Available to order. Add to View Price |
|||
|
#13024
RING-SET PISTON LL,O/
13024-1052
|
$48.58 | ||
|
Available to order. Add to View Price |
|||
|
#13025
RING-SET PISTON L,O/S
13025-1052
|
$47.98 | ||
|
Available to order. Add to View Price |
|||
|
#13027
PISTON-ENGINE LL,O/S
13027-1052
|
$77.43 | ||
|
Available to order. Add to View Price |
|||
|
#13029
PISTON-ENGINE L,O/S 0
13029-1054
|
$77.43 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,PISTON PIN
92033-1151
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,12X14
92042-031
Superseded by 92043-0963
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,9.8X2.4
92055-1150
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
