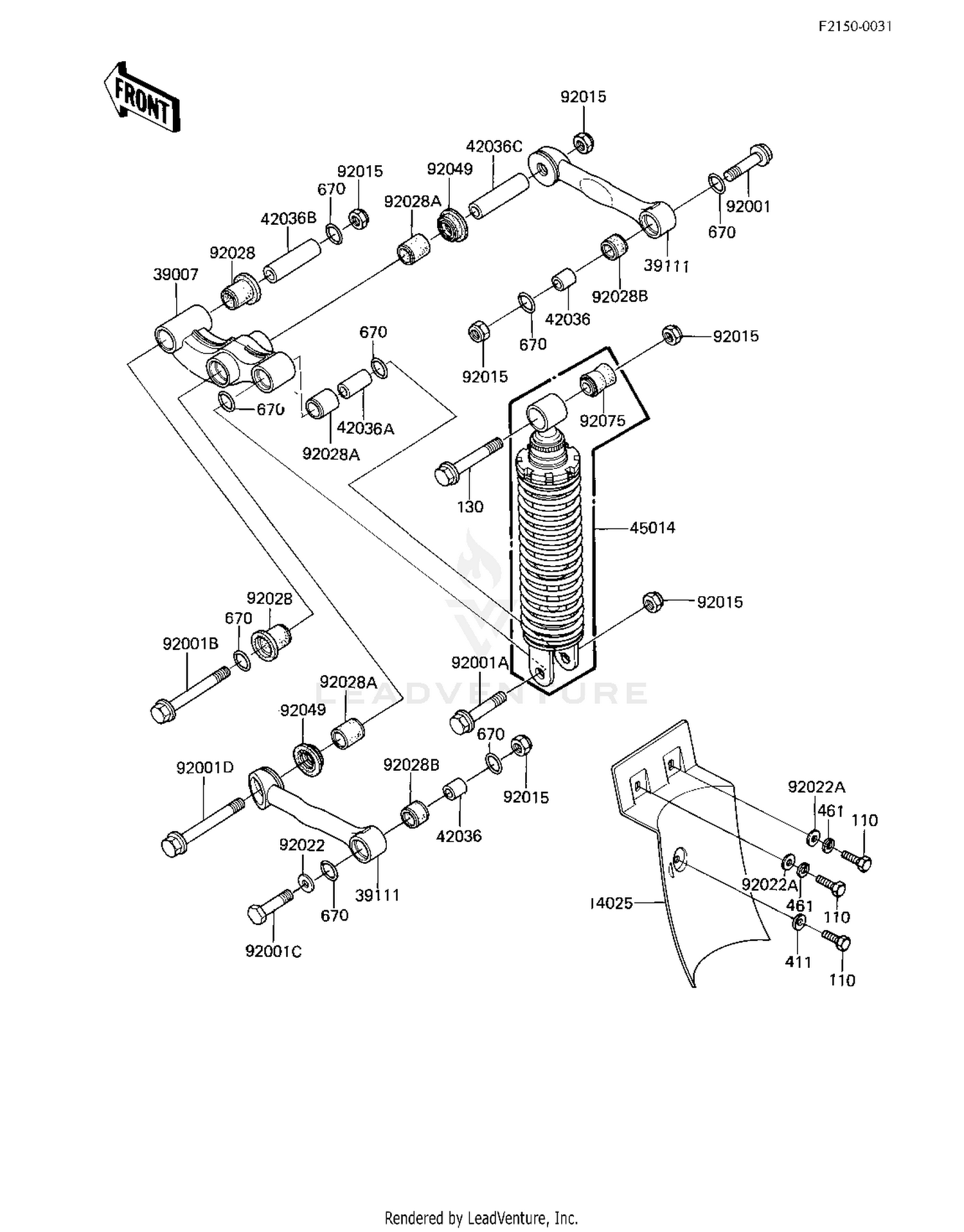

Rear Suspension/shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14025
COVER,SUSPENSION
14025-1763
|
$19.19 | ||
|
Available to order. Add to View Price |
|||
|
#39007
ARM-SUSP,UNI TRAK
39007-1025
|
$136.51 | ||
|
Available to order. Add to View Price |
|||
|
#39111
ROD-TIE,UNI TRAK
39111-1023
|
$61.67 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,TIE ROD,UPP
42036-1076
|
$16.93 | ||
|
Available to order. Add to View Price |
|||
|
#42036A
SLEEVE,12.1X20X32
42036-1077
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
|
#42036B
SLEEVE,ARM,FR
42036-1078
|
$24.37 | ||
|
Available to order. Add to View Price |
|||
|
#42036C
SLEEVE,ARM,CNT
42036-1079
|
$27.53 | ||
|
Available to order. Add to View Price |
|||
|
#45014
SHOCKABSORBER,RR
45014-1229
|
$496.22 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,12X45
92001-1795
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FLANGED,12X55
92001-1796
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,FLANGED,12X90
92001-1797
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#92001C
BOLT,12X45
92001-1799
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#92001D
BOLT,FLANGED,12X95
92001-1804
|
$11.26 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,12MM
92015-1774
Superseded by 92210-1249
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,12.3X22X1.6
92022-1065
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,20X23X29
92028-1200
Superseded by 92139-0890
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#92028A
BUSHING,20X23X24
92028-1598
Superseded by 92139-0940
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#92028B
BUSHING
92028-1599
|
$26.14 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,ARM
92049-1109
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,SHOCKABSORBER
92075-1497
|
$34.03 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED
130G1250
Superseded by 130BA1250
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,20MM
670B2020
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
