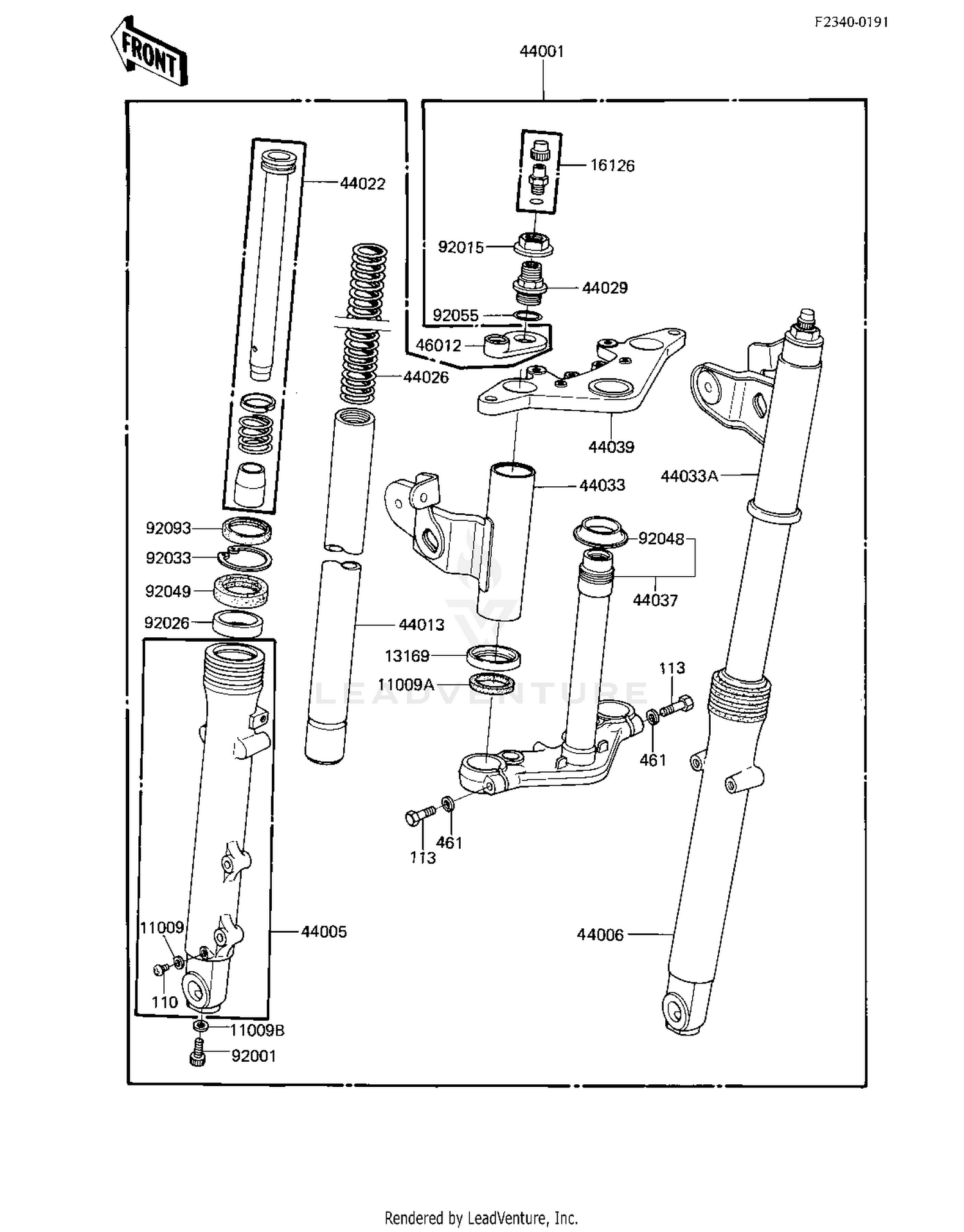

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,DRAIN PLUG
44045-047
Superseded by 44045-052
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,FORK COVER
44045-049
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#11009B
GASKET,FORK CYLINDER BOLT
44045-051
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE,FORK
13169-1842
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,AIR
16126-1043
|
$37.55 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT
44001-1475
|
$1,448.83 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER
44005-1145
|
$361.50 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-1145
|
$329.69 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1119
|
$237.50 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1096
|
$89.36 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1200
|
$48.44 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-1050
|
$48.89 | ||
|
Available to order. Add to View Price |
|||
|
#44033
COVER-FORK,LH
44033-1135
|
$106.20 | ||
|
Available to order. Add to View Price |
|||
|
#44033A
COVER-FORK,RH
44033-1136
|
$106.20 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1107
|
$295.70 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1066
|
$213.03 | ||
|
Available to order. Add to View Price |
|||
|
#46012
HOLDER-HANDLE
46012-1040
|
$39.83 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FORK CYLINDER
44041-078
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,18MM
92015-1256
|
$16.76 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK OUTER
92026-1099
|
$8.44 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1078
|
$5.86 | ||
|
Available to order. Add to View Price |
|||
|
#92048
CONE STRNG STEM BERNG
92047-006
|
$12.22 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER
92049-1080
|
$22.38 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING,FORK TOP BOLT
92055-1101
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1083
|
$26.24 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT HEX HEAD 6X8
110B0608
|
$0.33 | ||
|
Available to order. Add to View Price |
|||
|
#113
BOLT-SMALL-FINE,10X35
112C1035
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,10MM
461K1000
Superseded by 461DB1000
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
