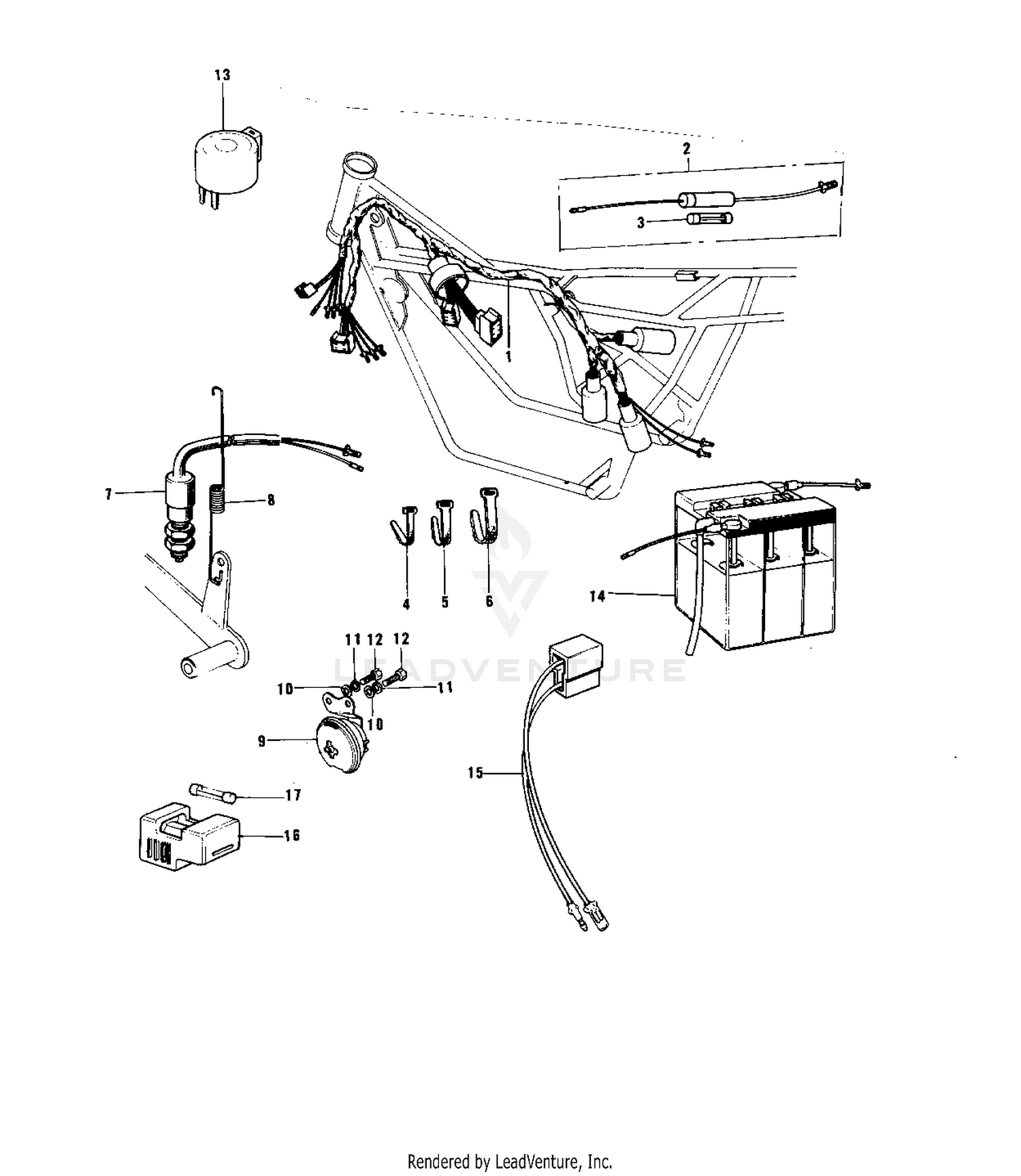

Chassis Electrical Equipment ('74-75 B/c Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRING HARNESS-MAIN
26001-063
|
$95.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUES ASSY
26004-008
|
$21.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE,GLASS TUBE,6.4X25,10
26006-003
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAND,L=123
92072-030
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND,L=149
92072-031
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND,L=218
92072-032
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH,REAR BRAKE
27010-015
Superseded by 27010-1482
|
$34.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING-BRAKE LAMP SW
27011-011
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
HORN
27003-059
|
$43.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
RELAY-TURN SIGNAL
27002-013
|
$46.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
YUA BAT 6N4-2A-5
K26012-020
|
$25.95 | ||
|
Unavailable |
|||
|
#15
WIRE,RECTIFIER LEAD
26011-074
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER,SPARE FUSE
26016-003
|
$10.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
FUSE,GLASS TUBE,6.4X25,10
26006-003
|
$4.57 | ||
|
Unavailable |
|||
