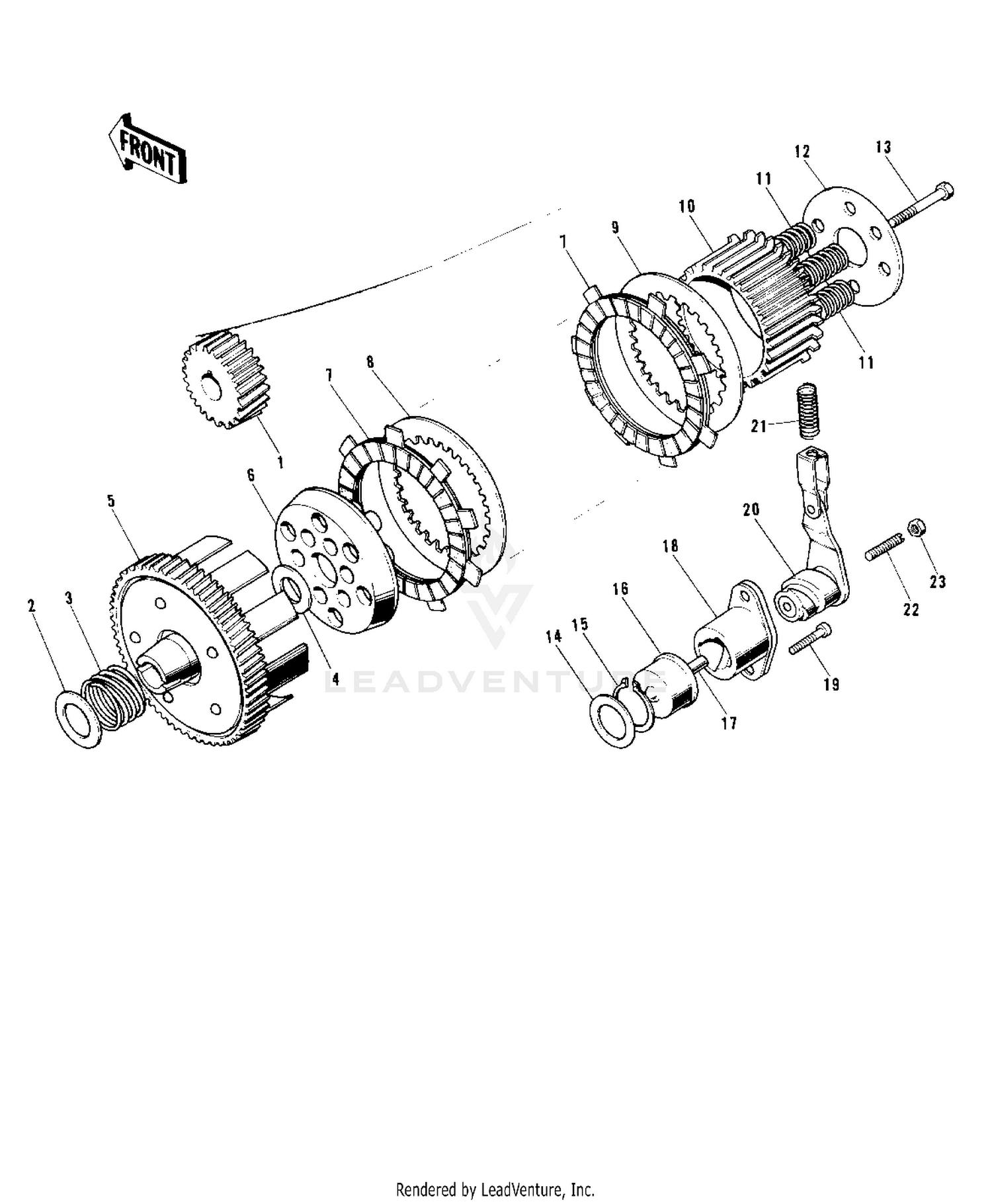

Clutch ('72-'73 G5-a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PINION,PRIMARY
13121-032
|
$91.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER PLAIN
92022-057
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING CLUTCH DAMPER
92081-015
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER THRUST CLUTCH
92022-054
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#
CLUTCH-ASSY
13081-028
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOUSING-COMP-CLUTCH
13095-022
Superseded by 13095-1277
|
$239.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
WHEEL-CLUTCH
13086-1002
|
$43.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE-FRICTION
13088-1103
Superseded by 13088-1010
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE-CLUTCH,STEEL
13089-1009
|
$13.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE CLUTCH OUTER
13090-004
|
$20.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
HUB,CLUTCH
13087-1011
|
$87.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING CLUTCH
92081-012
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER,CLUTCH SPRING
13091-1115
|
$17.74 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-UPSET
112G0516
Superseded by 112BA0516
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER THRUST
92022-053
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP-TYPE-C,16MM
480J1600
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
PUSHER CLUTCH SPRING
13113-003
|
$9.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN DOWEL 7X10
610A0710
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#18
OUTER CLUTCH RELEASE
13118-001
|
$27.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
INNER CLUTCH RELEASE
13102-004
|
$31.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING-CLUTCH RELEASE
92081-096
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW SLOTTED 6X28
291Z0628
|
$5.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
