1972 Kawasaki G5 Meters/headlight ('74-'75 B/c) OEM Parts

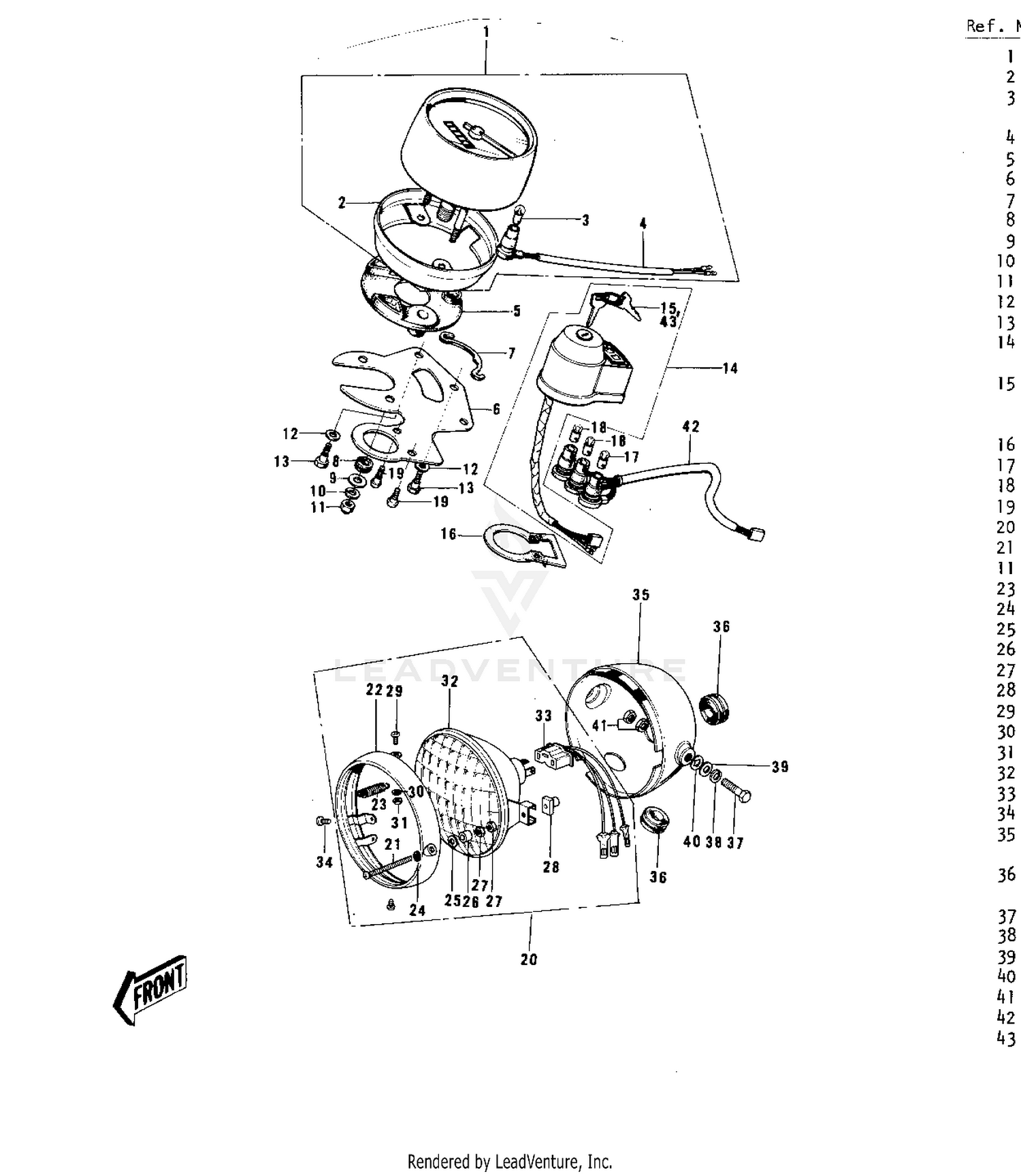

Meters/headlight ('74-'75 B/c) Diagram

Item	MSRP	Qty
#1 SPEEDOMETER ASSY,MPH 25005-095	$140.55
Available to order. Add to View Price
#2 COVER,SPEEDOMETER 25012-016	$17.53
Available to order. Add to View Price
#3 BULB-6V 3W 92069-053	$4.05
Available to order. Add to View Price
#3 BULB 6V 1.5W 92069-024	$5.14
Available to order. Add to View Price
#4 SOCKET,SPEEDOMETER 25010-014	$43.13
Available to order. Add to View Price
#5 SHOCK DAMPER,METER 25019-018	$11.15
Available to order. Add to View Price
#6 BRACKET,SPEEDOMETER 25008-031	$20.52
Available to order. Add to View Price
#7 DAMPER RUBBER-BRACKET 25019-007	$6.21
Available to order. Add to View Price
#8 DAMPER RUBBER,METER 25019-019	$8.02
Available to order. Add to View Price
#9 WASHER,5.5X20X1.2 92022-104 Superseded by 92022-1405	$4.17
Available to order. Add to View Price
#10 WASHER-SPRING,5MM 461F0500 Superseded by 461DA0500	$0.69
Available to order. Add to View Price
#11 NUT-CAP,5MM 322N0500	$3.93
Available to order. Add to View Price
#12 WASHER-PLAIN-SMALL,8MM 410B0800 Superseded by 410AA0800	$0.93
Available to order. Add to View Price
#13 BOLT 92003-069 Superseded by 92001-1406	$8.65
Available to order. Add to View Price
#14 SWITCH ASSY,IGNITION 27005-067	$134.49
Available to order. Add to View Price
#14 SWITCH ASSY,IGNITION 27005-082	$50.34
Available to order. Add to View Price
#15 KEY SET,#401 27008-063-01	$28.83
Available to order. Add to View Price
#15 KEY SET,#430 27008-063-30	$8.98
Available to order. Add to View Price
#16 DAMPER RUBBER-SWITCH 27025-001	$6.25
Available to order. Add to View Price
#17 BULB-6V 3W 92069-053	$4.05
Unavailable
#18 BULB 6V 1.5W 92069-024	$5.14
Unavailable
#19 SCREW-PAN HEAD,6MM 92011-026	$5.16
Available to order. Add to View Price
#20 LAMP UNIT HEAD 23003-009	$125.85
Available to order. Add to View Price
#21 SCREW ADJUST 23019-013	$1.56
Available to order. Add to View Price
#11 RIM HEAD LAMP 23006-020	$60.62
Available to order. Add to View Price
#23 SPRING LENS FITTING 23014-008	$1.22
Available to order. Add to View Price
#24 WASHER-FOCUS ADJUST 23021-008	$3.82
Available to order. Add to View Price
#25 WASHER ADJUST 23021-007	$0.57
Available to order. Add to View Price
#26 WASHER FITTING 23058-001	$1.95
Available to order. Add to View Price
#27 NUT ADJUST 23020-013	$2.53
Available to order. Add to View Price
#28 NUT ADJUST 23020-012	$3.79
Available to order. Add to View Price
#29 SCREW FITTING 23019-014	$0.88
Available to order. Add to View Price
#30 WASHER SPRING 4MM 461F0400	$0.46
Available to order. Add to View Price
#31 NUT-HEX,4MM 311B0400 Superseded by 311AA0400	$0.52
Available to order. Add to View Price
#32 SEALED BEAM UNIT 23007-023	$118.93
Available to order. Add to View Price
#33 SOCKET ASSY,HD LIGHT 23008-044	$21.52
Available to order. Add to View Price
#34 SCREW OVL CNTSNK 5X8 222E0508A Superseded by 222E0508	$1.23
Available to order. Add to View Price
#35 CASE-HEAD LAMP,BLACK 23005-021-21	$52.50
Available to order. Add to View Price
#35 BODY,HEAD LAMP,BLACK 23005-051-21	$26.35
Available to order. Add to View Price
#36 GROMMET WIRING HARNES 23023-007	$3.67
Available to order. Add to View Price
#36 GROMMET 23023-011	$6.45
Available to order. Add to View Price
#37 BOLT,HEX HEAD,10X25 92007-045	$10.25
Available to order. Add to View Price
#38 WASHER-SPRING,10MM 461F1000 Superseded by 461DA1000	$0.67
Available to order. Add to View Price
#39 WASHER-PLAIN,10MM 411B1000 Superseded by 411AA1000	$0.93
Available to order. Add to View Price
#40 WASHER LOCK 10MM 463H1000	$0.69
Available to order. Add to View Price
#41 NUT 10MM 92016-027	$4.03
Available to order. Add to View Price
#42 SOCKET-IGNITION SW. 27024-001	$28.27
Available to order. Add to View Price
#43 KEY,BLANK 27008-1024	$20.89
Available to order. Add to View Price
#43 KEY,BLANK 27008-1025	$20.89
Available to order. Add to View Price
