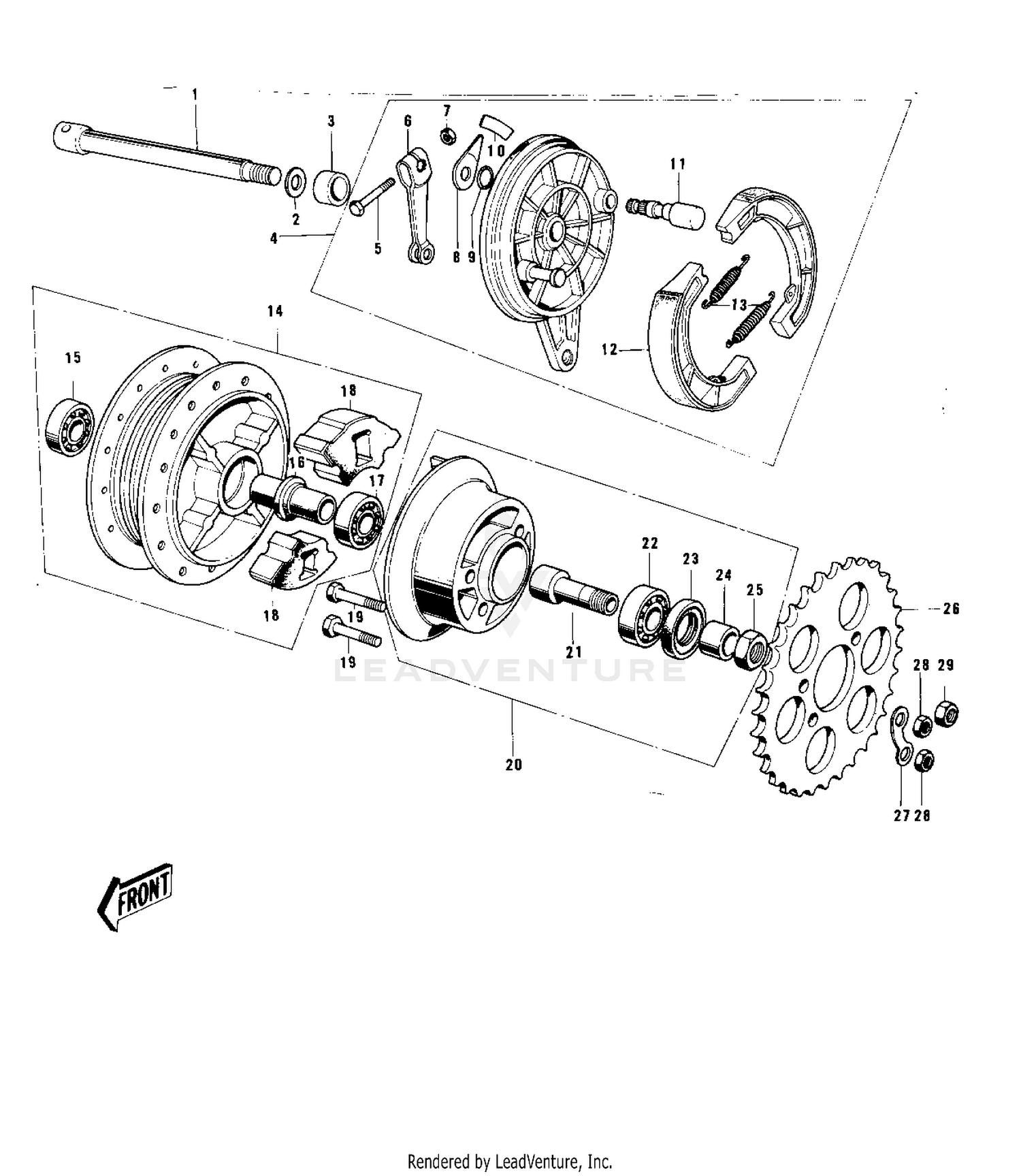

Rear Hub/brake ('74-'75 B/c) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE,12X215
41068-1109
|
$39.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-PLAIN-SMALL,12MM
410B1200
Superseded by 410AA1200
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR,12.2X22X28.5
42032-006
Superseded by 92027-1477
|
$9.47 | ||
|
Unavailable |
|||
|
#4
PANEL ASY,RR BK,BUFF
42006-038-80
|
$93.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER,FRONT BRAKE CAM
41053-002
|
$11.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT,6MM
41072-007
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
INDICATOR,BKSHOE
41085-003
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
0 RING,11MM
92055-004
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
LABEL,REAR BRKE SHOE
41084-003
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAM SHAFT,REAR BRAKE
42026-018
|
$32.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHOE-BRAKE
41048-1085
|
$21.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING,BRAKE SHOE
92081-1766
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
DRUM-ASSY,RR
42005-031-80
Superseded by 41034-1039
|
$204.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING BALL #6301Z
601B6301Z
|
$19.78 | ||
|
Unavailable |
|||
|
#16
SPACER-RR HUB BEARING
42010-005
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING-BALL,#6201C3
601B6201
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER REAR HUB SHOCK
42014-016
|
$17.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
92001-082
Superseded by 92151-1160
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
COUPLING ASSY-RR HUB
42033-014
|
$114.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
SLEEVE-RR HUB COUPLNG
42036-013
|
$37.79 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING BALL #6203
601B6203
|
$13.77 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL-COUPLING
92052-003
|
$12.90 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSH,COUPLNG OIL SEAL
42037-003
|
$13.22 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT,16MM
42045-004
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
REAR SPROCKET 42T
42041-076
|
$51.13 | ||
|
Available to order. Add to View Price |
|||
|
#26
RR SPROCKET 39T (OPT)
42041-104
|
$49.24 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPROCKET-HUB,40T
42041-1095
|
$46.98 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER LOCK
92088-011
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT 10MM
42045-005
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
