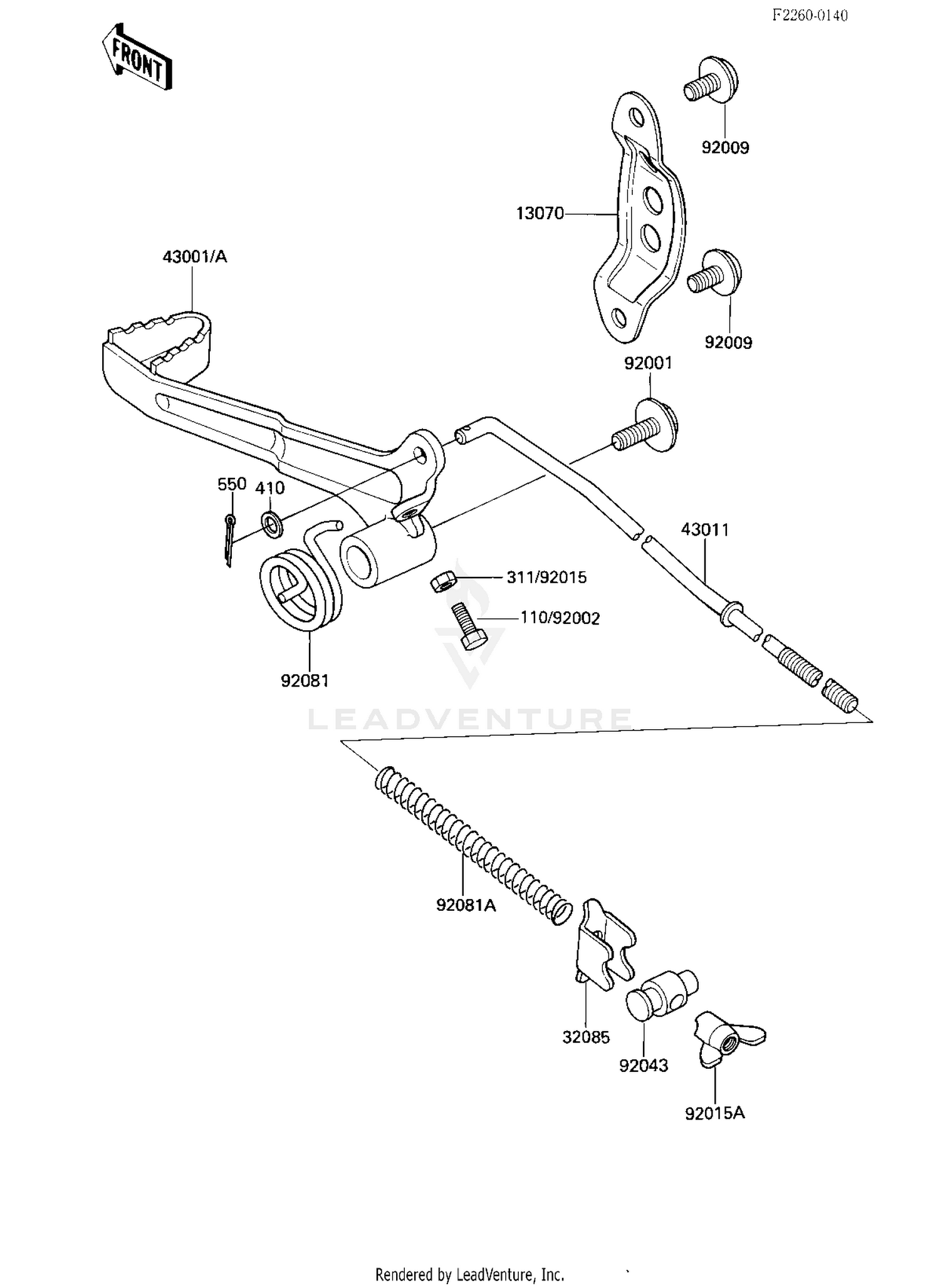

1983 Kawasaki KDX200A1 BRAKE PEDAL OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13070
GUIDE,BRAKE ROD
13070-1082
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#32085
STOPPER,BRAKE ROD
32085-1115
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#43001
LEVER-BRAKE,PEDAL
43001-1098
|
$61.91 | ||
|
Available to order. Add to View Price |
|||
|
#43001A
LEVER-BRAKE,PEDAL
43001-1164
|
$112.93 | ||
|
Available to order. Add to View Price |
|||
|
#43011
ROD-BRAKE
43011-1055
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X10
92001-1034
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X20
92002-1373
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X10,WHITE
92009-1286
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1391
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,WING,6M/M
92015-4004
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,BRAKE ROD
92043-1139
|
$14.43 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE PEDAL
92144-1085
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,BRAKE ROD
92081-1688
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
