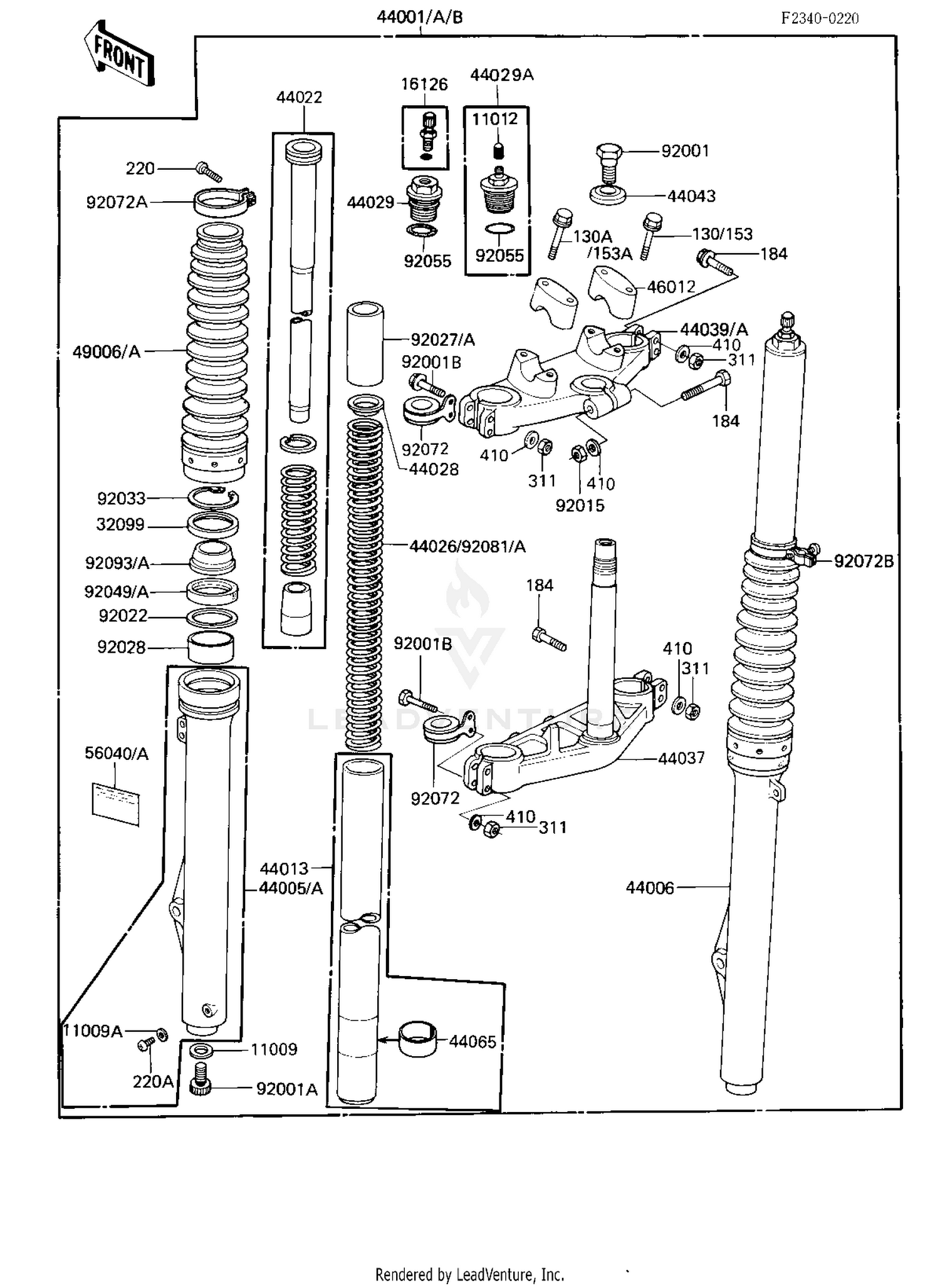

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER BOLT
11009-1127
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,VALVE AIR
11012-1391
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,AIR FRONT FORK
16126-1048
|
$16.76 | ||
|
Available to order. Add to View Price |
|||
|
#32099
CASE,DUST SHIELD
32099-1013
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT
44001-1398
|
$1,190.71 | ||
|
Available to order. Add to View Price |
|||
|
#44001A
FORK-FRONT
44001-1535
|
$1,232.32 | ||
|
Available to order. Add to View Price |
|||
|
#44001B
FORK-FRONT
44001-1570
|
$1,206.46 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER
44005-1209
|
$304.96 | ||
|
Available to order. Add to View Price |
|||
|
#44005A
PIPE-LEFT FORK OUTER
44005-1209
|
$304.96 | ||
|
Unavailable |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-1123
|
$304.35 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1102
|
$371.24 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1088
|
$106.17 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1205
|
$37.29 | ||
|
Available to order. Add to View Price |
|||
|
#44028
GUIDE-FORK SPRING
44028-1003
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-1042
|
$69.39 | ||
|
Available to order. Add to View Price |
|||
|
#44029A
SEAT-FORK SPRING
44029-1106
|
$36.77 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1103
|
$380.96 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1043
|
$190.69 | ||
|
Available to order. Add to View Price |
|||
|
#44039A
HOLDER-FORK UPPER
44039-1114
|
$165.71 | ||
|
Available to order. Add to View Price |
|||
|
#44043
WASHER
44043-052
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING,FORK PIPE
92028-1126
|
$47.35 | ||
|
Available to order. Add to View Price |
|||
|
#46012
HOLDER-HANDLE
46012-1014
|
$11.79 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,FORK
49006-1174
|
$72.93 | ||
|
Available to order. Add to View Price |
|||
|
#49006A
BOOT,FORK
49006-1174
|
$72.93 | ||
|
Unavailable |
|||
|
#56040
LABEL-WARNING
56040-1002
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#56040A
LABEL,FRONT FORK
56040-1120
|
$5.90 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FORK TOP
44041-065
|
$26.35 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FORK CYLINDER
92001-1309
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT FLANGED 8X55
92001-1398
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,8MM
92015-1124
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,FORK OUTER PIPE
92022-1262
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,FORK SPRING
92027-1535
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,L=127
92027-1762
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING-FRONT FORK,OU
44065-1091
|
$25.04 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,FORK
92033-1047
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL,FORK OUT TUB
92049-1042
|
$25.61 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,FRONT FORK
92049-1180
|
$21.35 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING,FORK TOP CAP
92055-1050
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#92072
CLAMP,CABLE
92072-1040
|
$21.98 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,BOOT
92072-1046
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#92072B
BAND,BOOT,RH
92072-1094
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,K=0.32
92081-1582
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,FRONT FORK,K=0
92081-1583
|
$42.39 | ||
|
Available to order. Add to View Price |
|||
|
#92093
DUST SHIELD,FORK OUTR
92093-1035
|
$14.02 | ||
|
Available to order. Add to View Price |
|||
|
#92093A
SEAL,FRONT FORK
92093-1166
|
$17.57 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X35
130G0835
Superseded by 130CA0835
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,8X50
130G0850
Superseded by 130BA0850
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#153
BOLT-UPSET-WS-SMALL
183G0835
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#153A
BOLT-WS-SMALL
153G0850
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#184
BOLT-UPSET-WP-SMALL
184G0855
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220B0316
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT,8MM
311G0800
Superseded by 311BA0800
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
