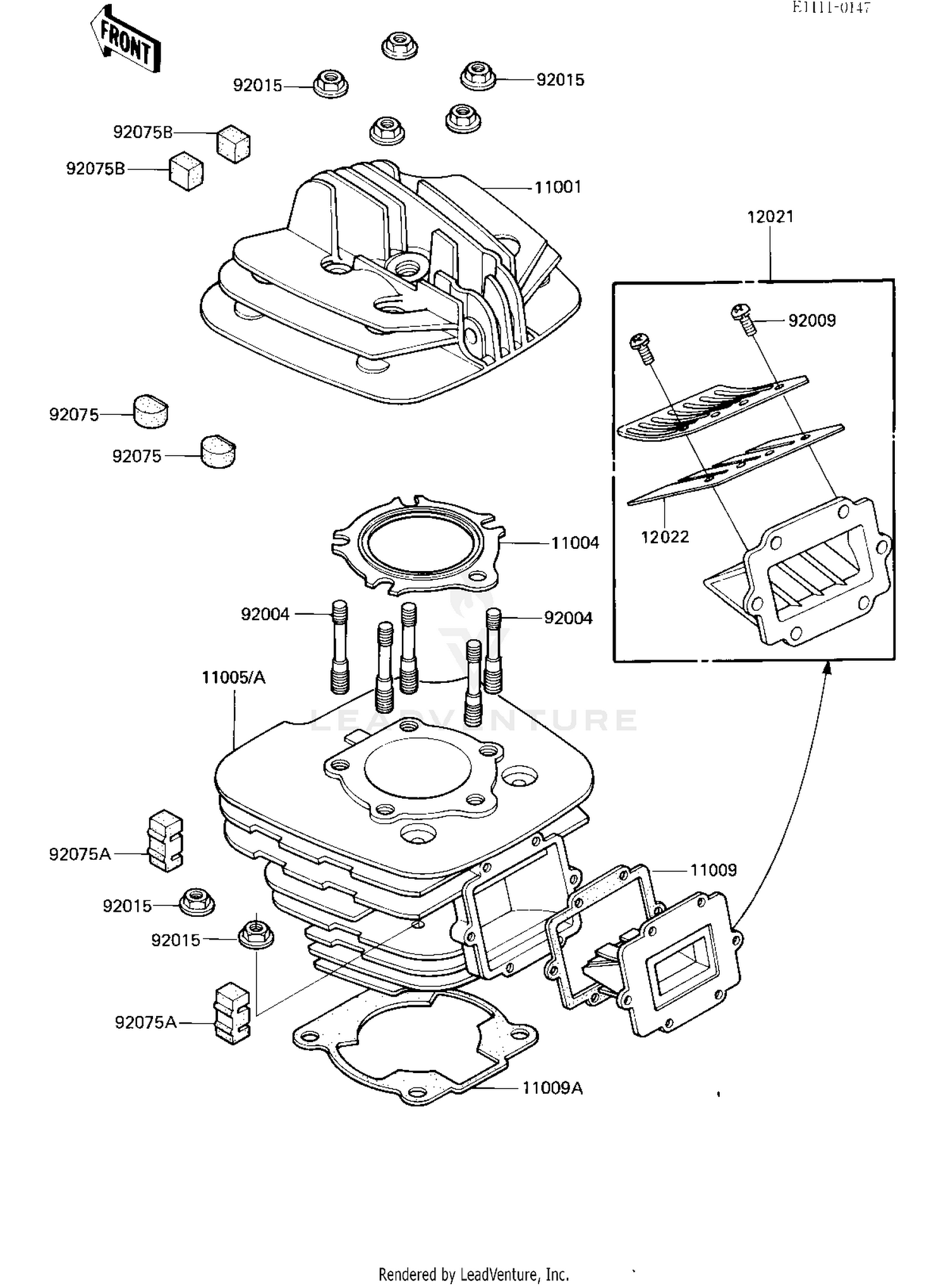

Cylinder Head/cylinder/reed Valve Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11001
HEAD-CYLINDER
11001-1119
|
$272.50 | ||
|
Available to order. Add to View Price |
|||
|
#11004
GASKET-HEAD,CYLINDER
11004-1059
|
$37.66 | ||
|
Unavailable |
|||
|
#11005
CYLINDER-ENGINE
11005-1349
|
$814.59 | ||
|
Available to order. Add to View Price |
|||
|
#11005A
CYLINDER-ENGINE
11005-1349
|
$814.59 | ||
|
Unavailable |
|||
|
#11009
GASKET,REED VALVE
11009-1941
|
$8.88 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET, CYLINDER BASE
11009-1323
Superseded by 11060-1441
|
$11.16 | ||
|
Unavailable |
|||
|
#12021
VALVE-ASSY-REED
12021-1023
|
$194.86 | ||
|
Available to order. Add to View Price |
|||
|
#12022
VALVE-REED
12022-1014
|
$19.74 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,CYLINDER
92004-1026
|
$9.52 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,REED VALVE
92009-1014
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1143
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER RUBBER
92075-1176
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,CYLINDER
92075-1229
|
$8.64 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,CYLINDER HEAD
92075-1368
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
