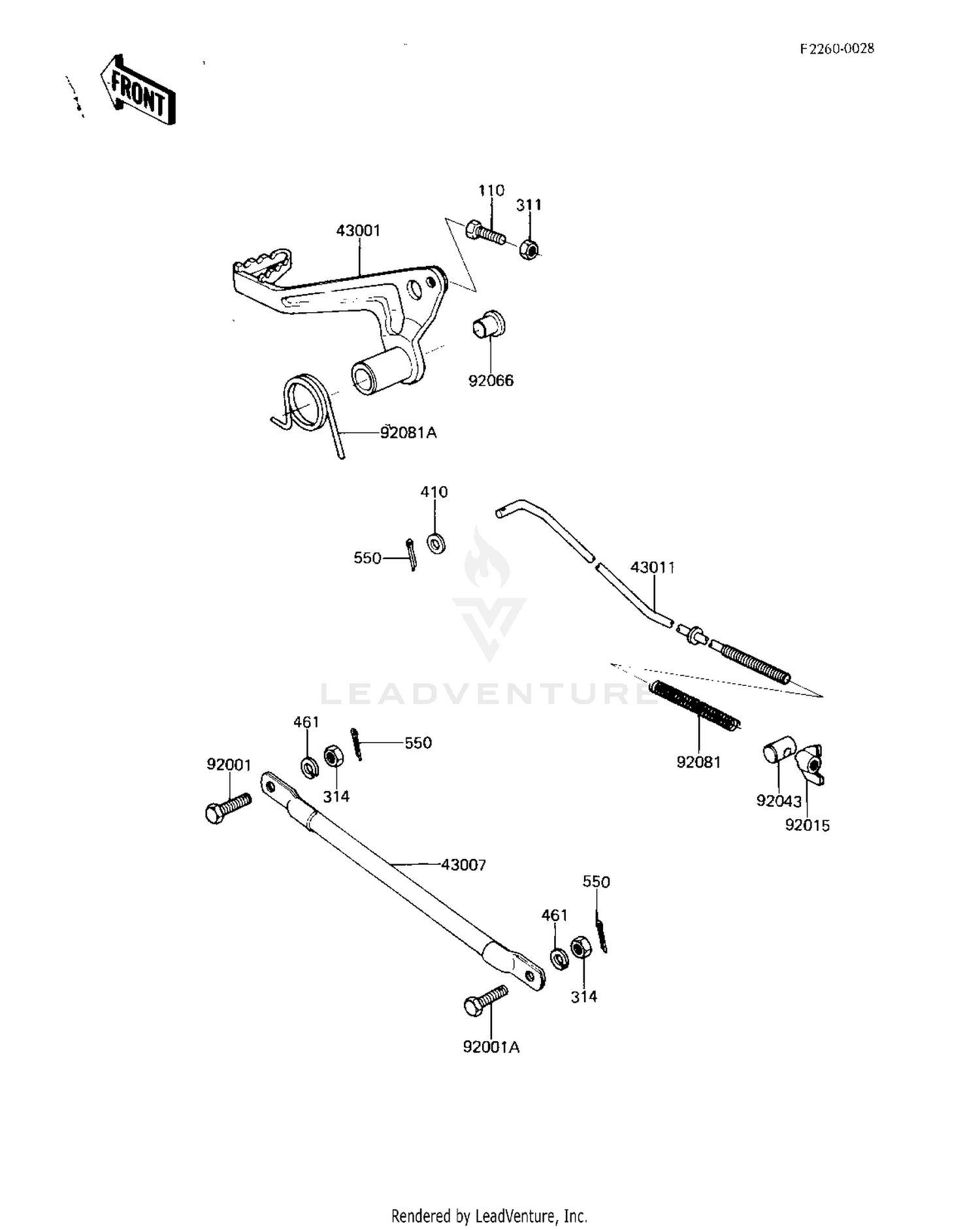

1983 Kawasaki KDX80B BRAKE PEDAL/TORQUE LINK OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#43001
PEDAL,BRAKE
43001-1053
|
$98.62 | ||
|
Available to order. Add to View Price |
|||
|
#43007
TORQUE LINK,RR BRAKE
43007-1024
|
$43.35 | ||
|
Available to order. Add to View Price |
|||
|
#43011
ROD,BRAKE
43011-1028
|
$23.19 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,10X25
92001-1450
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,10X32
92003-003
Superseded by 92150-1872
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,WING,6M/M
92015-4004
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,BRAKE ROD
92043-039
Superseded by 92043-0147
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,BRAKE PEDAL
92066-1078
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE ROD
43012-001
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,BRAKE PEDAL
92081-1290
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112G0618
Superseded by 112BA0618
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#314
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
