1983 Kawasaki KDX80B Fuel Tank OEM Parts

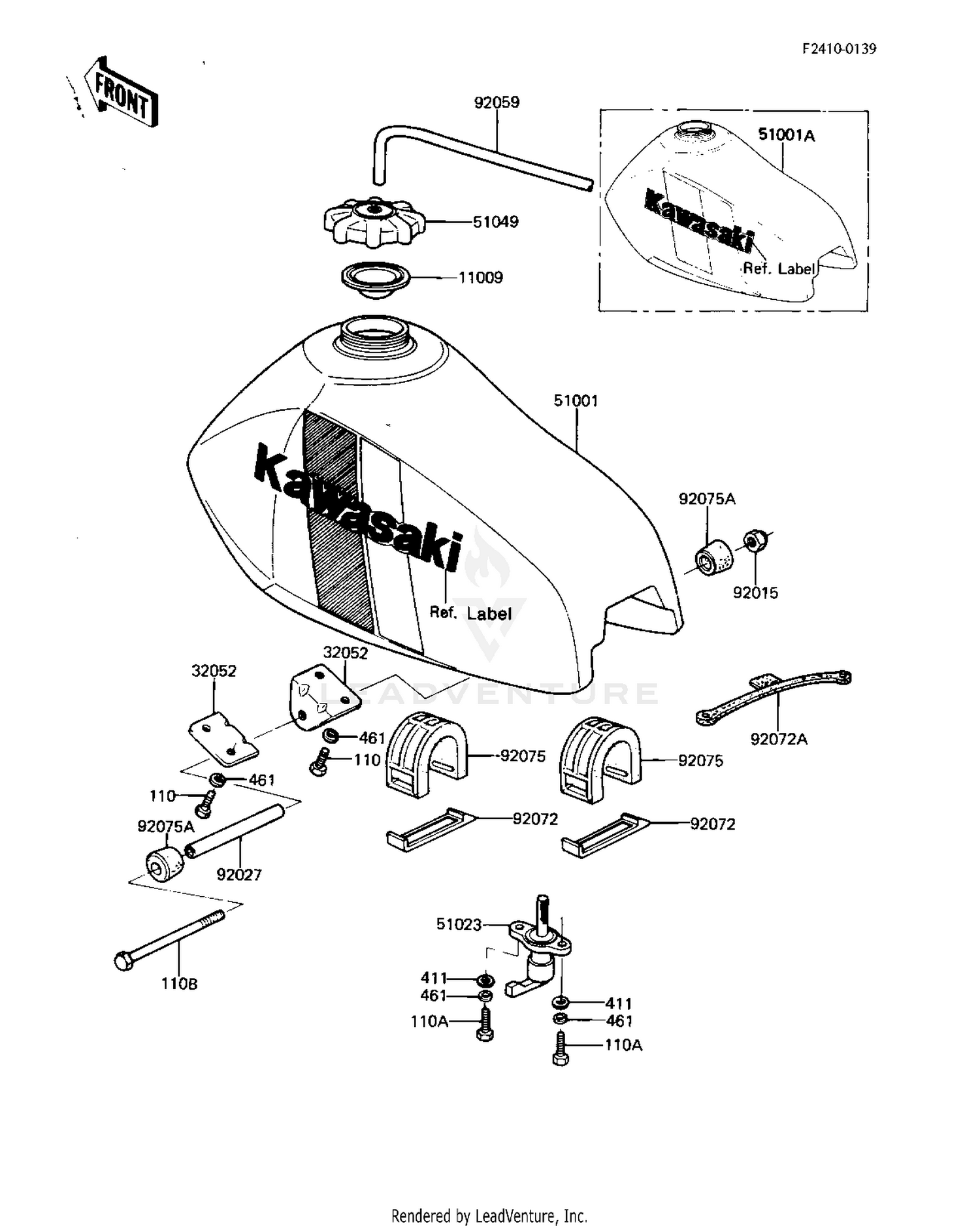

Fuel Tank Diagram

Item	MSRP	Qty
#11009 GASKET,FUEL TANK 11009-1452	$21.78
Available to order. Add to View Price
#32052 BRACKET,FUEL TANK 32052-1051	$7.62
Available to order. Add to View Price
#51001 TANK-FUEL,L.GREEN 51001-1056-6W	$319.56
Available to order. Add to View Price
#51001A TANK-COMP-FUEL,L.GREE 51001-5250-6W	$417.90
Available to order. Add to View Price
#51023 TAP-ASSY-FUEL 51023-1115	$48.28
Unavailable
#51049 CAP-TANK,FUEL 51049-1006	$32.07
Available to order. Add to View Price
#92015 NUT,LOCK,6MM 92019-008	$4.19
Available to order. Add to View Price
#92027 COLLAR,FUEL TANK 92027-1305	$4.12
Available to order. Add to View Price
#92059 TUBE,5X9.4X250 92059-1258 Superseded by 92192-0753	$11.25
Available to order. Add to View Price
#92072 BAND,FUEL TANK 92072-1013	$3.55
Available to order. Add to View Price
#92072A BAND,SEAT 92072-1056	$9.69
Available to order. Add to View Price
#92075 DAMPER,FUEL TANK 92075-1151	$18.96
Available to order. Add to View Price
#92075A DAMPER,FUEL TANK FITT 92075-1220	$6.25
Available to order. Add to View Price
#110 BOLT-UPSET,6X10 112G0610 Superseded by 112BA0610	$0.58
Available to order. Add to View Price
#110A BOLT-UPSET,6X16 112G0616 Superseded by 112BA0616	$1.14
Available to order. Add to View Price
#110B BOLT 6X90 110G0690	$5.14
Available to order. Add to View Price
#411 WASHER-PLAIN,6MM 411B0600 Superseded by 411AA0600	$2.84
Available to order. Add to View Price
#461 WASHER-SPRING,6MM 461F0600 Superseded by 461DA0600	$0.69
Available to order. Add to View Price
