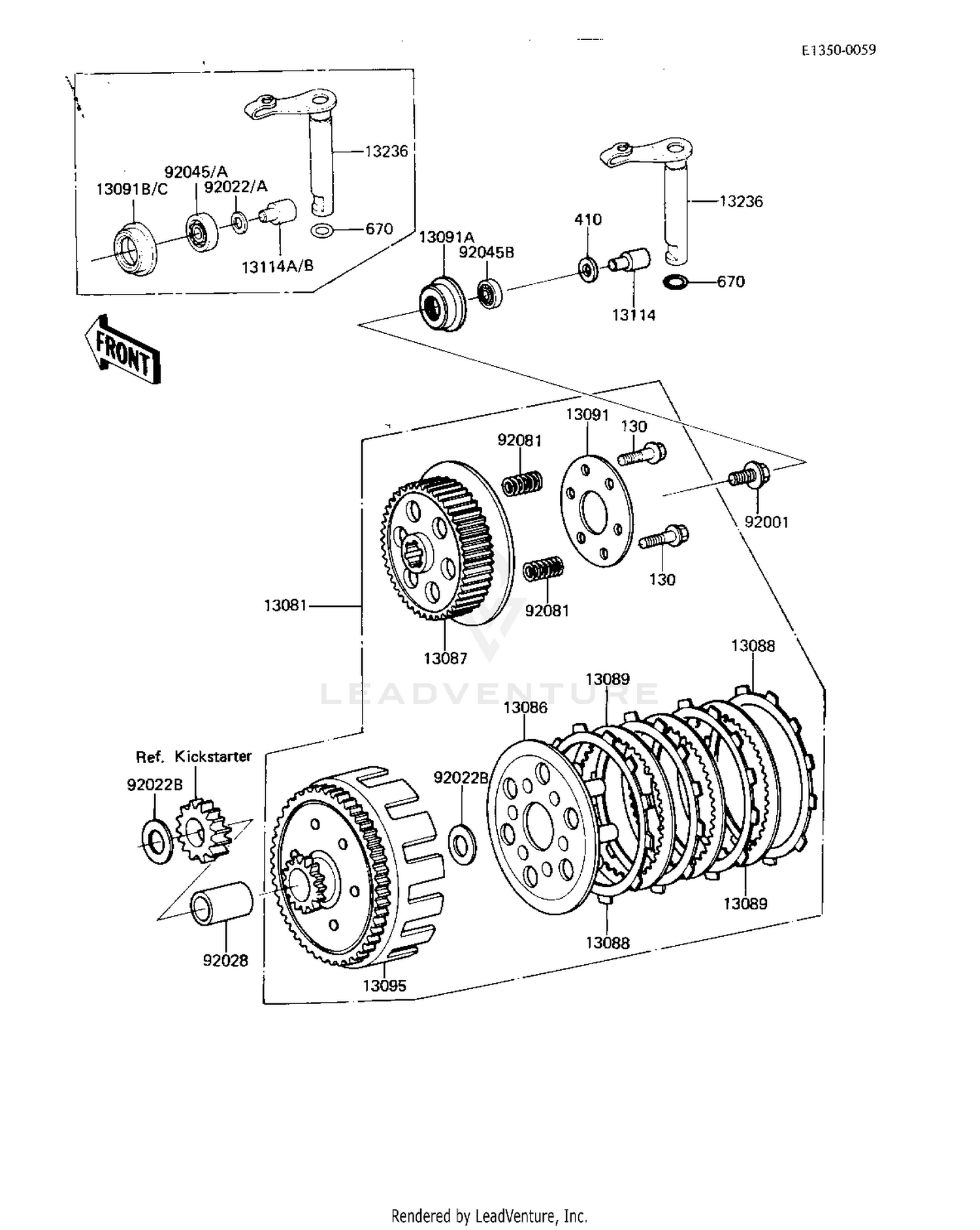

1983 Kawasaki KDX80B CLUTCH OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13081
CLUTCH-ASSY
13081-1078
|
$310.73 | ||
|
Available to order. Add to View Price |
|||
|
#13086
WHEEL-CLUTCH
13086-1002
|
$42.03 | ||
|
Available to order. Add to View Price |
|||
|
#13087
HUB-CLUTCH
13087-1051
|
$58.49 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-1010
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE-CLUTCH,STEEL
13089-1009
|
$13.55 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,CLUTCH SPRING
13091-1115
|
$17.24 | ||
|
Available to order. Add to View Price |
|||
|
#13091A
HOLDER,CLUTCH PUSHER
13091-1038
Superseded by 13091-1133
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#13091B
HOLDER,CLUTCH PUSHER
13091-1133
|
$10.88 | ||
|
Unavailable |
|||
|
#13091C
HOLDER,CLUTCH PUSHER
13091-1133
|
$10.88 | ||
|
Unavailable |
|||
|
#13095
HOUSING,CLUTCH
13095-1044
|
$178.81 | ||
|
Available to order. Add to View Price |
|||
|
#13114
PUSHER,CLUTCH
13114-1004
|
$31.24 | ||
|
Available to order. Add to View Price |
|||
|
#13114A
PUSHER,CLUTCH
13114-1008
|
$19.88 | ||
|
Unavailable |
|||
|
#13114B
PUSHER,CLUTCH
13114-1008
|
$19.88 | ||
|
Unavailable |
|||
|
#13236
LEVER-COMP,CLUTCH REL
13236-1048
|
$29.66 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,10X14
92001-1433
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,7X12.5X0.8
92022-1290
Superseded by 92200-1197
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,7X12.5X0.8
92022-1290
Superseded by 92200-1197
|
$3.59 | ||
|
Unavailable |
|||
|
#92022B
WASHER,17.3X28X1
92022-255
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,17X22X21.1
92028-1149
|
$27.68 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,627
92045-026
Superseded by 92045-1236
|
$19.07 | ||
|
Available to order. Add to View Price |
|||
|
#92045A
BEARING-BALL,627
92045-026
Superseded by 92045-1236
|
$19.07 | ||
|
Unavailable |
|||
|
#92045B
BEARING-BALL,626MC3
92045-1211
Superseded by 92045-1304
|
$11.35 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,CLUTCH
92081-1175
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,5X20
130P0520
Superseded by 130CA0520
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,9MM
670B1509
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
