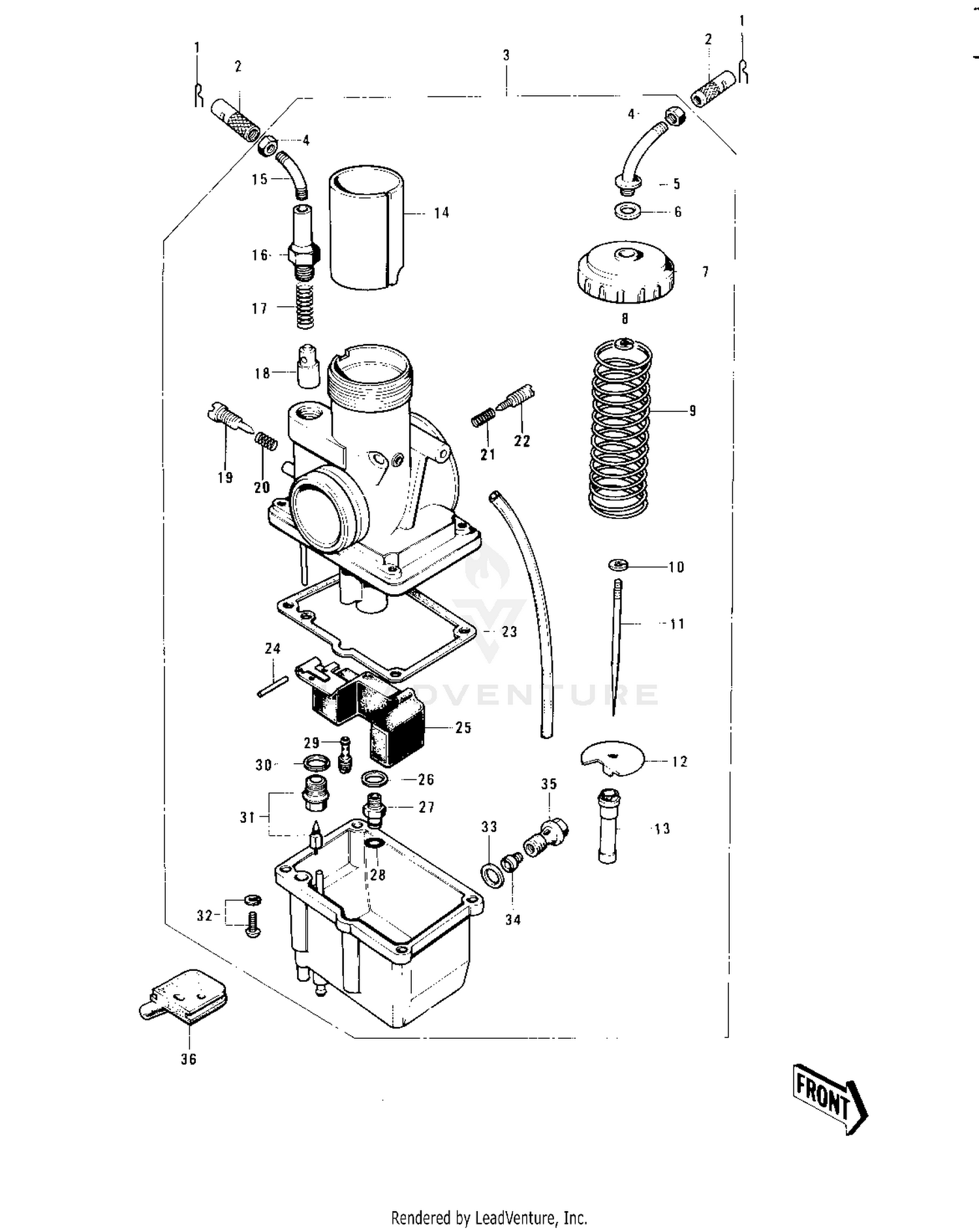

1977 Kawasaki KE125 CARBURETOR ('74-'75) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING-SNAP
92036-018
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
CABLE ADJUSTER
16002-007
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
CARBURETOR ASSY
16001-199
|
$312.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT CABLE ADJUST LOCK
16003-004
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE,CABLE
16077-011
|
$20.06 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET,CABLE GUIDE
16029-007
|
$9.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP,MIXING CHAMBER
16004-024
|
$15.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP,CABLE GUIDE
16008-011
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING,THROTTLE VALVE
16006-029
|
$23.92 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
16008-010
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET NEEDLE 4EJ3
16009-040
|
$47.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAT-SPRING,THROTTLE VALVE
16007-023
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE JET,O-4
16017-085
|
$32.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE,THROTTLE
16025-079
|
$69.28 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE,CABLE
16077-010
|
$20.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP,STARTER PLUNGER
16012-017
|
$21.59 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING-PLUNGER
16013-003
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUNGER-ENRICHNER
16016-002
|
$28.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW,THROTTLE STOP
16021-023
|
$21.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING THR STOP SCREW
16022-005
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING,PILOT AIR SCREW
16022-007
|
$7.63 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW PILOT AIR ADJST
16014-002
|
$17.07 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET,FLOAT CHAMBER
16019-023
|
$18.26 | ||
|
Available to order. Add to View Price |
|||
|
#24
FLOAT PIN
16032-006
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#25
FLOAT
16031-026
|
$62.93 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER MAIN JET
16034-001
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER-NEEDLE JET
16065-008
|
$21.51 | ||
|
Available to order. Add to View Price |
|||
|
#28
RING-O
92055-044
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#29
JET-PILOT,#30
92064-022
|
$15.85 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET,FLOAT VALVE SEAT
16029-004
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#31
FLOAT VALVE ASSY,#2.6
16030-025
|
$116.53 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW-PAN-WS-CROS,4X14
223B0414
Superseded by 223AA0414
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET-BANJO BOLT
16034-005
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#34
MAIN JET,#A100
92063-1033
|
$25.11 | ||
|
Available to order. Add to View Price |
|||
|
#34
MAIN JET,#A97.5R
92063-063
Superseded by 92063-1035
|
$13.68 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT-BANJO
92001-097
|
$21.88 | ||
|
Available to order. Add to View Price |
|||
|
#36
GROMMET,OVERFLOW
16136-009
|
$10.57 | ||
|
Available to order. Add to View Price |
|||
