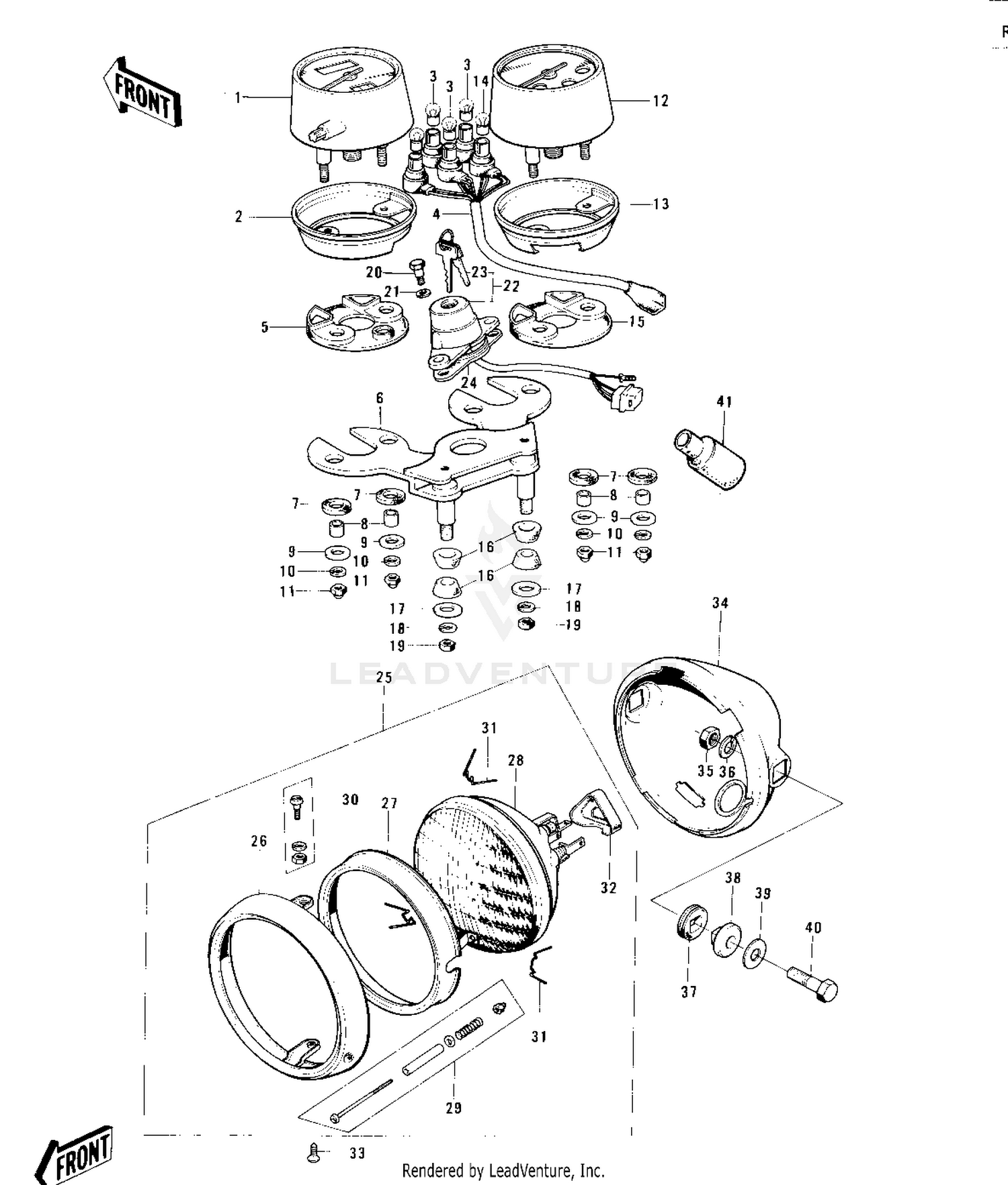

1977 Kawasaki KE125 METERS/IGNITION SWITCH/HEADLIGHT ('76-'7 OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSY,MPH
25005-110
|
$229.19 | ||
|
Available to order. Add to View Price |
|||
|
#1
*** N.L.A.*** (Canada)
25005-112
|
$215.56 | ||
|
Unavailable |
|||
|
#2
COVER-SPEEDOMETER
25012-017
|
$33.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB 6V 1.5W
92069-024
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
SOCKET,SPEEDOMETER
25011-038
|
$43.46 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHOCK DAMPER,METER
25019-018
|
$10.74 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET,METER
25008-034
|
$63.57 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER RUBBER,METER
25019-019
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR,METER FITTING
25021-004
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER PL 5.2X18X1.2
92022-285
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT-CAP,5MM
322N0500
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
TACHOMETER ASSY
25015-027
|
$227.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER,TACHOMETER
25012-018
|
$31.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB-6V 3W
92069-053
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER RUBBER,METER
25019-020
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER RUBBER,METER
92075-248
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER,6.5X22X1.6
92022-237
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT-HEX HEAD,6MM
92007-026
|
$10.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#22
SWITCH ASSY.IGNITION
27005-059
|
$50.34 | ||
|
Available to order. Add to View Price |
|||
|
#22
SWITCH ASSY,IGNITION
27005-1023
|
$63.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
SWITCH ASSY,IGNITION
27005-080
|
$48.06 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY SET #431
27008-054-31
|
$21.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY SET,#450
27008-054-50
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY,BLANK
27008-1024
|
$20.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY,BLANK
27008-1025
|
$20.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY,BLANK
27008-1026
|
$17.36 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY,BLANK
27008-1027
|
$16.56 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER RUBBER
92075-077
|
$8.92 | ||
|
Available to order. Add to View Price |
|||
|
#25
LAMP UNIT,HEAD
23003-021
|
$137.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
RIM,HEAD LAMP
23006-042
|
$60.27 | ||
|
Available to order. Add to View Price |
|||
|
#27
RETAINER,SEALED BEAM
23072-002
|
$36.19 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEALED BEAM UNIT
23007-055
|
$64.64 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW ASSY,FOCUS AJST
23013-5001
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW SET,LENS UNIT
23013-007
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLAMP,HEAD LAMP LENS
23009-015
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER,HD LAMP SOCKET
23081-001
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW-PAN-CROS,5X12
23019-025
Superseded by 220AA0512
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#34
BODY,HEAD LAMP,F.BLAK
23005-050-21
|
$62.84 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#37
DAMPER RUBBER
23066-011
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#38
COLLAR
23052-005
|
$14.07 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER
411D1000
Superseded by 92200-1313
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT,HEX HEAD,10X30
92007-041
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#41
COVER,WIRING HARNESS
26009-008
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
