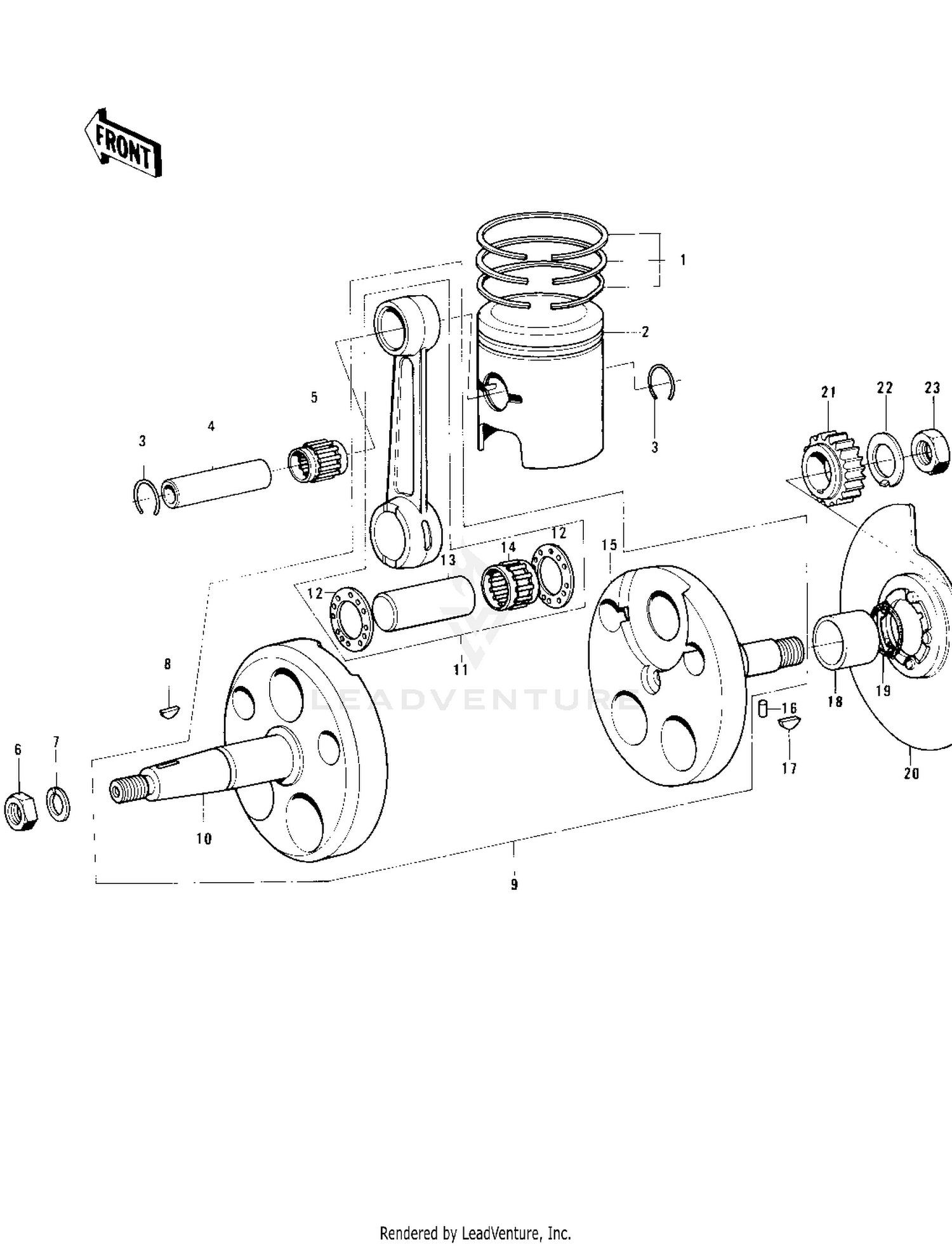

1977 Kawasaki KE125 CRANKSHAFT/PISTON/ROTARY VALVE ('74-'75) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING SET,PISTON STD
13008-050
Superseded by 13008-5001
|
$40.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON,STD
13001-072
|
$105.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP PISTON PIN
92036-003
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN-PISTON
13002-1002
|
$27.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRG,N,UR14/20AP-1
13033-035
|
$28.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
KEY-WOODRUFF
510A3200
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
CRANK AND CONROD ASSY
13031-1003
|
$516.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
CRANKSHAFT,L.H
13037-059
|
$208.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
CONNECTING ROD SET
13044-5003
|
$194.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER SIDE
92025-005
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
CRANK PIN
13035-033
|
$30.86 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRG,NEEDLE,KT202715EG
13034-1001
|
$35.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
CRANKSHAFT,R.H.
13037-1084
|
$122.68 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROLLER,4X10
610A0410
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#17
WOODRUFF KEY PRY PINI
92038-003
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR,R.H CRANKSHAFT
92027-220
|
$43.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
O RING,16MM
670B2016
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
VALVE,ROTARY DISC
12001-025
|
$76.61 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR,PRIMARY 22T
13097-1040
|
$132.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER LOCK 12MM
92024-003
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT 12MM
92015-006
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
