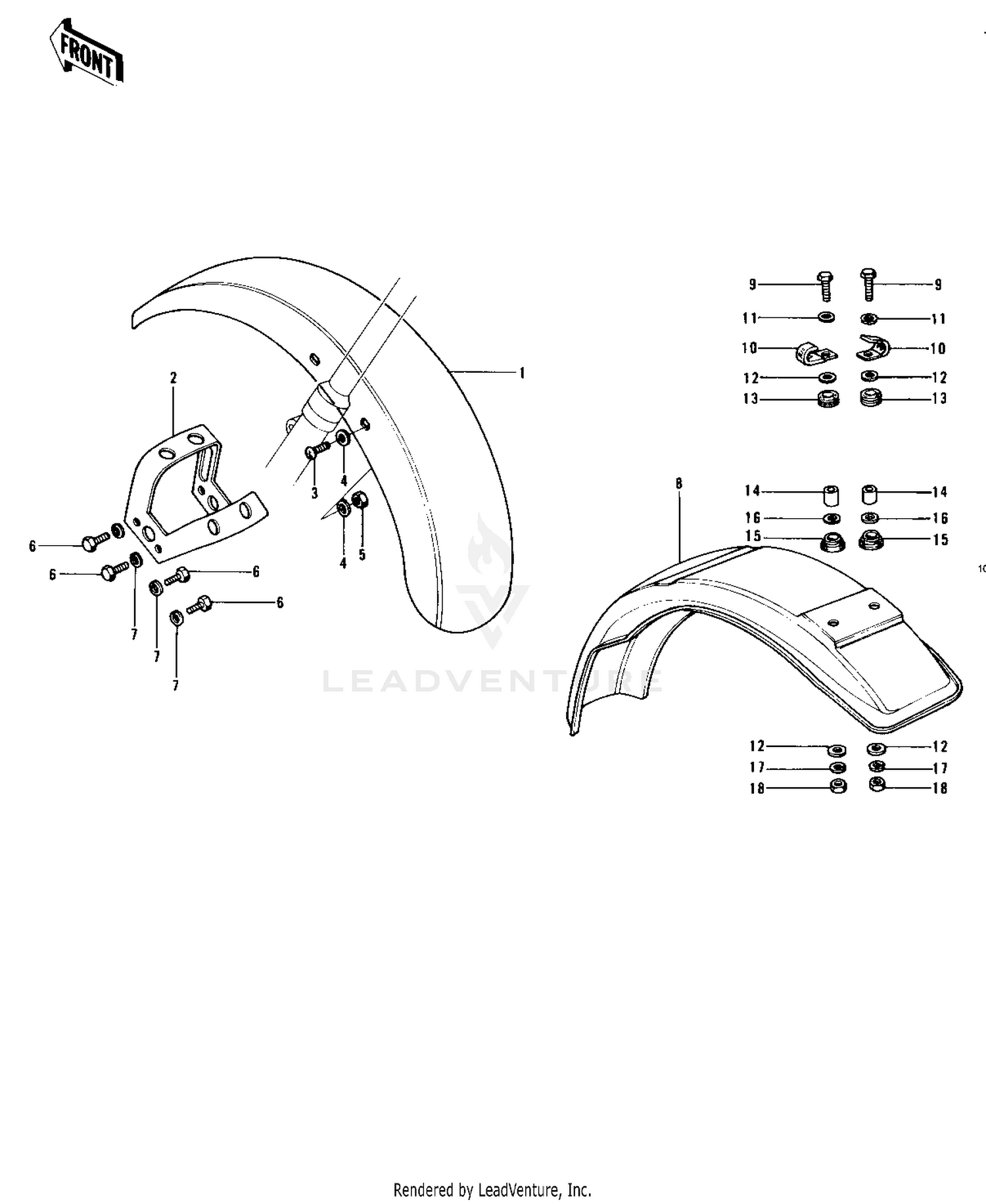

Fenders ('73-'75 D/e/f & '76 A8) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER-FR
35004-076
|
$262.59 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER-FR
35004-085
|
$108.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACE-FRONT FENDER
35009-025
|
$42.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACE,FRONT FENDER
35009-029
|
$64.57 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW PAN HEAD 6X14
220E0614
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT,LOCK,6MM
92019-008
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT-SMALL-UPSET
115G0816
Superseded by 115BA0816
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
FENDER-RR
35022-076
|
$30.77 | ||
|
Unavailable |
|||
|
#9
BOLT-HEX HEAD,6X32
110N0632
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP,HARNESS
92037-113
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Unavailable |
|||
|
#12
WASHER,7X24X1.6
92022-228
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER RUBBER,RR FEND
92075-121
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR,6.8X10X12
92027-162
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER RUBBER,RR FEND
92075-133
|
$11.14 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER,7X28X1.6
92022-227
Superseded by 92022-1282
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
