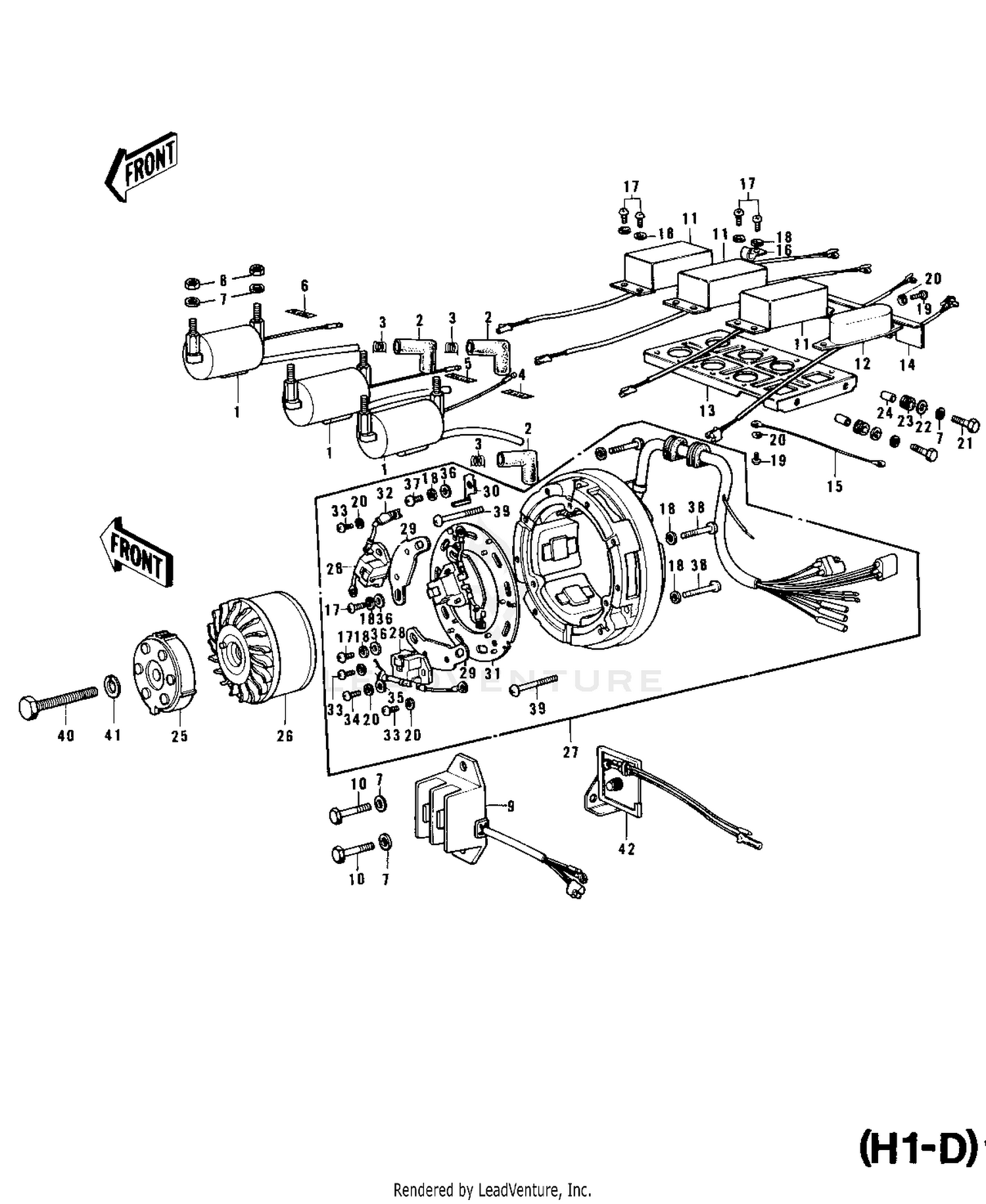

Ignition/generator/regulator (h1-d) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL-IGNITION
21121-064
|
$126.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP SPARK PLUG
21130-009
|
$21.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING-SPARK PLUG CAP
92101-001
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
LABEL,LEFT
21168-001
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL,CENTER
21168-002
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
LABEL,RIGHT
21168-003
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
REGULATOR
21066-1036
|
$372.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT-UPSET,6X16
112G0616
Superseded by 112BA0616
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
IGNITION UNIT A
21119-016
|
$296.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
IGNITION UNIT B
21120-006
|
$653.01 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE,IGNITION UNIT
21155-005
|
$26.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE
21155-004
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE-LEAD
21045-009
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP-WIRE
21098-009
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-PAN-CROS,5X10
220B0510
Superseded by 220AA0510
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-PAN CROS,4X6
220B0406
Superseded by 220AA0406
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT-UPSET
112G0618
Superseded by 112BA0618
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER
92075-051
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
92027-103
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#25
ROTOR-S.G
21007-021
|
$289.27 | ||
|
Available to order. Add to View Price |
|||
|
#26
ROTOR
21007-024
|
$236.38 | ||
|
Available to order. Add to View Price |
|||
|
#27
YOKE ASSY
21076-015
|
$461.42 | ||
|
Available to order. Add to View Price |
|||
|
#28
PICK UP
21152-003
|
$140.28 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE-PICK UP
21156-002
|
$12.77 | ||
|
Available to order. Add to View Price |
|||
|
#30
POINTER-IGN TIMING
21020-002
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLATE-YOKE
21155-002
|
$29.51 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP-LEAD WIRE
21098-008
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW-PAN-CROS,4X10
220B0410
Superseded by 220AA0410
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER-PLAIN-SMALL,4MM
410B0400
Superseded by 410AA0400
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER-PLAIN-SMALL
411B0500
Superseded by 410AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW-PAN-CROS,5X12
220B0512
Superseded by 220AA0512
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW-PAN-CROS
220B0535
Superseded by 220AA0535
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW-PAN-CROS
220B0540
Superseded by 220AA0540
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT FLANGED,8X70
92001-1583
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#42
RECTIFIER
21061-014
|
$55.62 | ||
|
Available to order. Add to View Price |
|||
