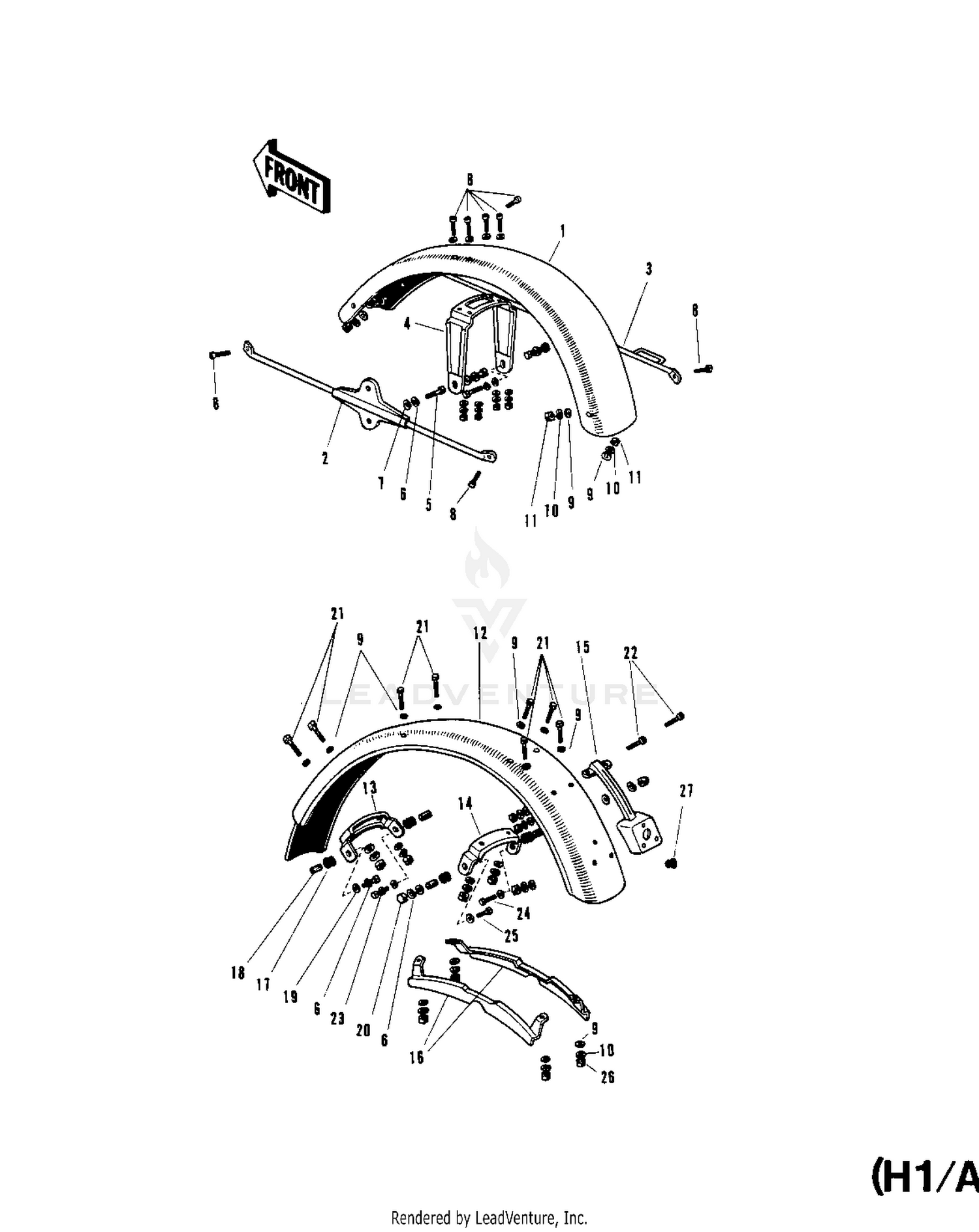

Fenders (h1/a/c) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER-FR
35004-036
|
$221.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY FRONT FENDER L.H
35011-018
|
$32.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY FRONT FENDER R.H
35011-017
|
$49.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACE FRONT FENDER
35009-012
|
$40.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT-SMALL-UPSET,8X14
115B0814
Superseded by 115AA0814
|
$0.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW PAN HEAD 6X12
220E0612
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT-HEX
312B0600
Superseded by 312AA0600
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
FENDER-RR
35022-045
|
$136.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET REAR FENDER
35025-009
|
$22.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET REAR FENDER
35025-010
|
$24.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY TAIL LAMP
35031-004
|
$25.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
SUPPORTER REAR FENDER
35034-007
|
$23.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER RUBB TANK FRNT
92075-019
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER FUEL TANK MONT
51065-001
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER,8X26X2.3
92022-1564
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT FUEL TANK FRONT
92020-007
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT-SMALL-UPSET,8X22
115B0822
|
$4.12 | ||
|
Unavailable |
|||
|
#24
BOLT,10X45
92001-1182
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT,8X55
92001-1386
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG RUBBER
92074-005
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
