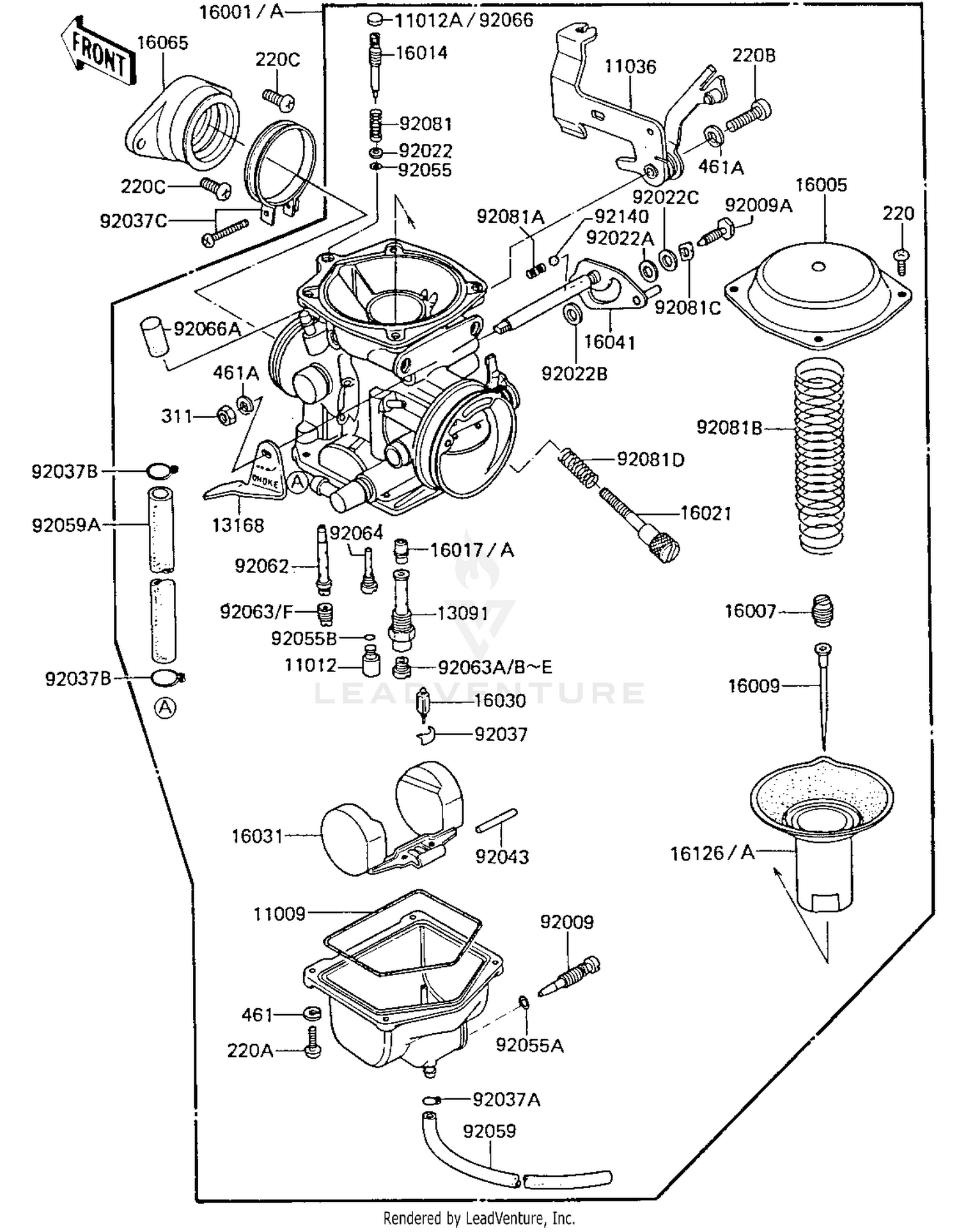

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
O RING,FLOAT BALL
16019-024
|
$24.38 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,POLYESTER
11012-1128
|
$22.21 | ||
|
Unavailable |
|||
|
#11012A
CAP,PILOT AIR SCREW (Canada)
11012-1289
|
|||
|
Unavailable |
|||
|
#11036
BRACKET-A,THROTTLE CA
11036-1933
|
$43.21 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,NEEDLE JET
13091-1050
|
$28.19 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER,CHOKE
13168-1065
|
$14.05 | ||
|
Available to order. Add to View Price |
|||
|
#16001
CARBURETOR (Canada)
16001-1779
|
|||
|
Unavailable |
|||
|
#16001A
CARBURETOR
16001-1780
|
$348.54 | ||
|
Available to order. Add to View Price |
|||
|
#16005
TOP,MIXING CHAMBER
16005-1012
|
$39.11 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SCREW,NEEDLE SET
16007-1022
|
$13.56 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET,NO1B
16009-1138
|
$32.47 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW,PILOT ADJUST
16014-1011
|
$15.68 | ||
|
Available to order. Add to View Price |
|||
|
#16017
NEEDLE JET
16017-1059
|
$47.22 | ||
|
Available to order. Add to View Price |
|||
|
#16017A
UNAVAILABLE IN PRICE BOOK
16017-1061
|
|||
|
Unavailable |
|||
|
#16021
SCREW,THROTTLE STOP
16021-1031
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1007
|
$46.13 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1001
|
$61.81 | ||
|
Available to order. Add to View Price |
|||
|
#16041
SHAFT-CARBURETOR,CHOK
16041-1030
|
$49.52 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1063
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE
16126-1057
|
$172.09 | ||
|
Available to order. Add to View Price |
|||
|
#16126A
VALVE
16126-1057
|
$172.09 | ||
|
Unavailable |
|||
|
#92009
SCREW,DRAIN,M6X1.0
92009-1095
Superseded by 92009-1434
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,LINK SHAFT
92009-1183
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,PLAIN
92022-1003
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.1X11X0.8,POLYACETAL
92022-1199
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,6.4X9.4X0.8,PL
92022-1200
|
$4.23 | ||
|
Available to order. Add to View Price |
|||
|
#92022C
WASHER,6.5X11X1.2,STL
92022-1207
|
$4.23 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-1142
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,TUBE
92037-1682
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP,53M/M
92037-201
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#92043
FLOAT PIN
92043-1002
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,PILOT ADJUST
92055-1002
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1053
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
O RING
92055-1088
|
$20.64 | ||
|
Available to order. Add to View Price |
|||
|
#92059
HOSE,FUEL OVERFLOW
92059-1046
|
$16.80 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,5.3X10.5X140
92059-1267
|
$19.38 | ||
|
Available to order. Add to View Price |
|||
|
#92062
NOZZLE,MAIN
92062-1001
|
$26.83 | ||
|
Available to order. Add to View Price |
|||
|
#92063
MAIN JET,PRI,#68
92063-1050
|
$19.17 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,#118
92063-1071
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN #110
92063-1114
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#108
92063-1116
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,#112
92063-1117
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,#115
92063-1118
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063F
JET-MAIN,PRI,#72
92063-1193
|
$13.61 | ||
|
Available to order. Add to View Price |
|||
|
#92064
PILOT JET,#35
92064-1001
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92066A
PLUG,12X25
92068-006
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,PILOT ADJUST SCREW
92081-1002
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,SHAFT STOP
92081-1249
Superseded by 92081-1619
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING
92081-1257
|
$25.22 | ||
|
Available to order. Add to View Price |
|||
|
#92081C
SPRING,WAVED WASHER
92081-1262
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#92081D
SPRING,STOP SCREW
92081-1545
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#92140
BALL,STEEL,3/16"
92140-1004
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,4X12
220B0412
Superseded by 220AA0412
|
$0.21 | ||
|
Available to order. Add to View Price |
|||
|
#220B
SCREW-PAN-CROS
220B0520
Superseded by 220AA0520
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220C
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,5MM
311B0500
Superseded by 311AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#164A
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
