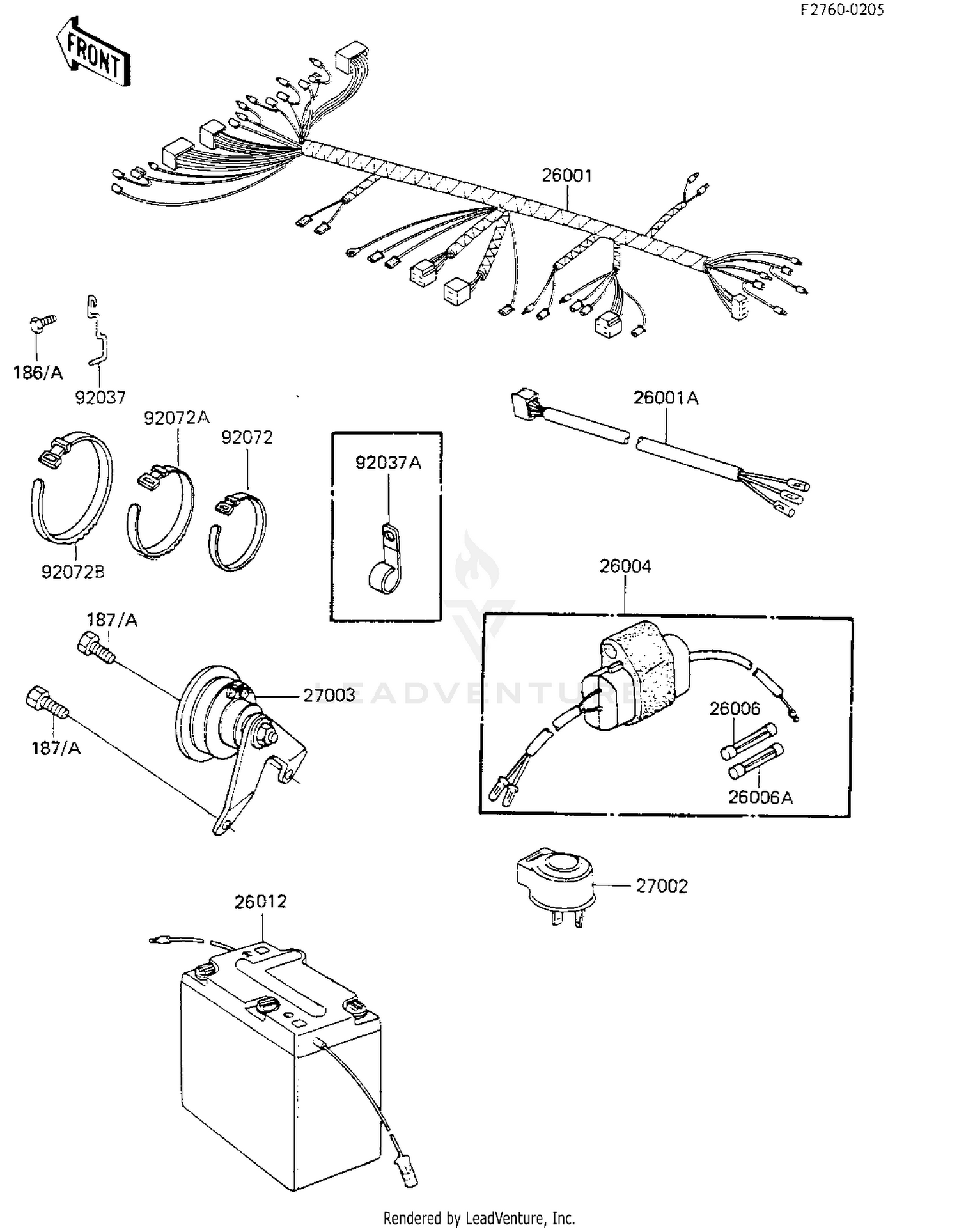

Chassis Electrical Equipment Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#26001
HARNESS,MAIN
26001-1421
|
$136.43 | ||
|
Available to order. Add to View Price |
|||
|
#26001A
WIRING HARNESS,TL LMP
26002-046
|
$17.35 | ||
|
Unavailable |
|||
|
#26004
FUSE ASSY
26004-1010
|
$32.55 | ||
|
Available to order. Add to View Price |
|||
|
#26006
FUSE,GLASS TUBE,6.4X30,10
26006-1002
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26006A
FUSE,GLASS TUBE,6.4X30,15
26006-1003
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#26012
YUA BAT 6N6-1D-2
K26012-034
|
$43.95 | ||
|
Available to order. Add to View Price |
|||
|
#27002
RELAY-TURN SIGNAL
27002-013
|
$46.53 | ||
|
Available to order. Add to View Price |
|||
|
#27003
HORN
27003-1008
|
$51.82 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,HEAD LAMP HARNS
92037-1062
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,HARNESS
92037-113
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=123
92072-030
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=149
92072-031
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072B
BAND,L=218
92072-032
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#186
BOLT-UPSET-WP
186B0612
Superseded by 186AA0612
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#186A
BOLT-UPSET-WP
186C0612
Superseded by 186AB0612
|
$0.96 | ||
|
Available to order. Add to View Price |
|||
|
#187
BOLT-UPSET-WSP
187B0616
Superseded by 187AA0616
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#187A
BOLT-UPSET-WSP
187D0616
Superseded by 187AA0616
|
$1.22 | ||
|
Unavailable |
|||
