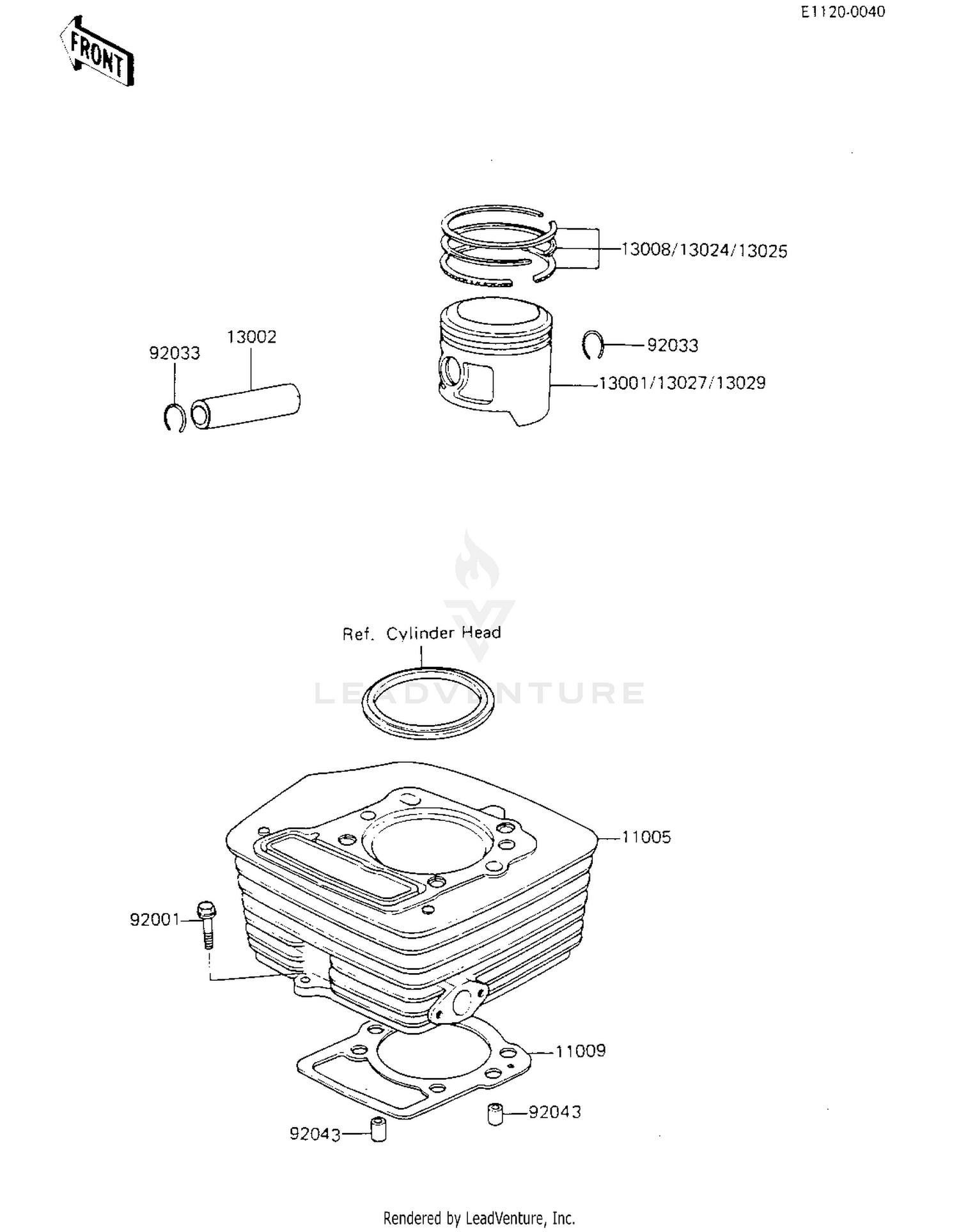

Cylinder/piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11005
CYLINDER-ENGINE
11005-1331
|
$381.44 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,CYLINDER BASE
11009-043
Superseded by 11060-1366
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#13001
PISTON-ENGINE,STD
13001-1101
Superseded by 13001-1230
|
$104.65 | ||
|
Available to order. Add to View Price |
|||
|
#13002
PIN-PISTON
13002-1013
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#13008
RING-SET-PISTON
13008-1011
|
$68.61 | ||
|
Available to order. Add to View Price |
|||
|
#13024
RING-SET PISTON LL,0/
13024-1014
|
$73.13 | ||
|
Available to order. Add to View Price |
|||
|
#13025
RING-SET PISTON L,O/S
13025-1014
|
$68.61 | ||
|
Available to order. Add to View Price |
|||
|
#13027
PISTON-ENGINE LL,O/S
13027-1047
|
$115.43 | ||
|
Available to order. Add to View Price |
|||
|
#13029
PISTON-ENGINE L,O/S 0
13029-1048
|
$88.48 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT
92003-202
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,PISTON PIN
92036-021
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,DOWEL,10X14
92043-1037
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
