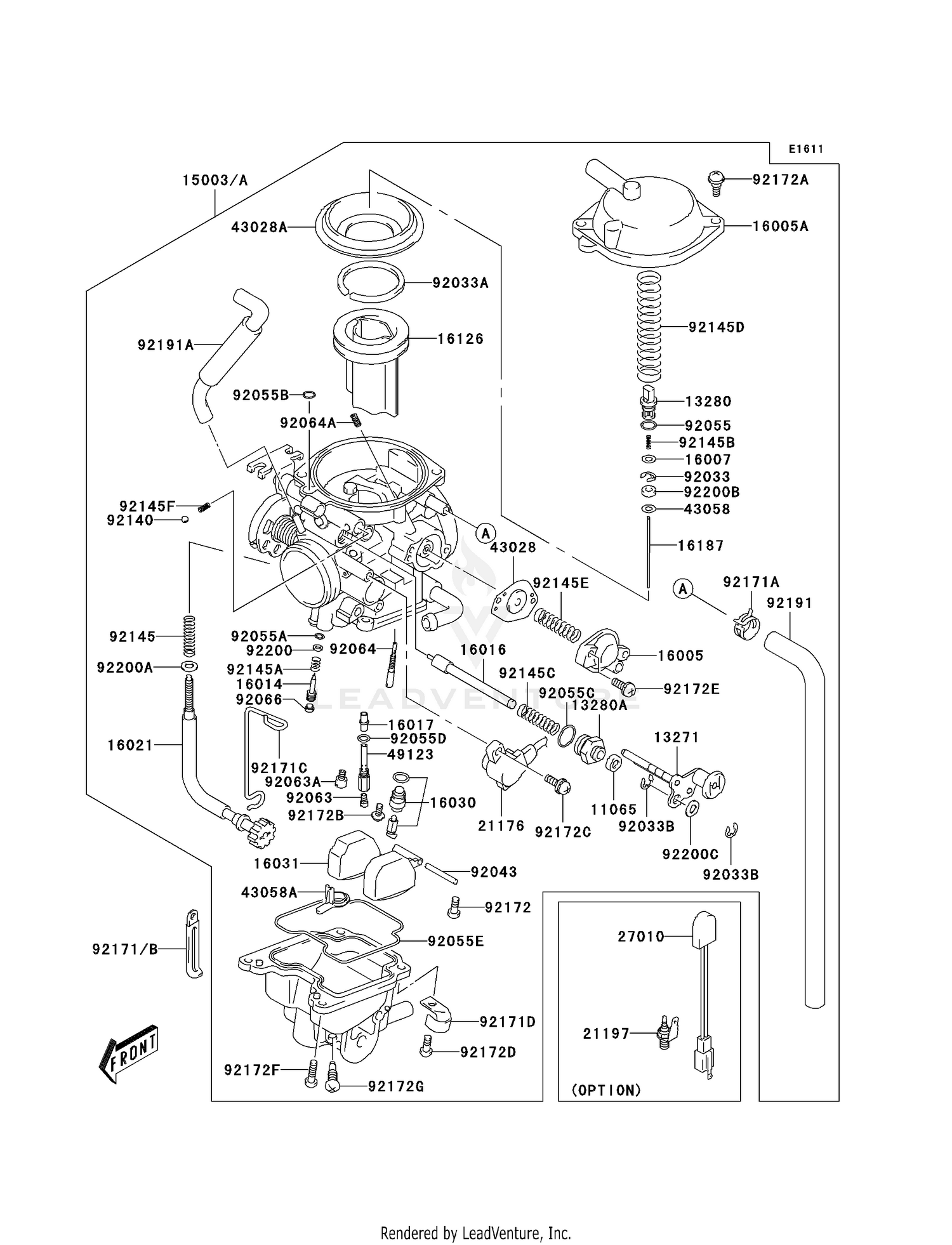

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11065
CAP
11065-S031
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#13271
PLATE
13271-S056
|
$58.62 | ||
|
Available to order. Add to View Price |
|||
|
#13280
HOLDER
13280-S002
|
$7.00 | ||
|
Available to order. Add to View Price |
|||
|
#13280A
HOLDER
13280-S021
|
$11.01 | ||
|
Available to order. Add to View Price |
|||
|
#15003
CARBURETOR-ASSY
15003-S010
Superseded by 15003-S028
|
$578.54 | ||
|
Available to order. Add to View Price |
|||
|
#15003A
CARBURETOR-ASSY
15003-S013
Superseded by 15003-S025
|
$578.54 | ||
|
Available to order. Add to View Price |
|||
|
#16005
TOP-CHAMBER
16005-S004
|
$31.16 | ||
|
Available to order. Add to View Price |
|||
|
#16005A
TOP-CHAMBER,DIAPHRAGM
16005-S007
|
$37.95 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SEAT-SPRING
16007-S005
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-S006
|
$11.59 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER
16016-S008
|
$27.68 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE
16017-S007
|
$43.45 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-S006
|
$52.58 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-S008
Superseded by 16030-S012
|
$65.97 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-S006
|
$33.25 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE
16126-S010
|
$66.11 | ||
|
Available to order. Add to View Price |
|||
|
#16187
NEEDLE-JET
16187-S009
|
$18.10 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR
21176-S001
Superseded by 21176-S029
|
$116.86 | ||
|
Available to order. Add to View Price |
|||
|
#21197
HEATER,CARBURETOR
21197-S003
|
$33.47 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,CARB HEATER
27010-S001
|
$48.68 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-S008
Superseded by 43028-S016
|
$25.65 | ||
|
Available to order. Add to View Price |
|||
|
#43028A
DIAPHRAGM
43028-S011
Superseded by 43028-S017
|
$31.98 | ||
|
Available to order. Add to View Price |
|||
|
#43058
RING
43058-S001
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#43058A
RING
43058-S007
Superseded by 43058-S008
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#49123
HOLDER-MAIN JET
49123-S006
|
$32.49 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,MULTIPLE JE
92033-S008
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP
92033-S041
|
$6.34 | ||
|
Available to order. Add to View Price |
|||
|
#92033B
RING-SNAP
92033-S046
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN
92043-S034
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,ID:4.8
92055-S003
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-S013
Superseded by 92055-S124
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O
92055-S044
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
|
#92055C
RING-O
92055-S048
Superseded by 92055-S121
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#92055D
RING-O
92055-S049
Superseded by 92055-S125
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#92055E
RING-O
92055-S058
|
$11.14 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN,142.5
92063-S010
|
$14.02 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,62.5
92063-S011
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#22.5
92064-S008
|
$16.00 | ||
|
Available to order. Add to View Price |
|||
|
#92064A
JET-PILOT,165
92064-S009
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-S027
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#92140
BALL
92140-S005
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,THROTTLE SCREW
92145-S009
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING,THROTTLE SCREW
92145-S010
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#92145B
SPRING
92145-S097
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#92145C
SPRING
92145-S113
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#92145D
SPRING
92145-S125
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#92145E
SPRING
92145-S126
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92145F
SPRING
92145-S127
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,L=95
92171-S012
Superseded by 92171-S047
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-S019
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#92171B
CLAMP,WIRING HARNESS
92171-S081
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#92171C
CLAMP
92171-S110
|
$17.11 | ||
|
Available to order. Add to View Price |
|||
|
#92171D
CLAMP
92171-S111
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW
92172-S002
Superseded by 92172-S297
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#92172A
SCREW
92172-S047
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#92172B
SCREW
92172-S048
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92172C
SCREW
92172-S049
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#92172D
SCREW
92172-S057
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#92172E
SCREW
92172-S139
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#92172F
SCREW
92172-S145
Superseded by 92172-S374
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#92172G
SCREW
92172-S199
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE,AIR VENT
92191-S069
|
$34.44 | ||
|
Available to order. Add to View Price |
|||
|
#92191A
TUBE,4.5X8X400
92191-S076
|
$24.47 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-S019
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-S021
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER
92200-S083
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#92200C
WASHER
92200-S181
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
