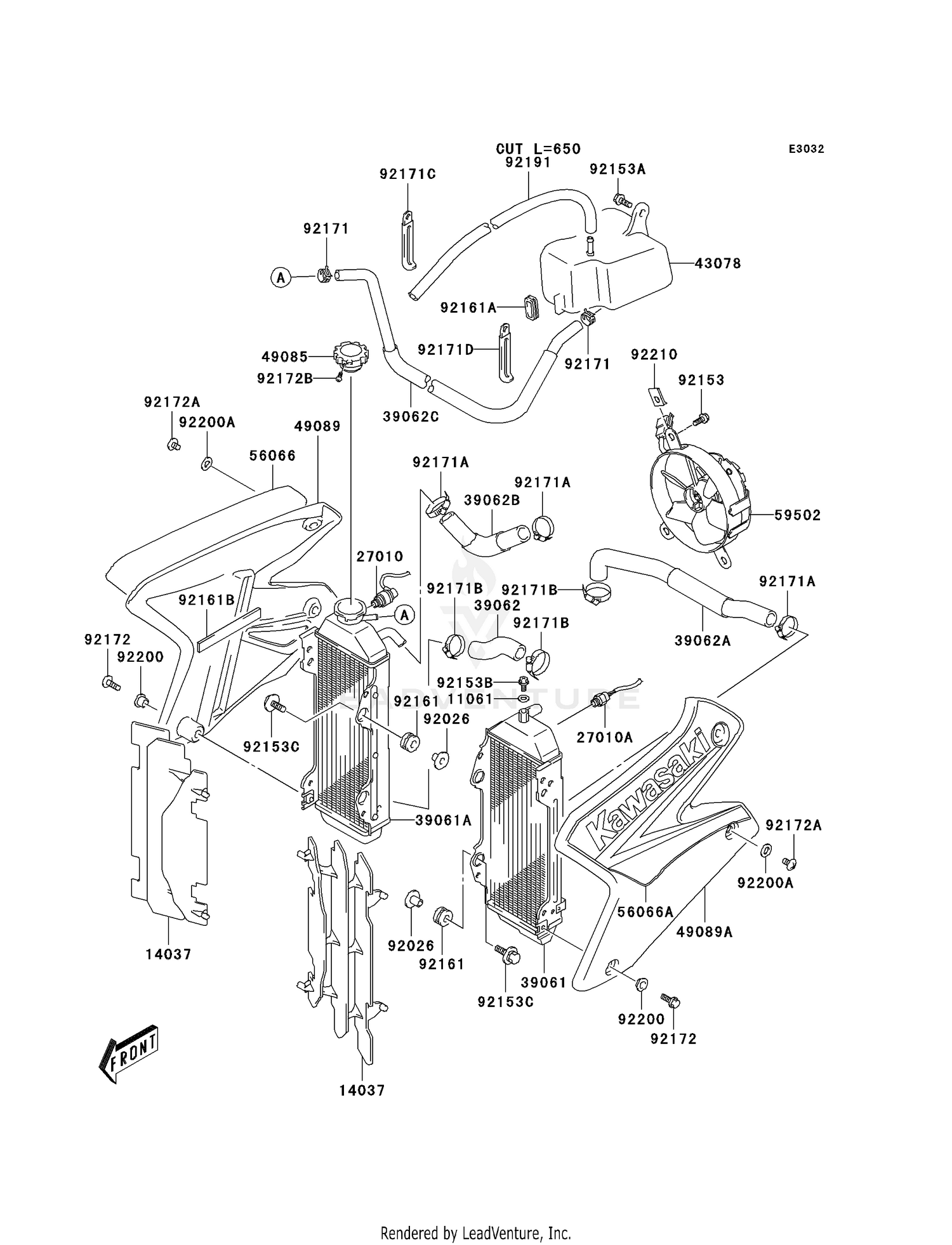

2003 Kawasaki KLX 400SR RADIATOR (KLX400-A1) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11061
GASKET
11061-S002
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#14037
SCREEN
14037-S001
|
$21.43 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,WATER TEMP
27010-S029
|
$92.58 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,FAN
27010-S030
|
$89.36 | ||
|
Available to order. Add to View Price |
|||
|
#39061
RADIATOR-ASSY,LH
39061-S004
Superseded by 39061-S013
|
$417.02 | ||
|
Available to order. Add to View Price |
|||
|
#39061A
RADIATOR-ASSY,RH
39061-S005
Superseded by 39061-S014
|
$453.81 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING,INLET
39062-S020
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#39062A
HOSE-COOLING,OUTLET
39062-S021
|
$42.26 | ||
|
Available to order. Add to View Price |
|||
|
#39062B
HOSE-COOLING,JOINT
39062-S022
|
$22.25 | ||
|
Available to order. Add to View Price |
|||
|
#39062C
HOSE-COOLING,RESERVOI
39062-S023
|
$17.71 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-S006
|
$51.06 | ||
|
Available to order. Add to View Price |
|||
|
#49085
CAP-ASSY-PRESSURE
49085-S003
|
$41.85 | ||
|
Available to order. Add to View Price |
|||
|
#49089
SHROUD-ENGINE,RH,L.GR
49089-S003-535
|
$67.62 | ||
|
Available to order. Add to View Price |
|||
|
#49089A
SHROUD-ENGINE,LH,L.GR
49089-S004-535
|
$67.62 | ||
|
Available to order. Add to View Price |
|||
|
#56066
PATTERN,RH,WHT/GOL/BL
56066-S014-553
|
$96.37 | ||
|
Available to order. Add to View Price |
|||
|
#56066A
PATTERN,LH,WHT/GOL/BL
56066-S015-553
|
$96.37 | ||
|
Available to order. Add to View Price |
|||
|
#59502
FAN-ASSY
59502-S004
Superseded by 59502-S007
|
$356.62 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-S123
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT
92153-S010
Superseded by 92153-S501
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT
92153-S011
Superseded by 92153-S486
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,AIR VENT
92153-S055
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#92153C
BOLT,6X25
92153-S105
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-S114
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,RESERVOIR TANK
92161-S115
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92161B
DAMPER,RADIATOR COVER
92161-S127
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-S002
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-S008
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#92171B
CLAMP,RADIATOR HOSE
92171-S088
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#92171C
CLAMP,RESERVOIR HOSE
92171-S116
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92171D
CLAMP,OIL HOSE NO.2
92171-S132
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW
92172-S055
Superseded by 92172-S296
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#92172A
SCREW
92172-S160
Superseded by 92172-S328
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#92172B
SCREW,RADIATOR CAP
92172-S195
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE,OVERFLOW,M.R.ORA
92191-S088-500
|
$23.20 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-S078
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,SPROCKET COVER
92200-S184
Superseded by 92200-S132
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-S013
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
