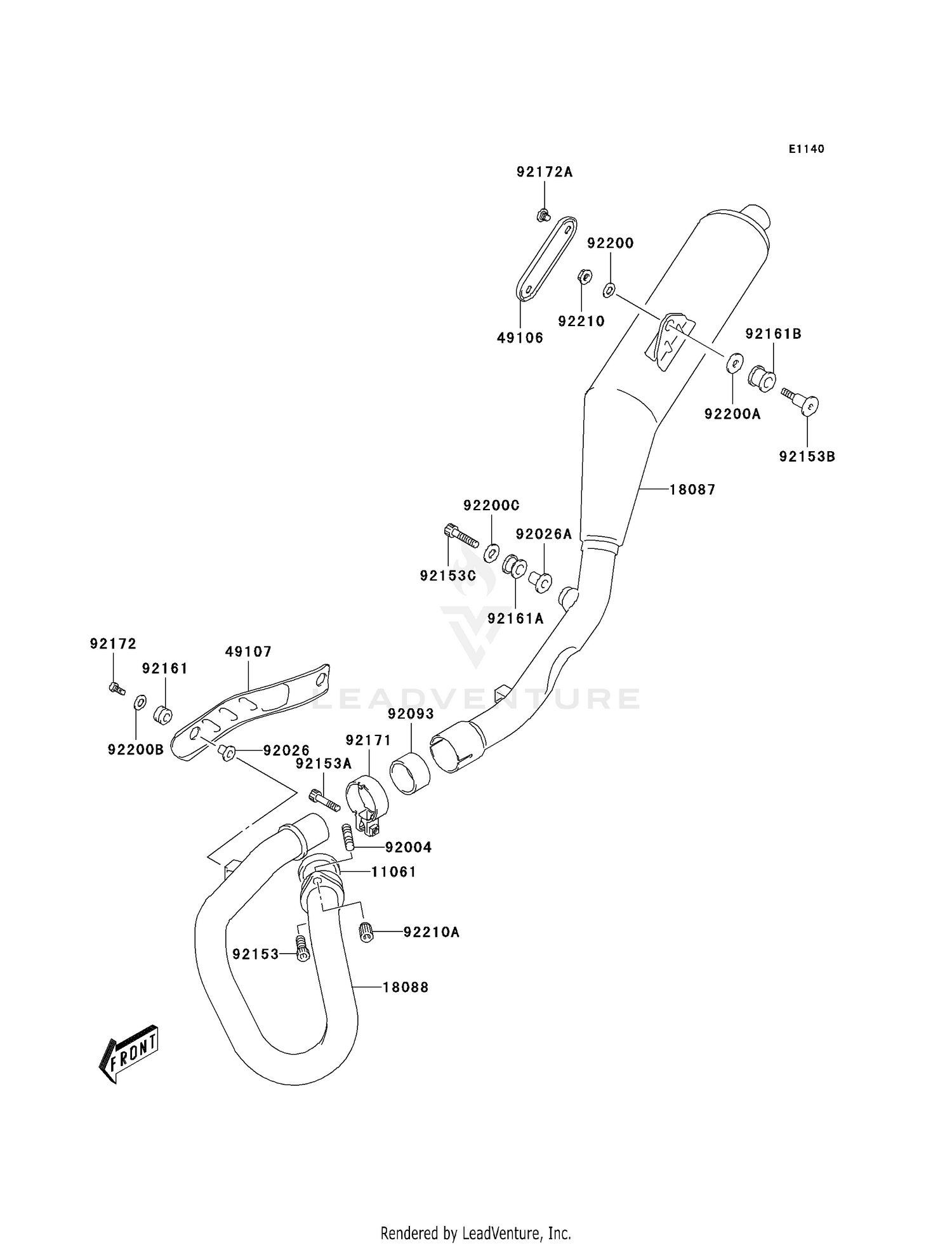

Muffler(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11061
GASKET,EXHAUST PIPE
11061-S076
|
$18.42 | ||
|
Available to order. Add to View Price |
|||
|
#18087
MUFFLER
18087-S004
|
$528.23 | ||
|
Available to order. Add to View Price |
|||
|
#18088
PIPE-EXHAUST
18088-S006
|
$234.65 | ||
|
Available to order. Add to View Price |
|||
|
#49106
COVER-MUFFLER
49106-S006
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#49107
COVER-EXHAUST PIPE
49107-S006
|
$43.04 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD
92004-S012
Superseded by 92004-S035
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-S020
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER
92026-S122
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL
92093-S035
|
$26.41 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT
92153-S134
Superseded by 92153-S567
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT
92153-S255
Superseded by 92153-S534
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT
92153-S327
|
$12.41 | ||
|
Available to order. Add to View Price |
|||
|
#92153C
BOLT,8X35
92153-S336
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-S027
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER
92161-S125
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#92161B
DAMPER
92161-S126
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-S114
|
$21.95 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,PIPE COVER
92172-S173
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#92172A
SCREW
92172-S194
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-S028
Superseded by 92200-S288
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-S136
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER,6.5X18X1
92200-S182
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#92200C
WASHER
92200-S183
Superseded by 92200-S283
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-S029
Superseded by 92210-S202
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT
92210-S125
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
