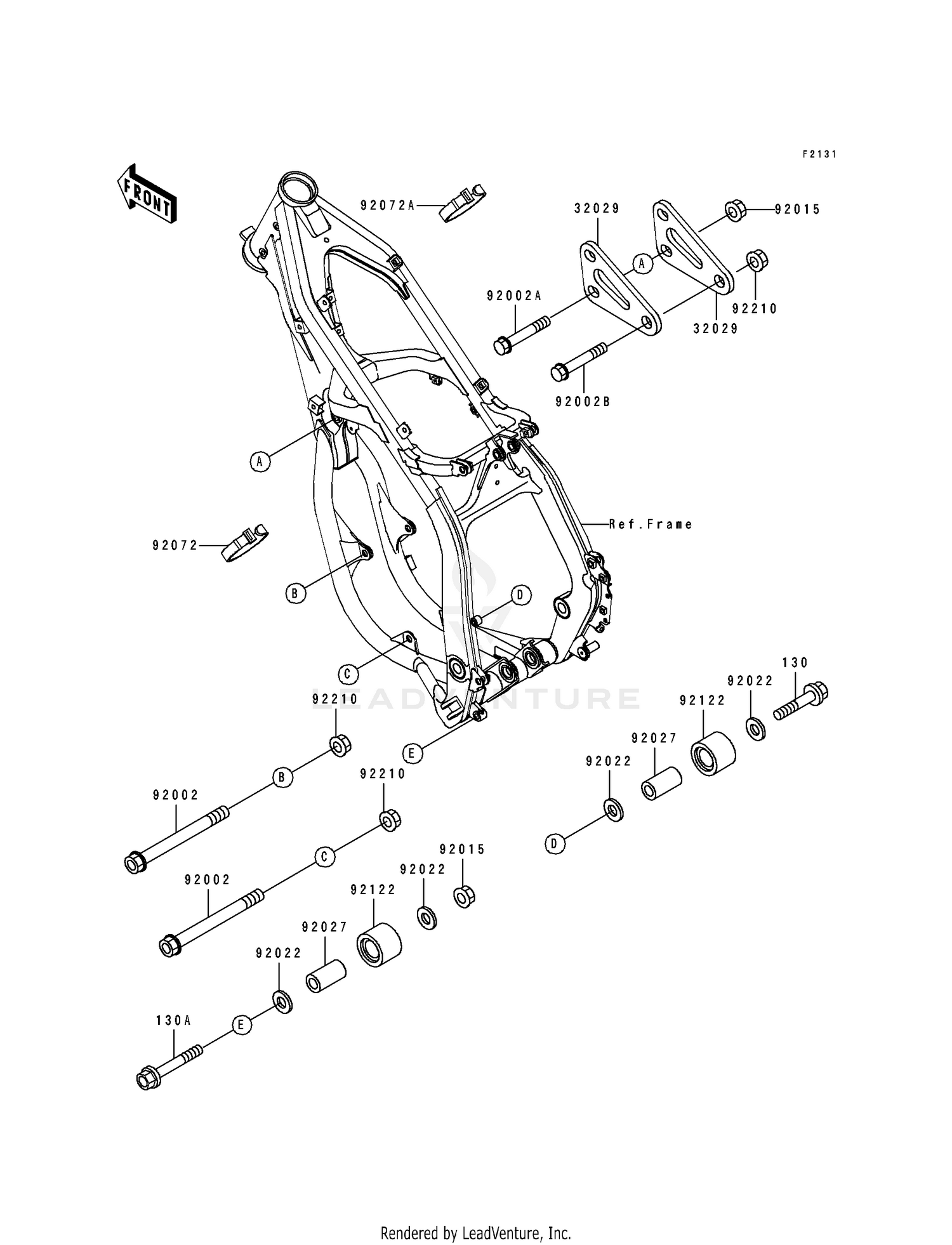

1997 Kawasaki KX 125 FRAME FITTINGS OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,8X40
130G0840
Superseded by 130CA0840
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,8X55
130G0855
Superseded by 130BA0855
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#32029
BRACKET-ENGINE
32029-1896
|
$27.87 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,10X105
92002-1491
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT
92002-1857
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT
92002-1936
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1432
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,8.5X22X1.5
92022-1629
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,CHAIN ROLLER
92027-1670
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=149
92072-031
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=186
92072-056
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92122
ROLLER,CHAIN GUIDE
92122-1153
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,FLANGED,10MM
92210-1080
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
