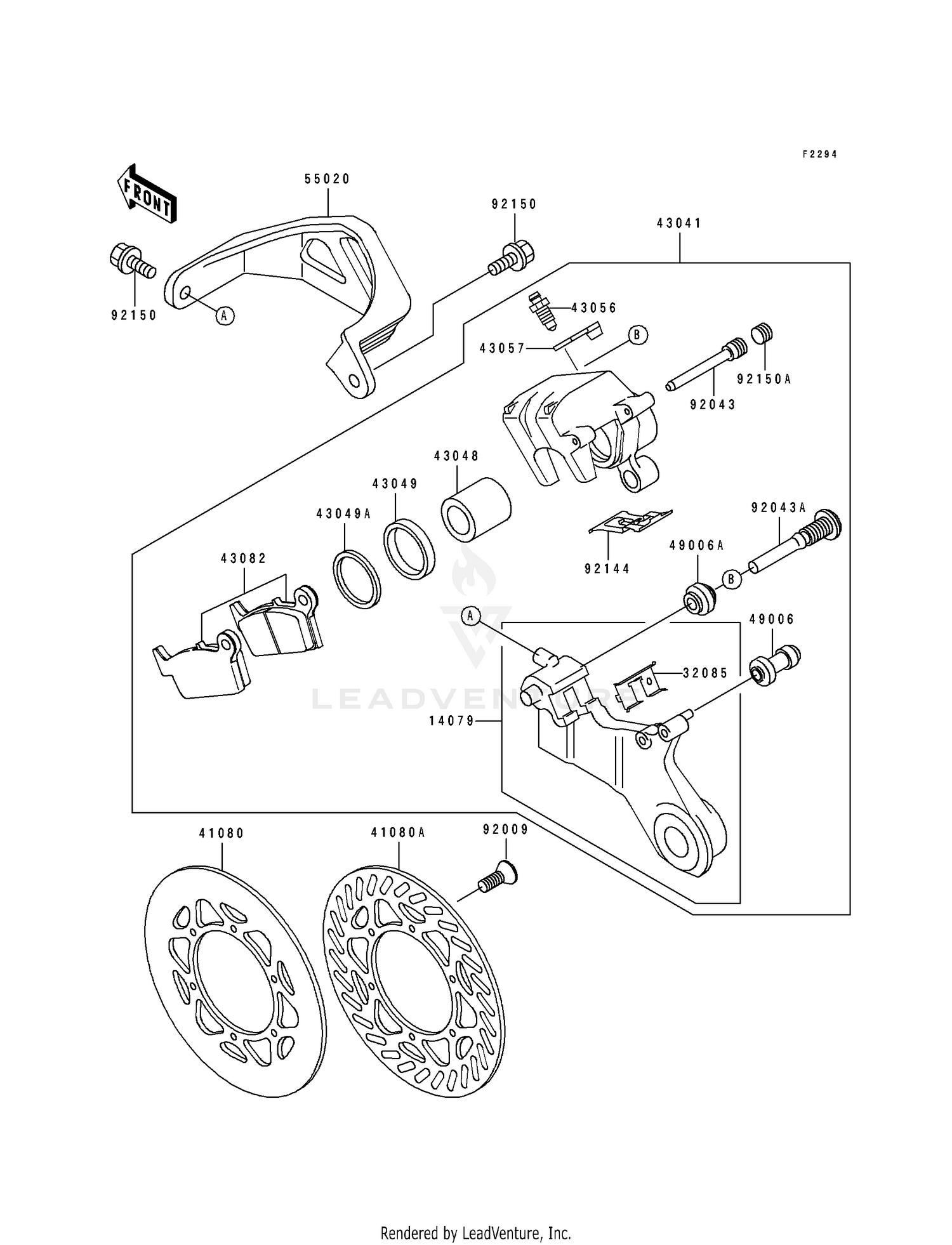

1997 Kawasaki KX 125 REAR BRAKE OEM Parts Diagram

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
< Back to Assembly Types
Item MSRP Qty
#14079 HOLDER-ASSY,REAR CALI
14079-1111
 $170.69
Available to order.
Add to View Price
#32085 STOPPER,PAD
32085-1386
 $8.55
Available to order.
Add to View Price
#41080 DISC,RR
41080-1245
 $322.04
Available to order.
Add to View Price
#41080A DISC,RR
41080-1388
 $222.52
Available to order.
Add to View Price
#43041 CALIPER-ASSY,RR
43041-1606
 $277.95
Available to order.
Add to View Price
#43048 PISTON-CALIPER
43048-1068
 $78.71
Available to order.
Add to View Price
#43049 PACKING,PISTON SEAL
43049-1060
 $18.76
Available to order.
Add to View Price
#43049A PACKING,PISTON SEAL
43049-1061
 $10.19
Available to order.
Add to View Price
#43056 BREATHER-BRAKE
43056-1055
Superseded by 43056-1056
 $13.79
Available to order.
Add to View Price
#43057 CAP-BREATHER
43057-1001
 $4.75
Available to order.
Add to View Price
#43082 PAD-ASSY-BRAKE
43082-1173
 $43.92
Available to order.
Add to View Price
#49006 BOOT,CALIPER
49006-1088
 $11.20
Available to order.
Add to View Price
#49006A BOOT,CALIPER
49006-1242
 $5.29
Available to order.
Add to View Price
#55020 GUARD,RR CALIPER,P.WH
55020-1488-6F
 $33.61
Available to order.
Add to View Price
#92009 SCREW,6X14.5
92009-1546
 $4.65
Available to order.
Add to View Price
#92043 PIN,HANGER
92043-1507
 $13.26
Available to order.
Add to View Price
#92043A PIN
92043-1508
 $13.26
Available to order.
Add to View Price
#92144 SPRING,PAD
92144-1819
 $7.75
Available to order.
Add to View Price
#92150 BOLT,6X14
92150-1340
 $4.91
Available to order.
Add to View Price
#92150A BOLT,PLUG
92150-1692
 $7.57
Available to order.
Add to View Price
