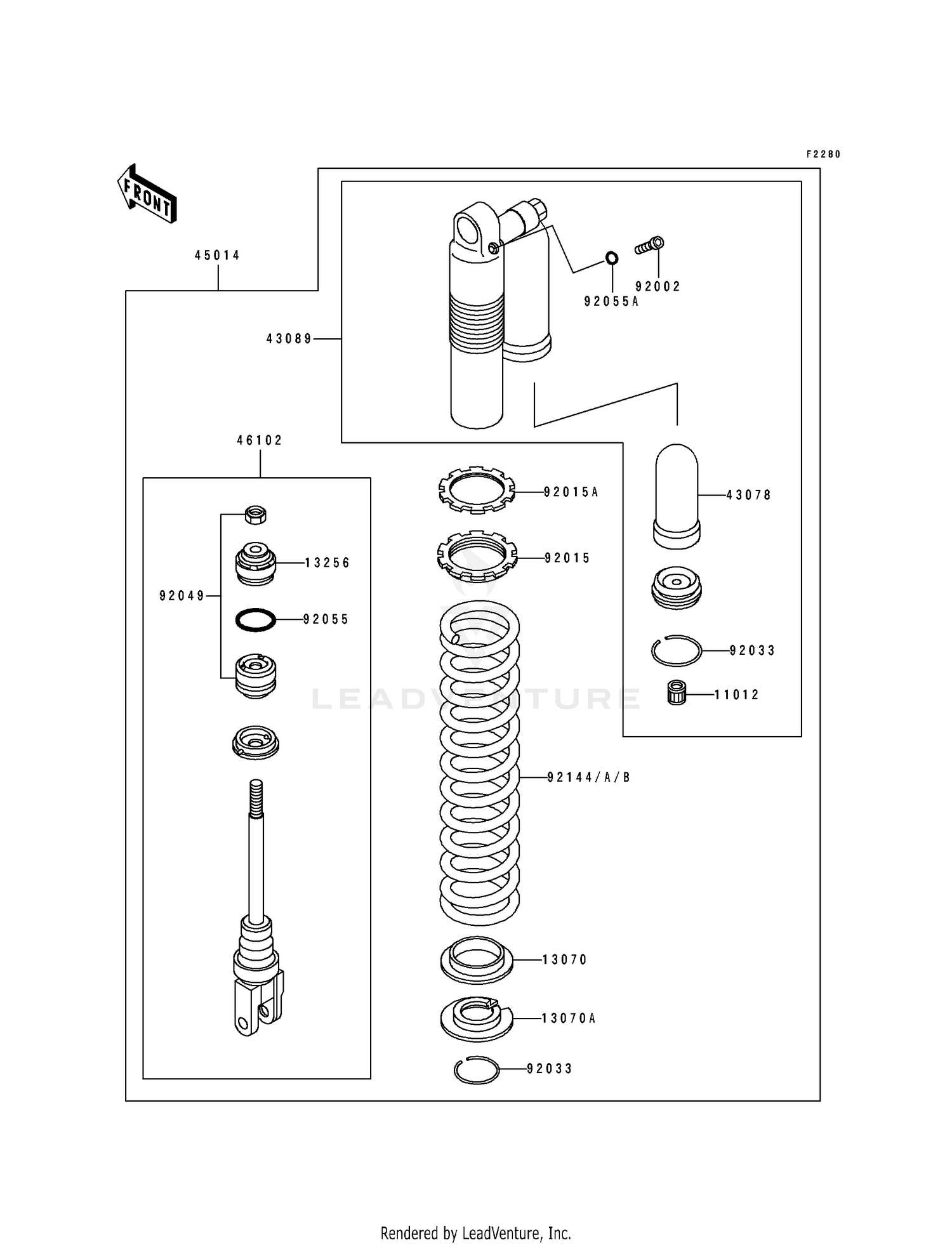

1997 Kawasaki KX 125 SHOCK ABSORBER(S) OEM Parts Diagram

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
< Back to Assembly Types
Item MSRP Qty
#11012 CAP,AIR VALVE
11012-1552
 $5.96
Available to order.
Add to View Price
#13070 GUIDE,SPRING
13070-1161
 $22.19
Available to order.
Add to View Price
#13070A GUIDE,SPRING
13070-1165
 $34.07
Available to order.
Add to View Price
#13256 PISTON,SHOCKABSORBER
13256-1059
 $168.78
Available to order.
Add to View Price
#43078 RESERVOIR,SHOCKABSORB
43078-1125
 $96.13
Available to order.
Add to View Price
#43089 CYLINDER-SHOCKABSORBE
43089-1154
 $563.36
Available to order.
Add to View Price
#45014 SHOCKABSORBER,J.S.VIO
45014-1638-45
 $1,179.50
Available to order.
Add to View Price
#46102 ROD,SHOCKABSORBER
46102-1398
 $782.65
Available to order.
Add to View Price
#92002 BOLT
92002-1955
 $10.77
Available to order.
Add to View Price
#92015 NUT,SPRING ADJUST
92015-1703
 $38.95
Available to order.
Add to View Price
#92015A NUT,SPRING ADJUST LOC
92015-1704
 $36.62
Available to order.
Add to View Price
#92033 RING-SNAP
92033-1209
 $8.88
Available to order.
Add to View Price
#92049 SEAL-OIL
92049-1407
 $164.06
Available to order.
Add to View Price
#92055 RING-O,ROD
92055-1346
 $9.92
Available to order.
Add to View Price
#92055A O RING,4MM
92055-1383
Superseded by 670B1504
 $3.98
Available to order.
Add to View Price
#92144 SPRING,SHOCKABSORBER,
92144-1501-45
 $293.76
Available to order.
Add to View Price
#92144A SPRING,SHOCKABSORBER,
92144-1502-45
 $307.64
Available to order.
Add to View Price
#92144B SPRING,SHOCKABSORBER,
92144-1503-45
 $307.64
Available to order.
Add to View Price
