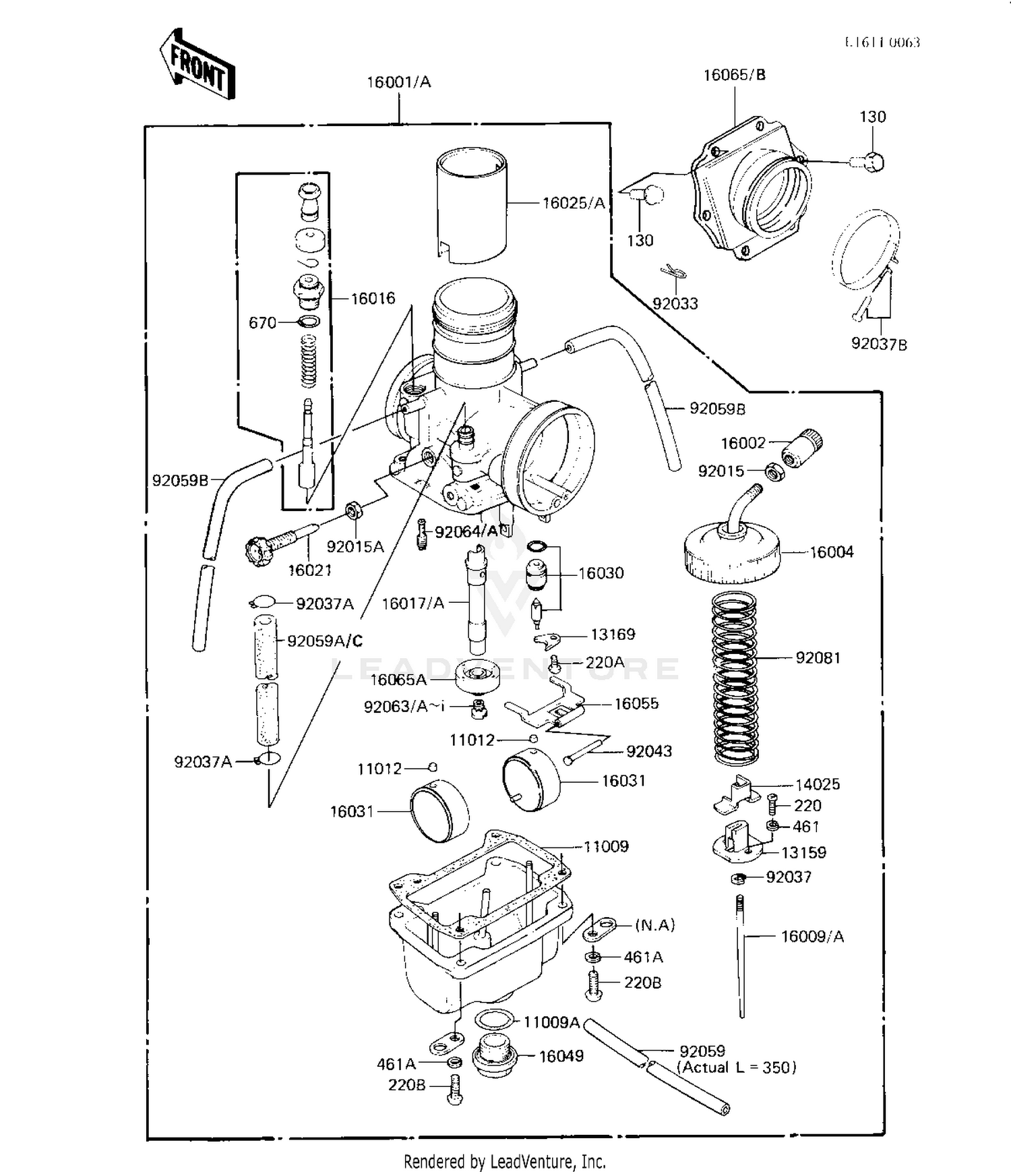

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FLOAT CHAMBER
11009-1275
|
$14.66 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET-COVER
16038-009
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,FLOAT
11012-1047
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR,THROTTLE
13159-1010
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE, LOCK
13169-1190
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,THROTTLE,VALVE
14025-1113
|
$10.63 | ||
|
Available to order. Add to View Price |
|||
|
#16001
CARBURETOR
16001-1506
|
$223.01 | ||
|
Available to order. Add to View Price |
|||
|
#16001A
CARBURETOR
16001-1677
|
$250.52 | ||
|
Available to order. Add to View Price |
|||
|
#16002
ADJUSTER,CABLE
16002-1006
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#16004
CAP-CHAMBER,MIXING
16004-1013
|
$56.05 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET
16009-1103
|
$49.25 | ||
|
Available to order. Add to View Price |
|||
|
#16009A
NEEDLE-JET,5DH92
16009-1140
|
$49.25 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER,STARTER
16016-1026
|
$69.67 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE,R-6
16017-1106
|
$32.67 | ||
|
Available to order. Add to View Price |
|||
|
#16017A
JET-NEEDLE,R-2
16017-1128
|
$64.37 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW,THROT VLV ADJST
16021-1030
|
$24.61 | ||
|
Available to order. Add to View Price |
|||
|
#16025
VALVE-THROTTLE,CA3.0
16025-1063
|
$89.18 | ||
|
Available to order. Add to View Price |
|||
|
#16025A
VALVE-THROTTLE,CA3.0
16025-1080
|
$77.07 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT,3.3
16030-1020
|
$53.44 | ||
|
Unavailable |
|||
|
#16031
FLOAT
16031-029
|
$61.82 | ||
|
Available to order. Add to View Price |
|||
|
#16049
COVER,MAIN JET
16049-006
|
$19.74 | ||
|
Available to order. Add to View Price |
|||
|
#16055
ARM,FLOAT
16055-009
|
$22.57 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1050
|
$100.52 | ||
|
Available to order. Add to View Price |
|||
|
#16065A
HOLDER-CARBURETOR
16065-1052
|
$29.13 | ||
|
Available to order. Add to View Price |
|||
|
#16065B
HOLDER-CARBURETOR
16065-1068
|
$96.38 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT CABLE ADJUST LOCK
16003-004
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,ADJUST LOCK
16003-006
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92036-018
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CIRCLIP
16008-010
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,CARB CONECT HOS
92037-056
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,CARBURETOR HOLD
92037-1313
|
$12.51 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,FLOAT
16032-008
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92059
HOSE,FUEL OVERFLOW
92059-1142
Superseded by 92059-147
|
$34.79 | ||
|
Unavailable |
|||
|
#92059A
TUBE,6.5X11.5X200
92059-1289
|
$21.15 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,4X7X400,OVERFLOW
92059-1292
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#92059C
TUBE,5.8X10.8X180
92059-1443
|
$33.72 | ||
|
Available to order. Add to View Price |
|||
|
#92063
MAIN JET,#160R
92063-1018
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
MAIN JET,#162.5R
92063-1019
|
$21.40 | ||
|
Available to order. Add to View Price |
|||
|
#920638
MAIN JET,#165R
92063-1020
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
MAIN JET,#167.5R
92063-1021
|
$10.16 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
MAIN JET,#170R
92063-1022
|
$21.40 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
MAIN JET,#155R
92063-1025
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#92063F
MAIN JET,#157.5R
92063-1026
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#92063G
JET-MAIN NO 147.5R
92063-119
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#92063H
MAIN JET NO 150R
92063-120
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#92063I
JET-MAIN NO 152.5R
92063-121
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#A20
92064-021
Superseded by 92064-1043
|
$16.40 | ||
|
Available to order. Add to View Price |
|||
|
#92064A
JET-PILOT NO 35
92064-023
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,THROTTLE VALVE
92081-1432
|
$17.60 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X20
130G0620
Superseded by 130CA0620
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,3X8
220B0308
Superseded by 220AA0308
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN CROS,4X6
220B0406
Superseded by 220AA0406
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#220B
SCREW-PAN-CROS,5X16
220B0516A
Superseded by 220AA0516
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING
461F0300
Superseded by 461DA0300
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,9MM
670B1509
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
