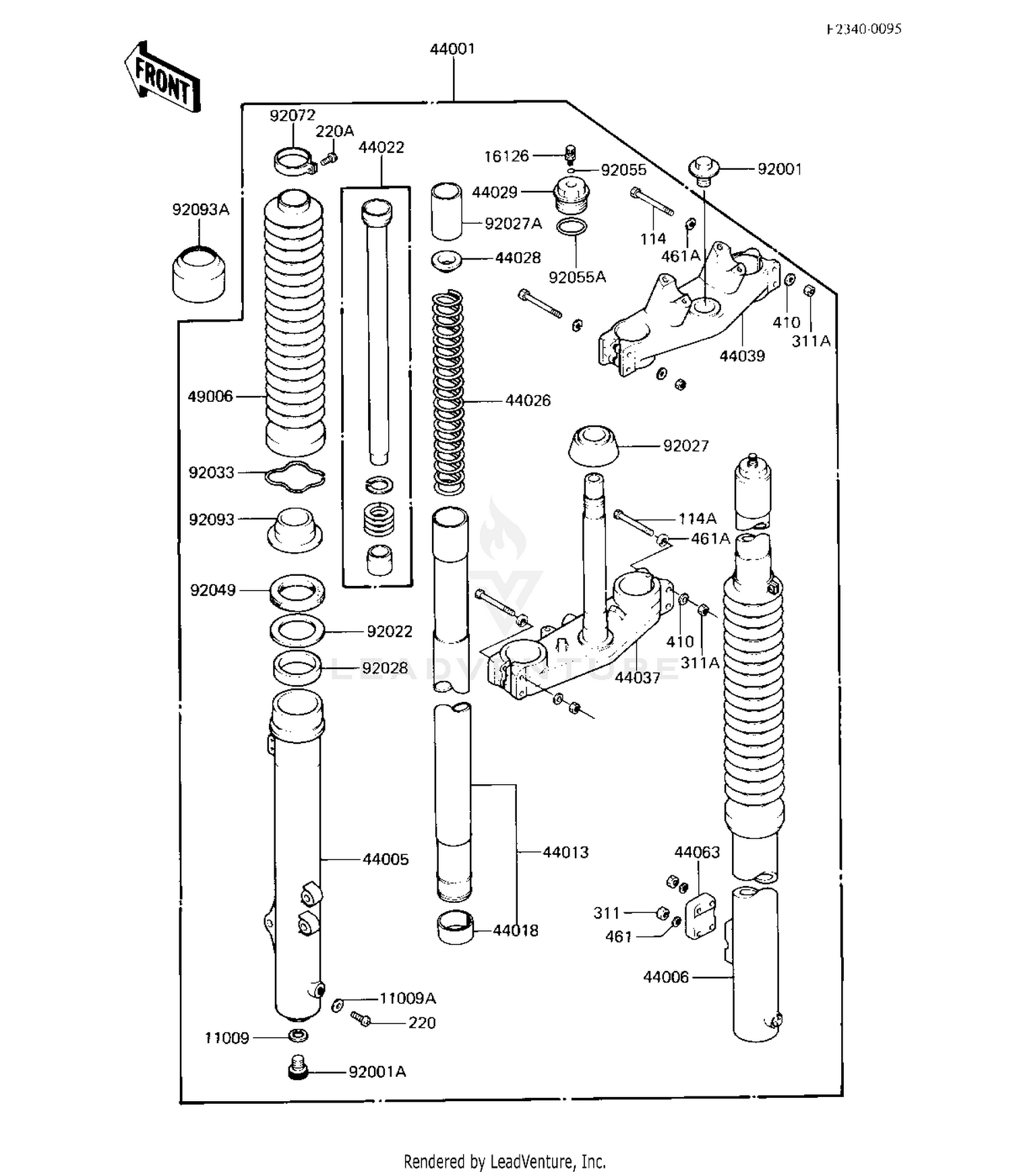

Front Fork (kx125-b1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK DRAIN PLUG
11009-1553
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,AIR FRONT FORK
16126-1048
|
$16.76 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT
44001-1323
|
$1,227.82 | ||
|
Available to order. Add to View Price |
|||
|
#44005
TUBE,LH,FORK OUTER
44005-1083
|
$321.37 | ||
|
Available to order. Add to View Price |
|||
|
#44006
TUBE,RH,FORK OUTER
44006-1083
|
$266.60 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1081
|
$382.07 | ||
|
Available to order. Add to View Price |
|||
|
#44018
PISTON-FORK
44018-1006
|
$25.20 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1074
|
$114.20 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1130
|
$47.47 | ||
|
Available to order. Add to View Price |
|||
|
#44028
GUIDE-FORK SPRING
44028-1009
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-1030
|
$50.75 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1083
|
$363.92 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1053
|
$175.32 | ||
|
Available to order. Add to View Price |
|||
|
#44063
HOLDER-FRONT AXLE
44063-1007
|
$21.15 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,FORK OUTER TUBE
49006-1080
|
$50.91 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT
92001-1520
|
$18.97 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT
92001-1533
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,FORK OUTER TUBE
92022-1298
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,FRONT FORK
92027-1427
|
$75.19 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,FORK INNER
92027-1448
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING-FRONT FORK
44065-1064
Superseded by 44065-1085
|
$31.68 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1036
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK
92049-1091
Superseded by 92049-1245
|
$28.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055
O RING,6MM
92055-1094
Superseded by 670B1506
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,FORK TOP CAP
92055-1122
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,BOOT
92072-1077
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1076
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#92093A
SEAL,DUST FORK
92093-1078
|
$18.08 | ||
|
Available to order. Add to View Price |
|||
|
#114
BOLT HEX HEAD 8X50
114G0850
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#114A
BOLT-SMALL-UPSET,8X55
114G0855
Superseded by 115G0855
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS
220B0416
Superseded by 220AA0416
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311G0600
Superseded by 311BA0600
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#311A
NUT,8MM
311G0800
Superseded by 311BA0800
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
