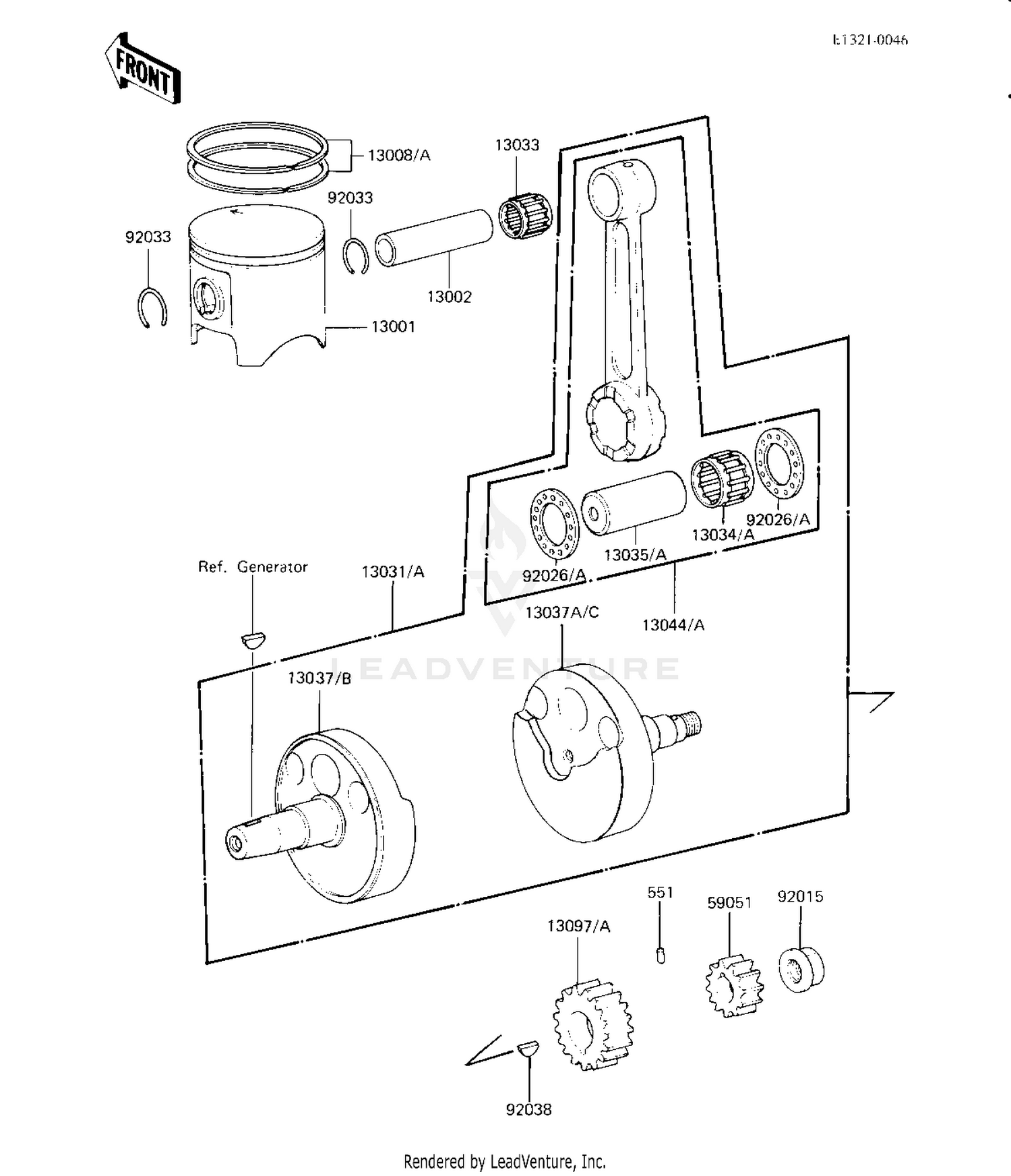

Crankshaft/piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13001
PISTON-ENGINE
13001-1198
Superseded by 13001-1231
|
$133.66 | ||
|
Unavailable |
|||
|
#13002
PIN-PISTON
13002-1003
|
$21.42 | ||
|
Available to order. Add to View Price |
|||
|
#13008
RING-SET-PISTON
13008-5045
|
$68.12 | ||
|
Available to order. Add to View Price |
|||
|
#13008A
RING-SET-PISTON
13008-5051
|
$65.06 | ||
|
Unavailable |
|||
|
#13031
CRANKSHAFT-COMP
13031-1063
Superseded by 13031-1090
|
$205.61 | ||
|
Available to order. Add to View Price |
|||
|
#13031A
CRANKSHAFT-COMP
13031-1090
|
$205.61 | ||
|
Unavailable |
|||
|
#13033
BEARING-SMALL END,KBK
13033-1007
Superseded by 13033-1051
|
$22.58 | ||
|
Available to order. Add to View Price |
|||
|
#13034
BEARING-BIG END
13034-1079
|
$63.64 | ||
|
Available to order. Add to View Price |
|||
|
#13034A
BEARING-BIG END
13034-1079
|
$63.64 | ||
|
Unavailable |
|||
|
#13035
PIN,CRANK
13035-1001
|
$45.78 | ||
|
Available to order. Add to View Price |
|||
|
#13035A
PIN
13035-1010-01
|
$46.06 | ||
|
Available to order. Add to View Price |
|||
|
#13037
CRANKSHAFT,LH
13037-1121
|
$166.49 | ||
|
Available to order. Add to View Price |
|||
|
#13037A
CRANKSHAFT,RH
13037-1122
|
$166.16 | ||
|
Available to order. Add to View Price |
|||
|
#13037B
CRANKSHAFT,LH
13037-1167
|
$166.49 | ||
|
Available to order. Add to View Price |
|||
|
#13037C
CRANKSHAFT,RH
13037-1168
|
$166.16 | ||
|
Available to order. Add to View Price |
|||
|
#13044
SET-CONNECTING ROD
13044-5018
Superseded by 13044-5035
|
$203.59 | ||
|
Available to order. Add to View Price |
|||
|
#13044A
SET-CONNECTING ROD
13044-5030
|
$233.12 | ||
|
Available to order. Add to View Price |
|||
|
#13097
GEAR-PRIMARY SPUR,18T
13097-1053
|
$98.49 | ||
|
Available to order. Add to View Price |
|||
|
#13097A
GEAR-PRIMARY SPUR,19T
13097-1069
|
$79.47 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR,WATER PUMP,
59051-1035
|
$22.95 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,10MM
92015-1161
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#92026
WASHER SIDE
92026-011
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER,22.2X37X1.0
92026-1136
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92033
CIRCLIP PISTON PIN
92036-004
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92038
WOODRUFF KEY PRY PINI
92038-003
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#551
PIN-DOWEL,4X8
551A0408
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
