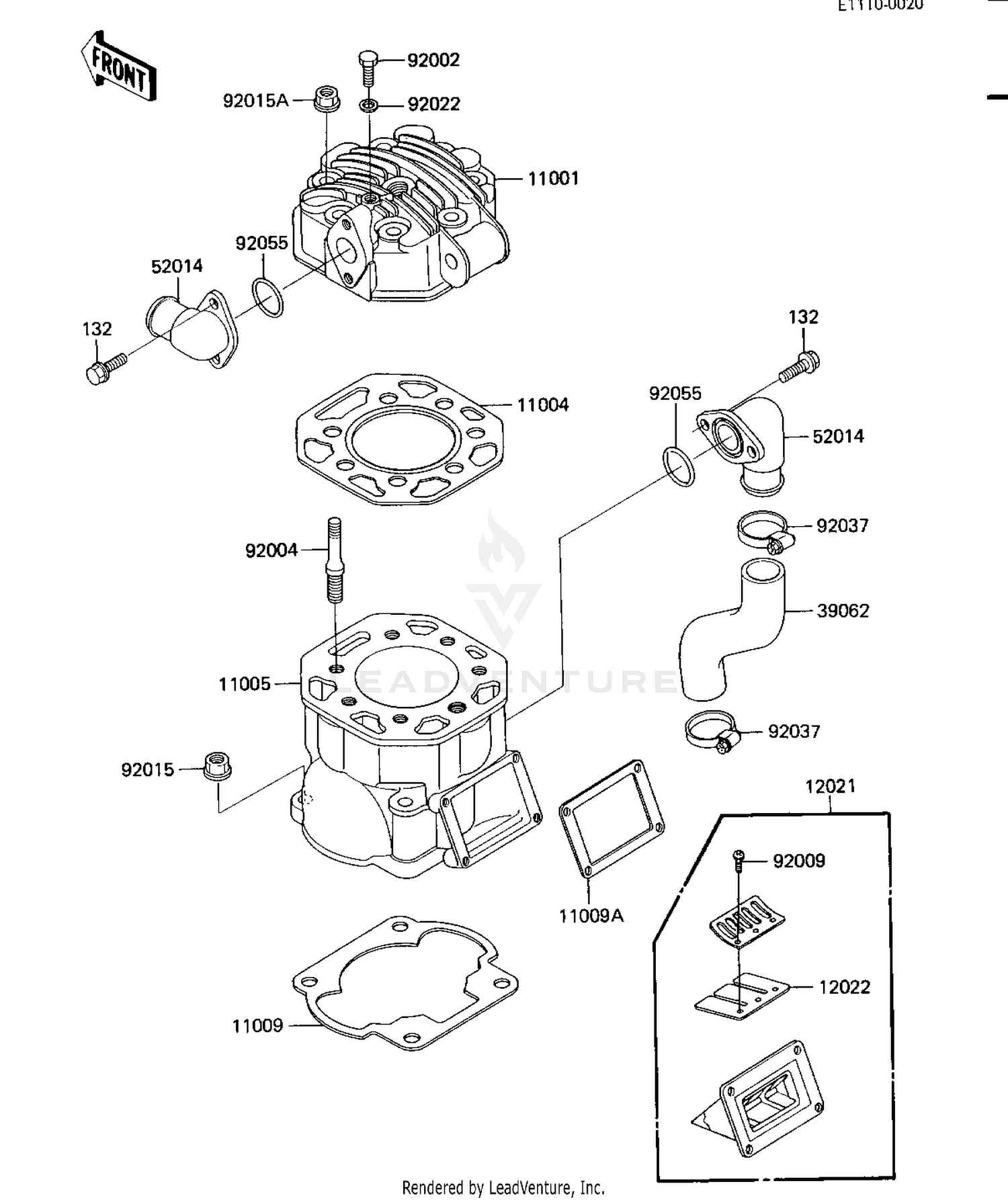

Cylinder Head/cylinder/reed Valve Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11001
HEAD-CYLINDER
11001-1189
|
$237.65 | ||
|
Available to order. Add to View Price |
|||
|
#11004
GASKET-HEAD,CYLINDER
11004-1127
|
$62.70 | ||
|
Available to order. Add to View Price |
|||
|
#11005
CYLINDER-ENGINE
11005-1416
|
$1,038.75 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET, CYLINDER BASE
11009-1288
Superseded by 11060-1454
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,REED VALVE
11009-1360
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#12021
VALVE-ASSY-REED
12021-1057
|
$151.53 | ||
|
Available to order. Add to View Price |
|||
|
#12022
VALVE-REED
12022-1051
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING
39062-1097
|
$17.97 | ||
|
Available to order. Add to View Price |
|||
|
#52014
ELBOW
52014-1004
Superseded by 52014-0005
|
$31.22 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X10
92002-1222
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,CYLINDER
92004-1022
|
$8.94 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,REED VALVE
92009-1014
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,10MM
92015-1415
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,8MM
92015-1014
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,COOLING HOSE
92037-1589
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,19.5X1.5
92055-055
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X16
132G0616
Superseded by 132BA0616
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
