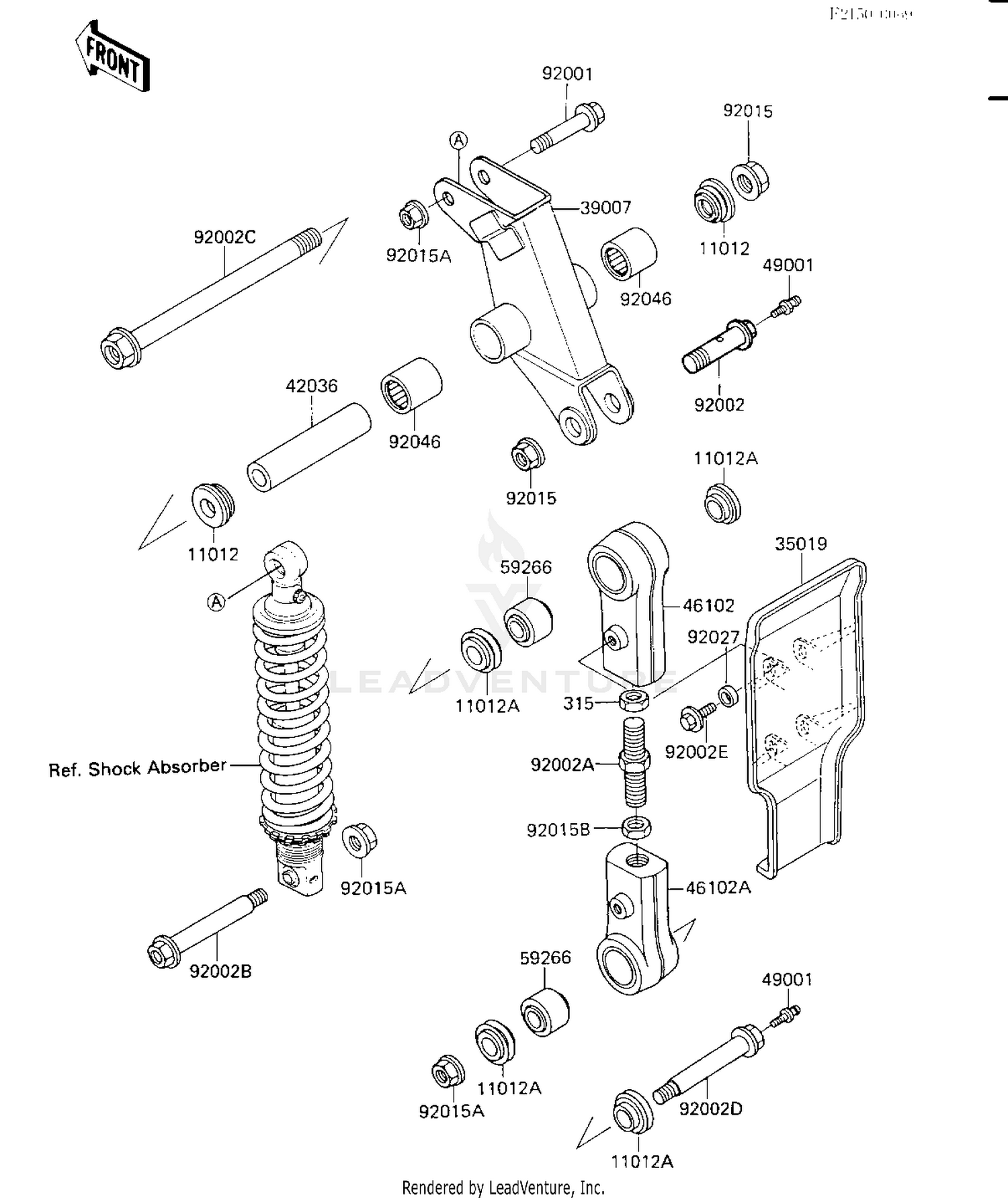

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,SWING ARM
11012-1207
|
$22.34 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,ROD
11012-1418
|
$18.79 | ||
|
Available to order. Add to View Price |
|||
|
#35019
FLAP,ROD
35019-1166
|
$40.25 | ||
|
Unavailable |
|||
|
#39007
ARM-SUSP,UNI TRAK
39007-5006
|
$194.29 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,SUSPENSION ARM
42036-1144
|
$40.25 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD,UNI TRAK
46102-1130
|
$99.23 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD,UNI TRAK
46102-1131
|
$99.04 | ||
|
Available to order. Add to View Price |
|||
|
#49001
NIPPLE-GREASE
49001-1051
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#59266
JOINT-BALL,ROD
59266-1056
|
$132.86 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,10X48
92001-1962
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,14X57
92002-1390
|
$43.92 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,ROD
92002-1394
|
$21.32 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT,10X68
92002-1395
|
$14.79 | ||
|
Available to order. Add to View Price |
|||
|
#92002C
BOLT,14X122
92002-1396
|
$36.30 | ||
|
Available to order. Add to View Price |
|||
|
#92002D
BOLT,ROD,10X65
92002-1397
|
$36.79 | ||
|
Available to order. Add to View Price |
|||
|
#92002E
BOLT,6X14
92150-1340
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,14MM
92015-1407
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,10MM
92015-1415
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,14MM
92015-1463
|
$9.05 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,6.5X10.5X4.5
92027-1885
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,TA2030
92046-1128
|
$25.10 | ||
|
Available to order. Add to View Price |
|||
|
#315
NUT-HEX-FINE
315G1400
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
