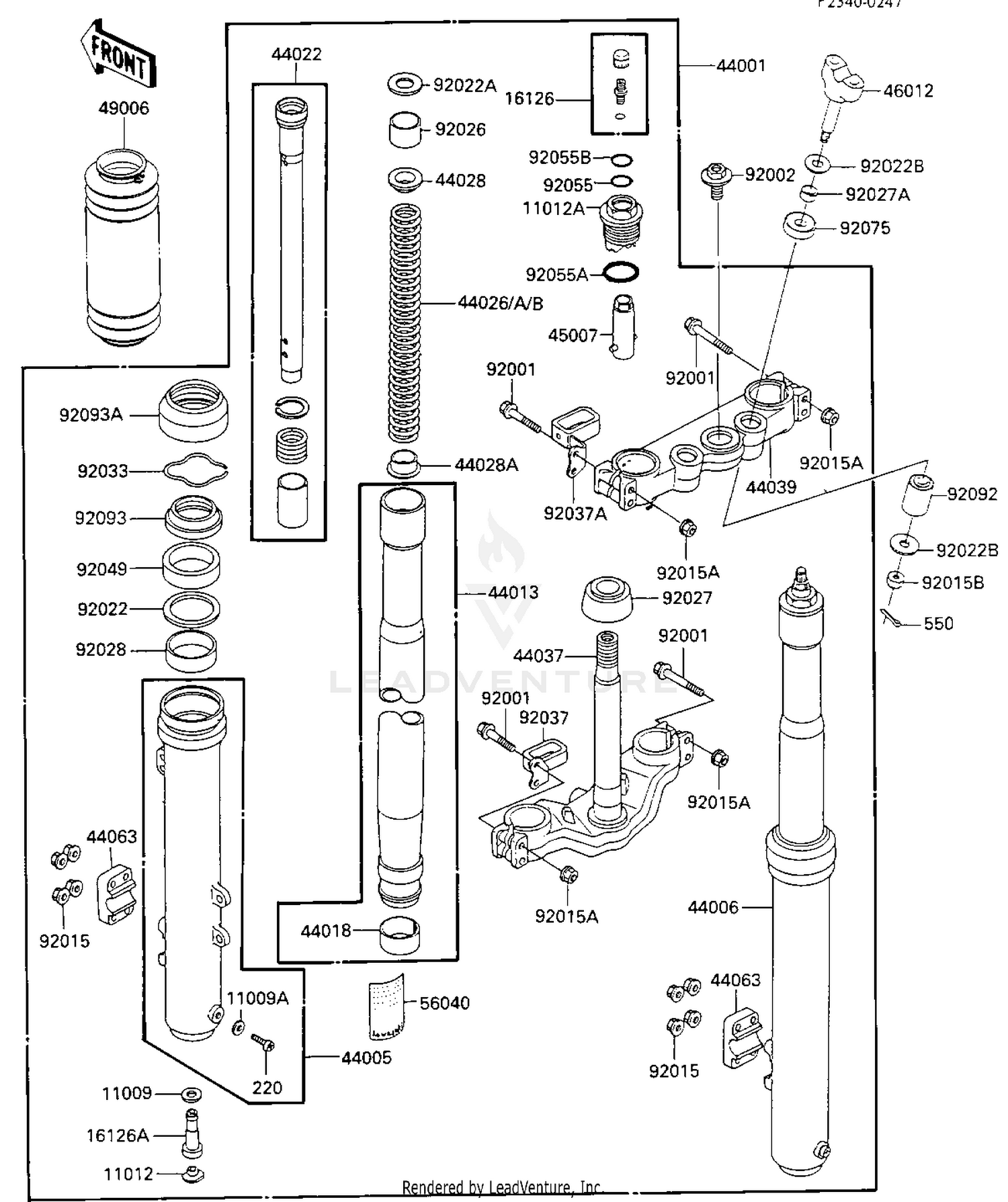

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER
11009-1324
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,FORK CYLINDER
11012-1381
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#11012A
CAP
11012-1439
|
$59.51 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE AIR
16126-1052
|
$33.72 | ||
|
Available to order. Add to View Price |
|||
|
#16126A
VALVE,FORK CYLINDER
16126-1134
|
$148.40 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT
44001-1560
|
$1,206.46 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER
44005-1224
|
$276.51 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-1224
|
$276.51 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1223
|
$363.19 | ||
|
Available to order. Add to View Price |
|||
|
#44018
PISTON-FORK
44018-1005
|
$39.95 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1176
|
$108.43 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK,K=0
44026-1294
|
$75.64 | ||
|
Available to order. Add to View Price |
|||
|
#44026A
SPRING-FRONT FORK,K=0
44026-1324
|
$78.78 | ||
|
Available to order. Add to View Price |
|||
|
#44026B
SPRING-FRONT FORK,K=0
44026-1314
|
$78.78 | ||
|
Available to order. Add to View Price |
|||
|
#44028
GUIDE-FORK SPRING
44028-1010
|
$10.90 | ||
|
Available to order. Add to View Price |
|||
|
#44028A
GUIDE-FORK SPRING
44028-1054
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1177
|
$410.22 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1120
|
$225.40 | ||
|
Available to order. Add to View Price |
|||
|
#44063
HOLDER-FRONT AXLE
44063-1008
|
$51.52 | ||
|
Available to order. Add to View Price |
|||
|
#45007
ADJUSTER-SPRING,FRONT
45007-1055
|
$44.22 | ||
|
Available to order. Add to View Price |
|||
|
#46012
HOLDER-HANDLE,LWR
46012-1124
|
$41.93 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT
49006-1178
|
$109.34 | ||
|
Available to order. Add to View Price |
|||
|
#56040
LABEL,FRONT FORK
56040-1120
|
$5.90 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT
92001-1639
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FORK TOP
92002-1399
|
$29.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,8MM
92015-1485
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,LOCK,10MM
92019-021
Superseded by 92210-1184
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1299
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,FORK SPRING
92022-1665
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER-HANDLEBAR FIT
92022-196
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK SPRING
92026-1247
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,FRONT FORK
92027-1427
|
$75.19 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,10.5X15.1X6
92027-1850
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1145
Superseded by 92028-1581
|
$21.02 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1077
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
92037-1627
|
$26.72 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP
92037-1628
|
$18.82 | ||
|
Unavailable |
|||
|
#92049
SEAL-OIL,FORK OUTER T
92049-1295
|
$21.35 | ||
|
Available to order. Add to View Price |
|||
|
#92055
O RING,22MM
92055-1062
Superseded by 670B2022
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1123
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O
92055-1288
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,HANDLE HOLDER
92075-1725
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#92092
BUSHING-RUBBER
92092-1053
|
$61.30 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK DUST
92093-1086
|
$18.78 | ||
|
Available to order. Add to View Price |
|||
|
#92093A
SEAL,FORK
92093-1184
|
$21.78 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X20
550D2020
Superseded by 550AA2020
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
