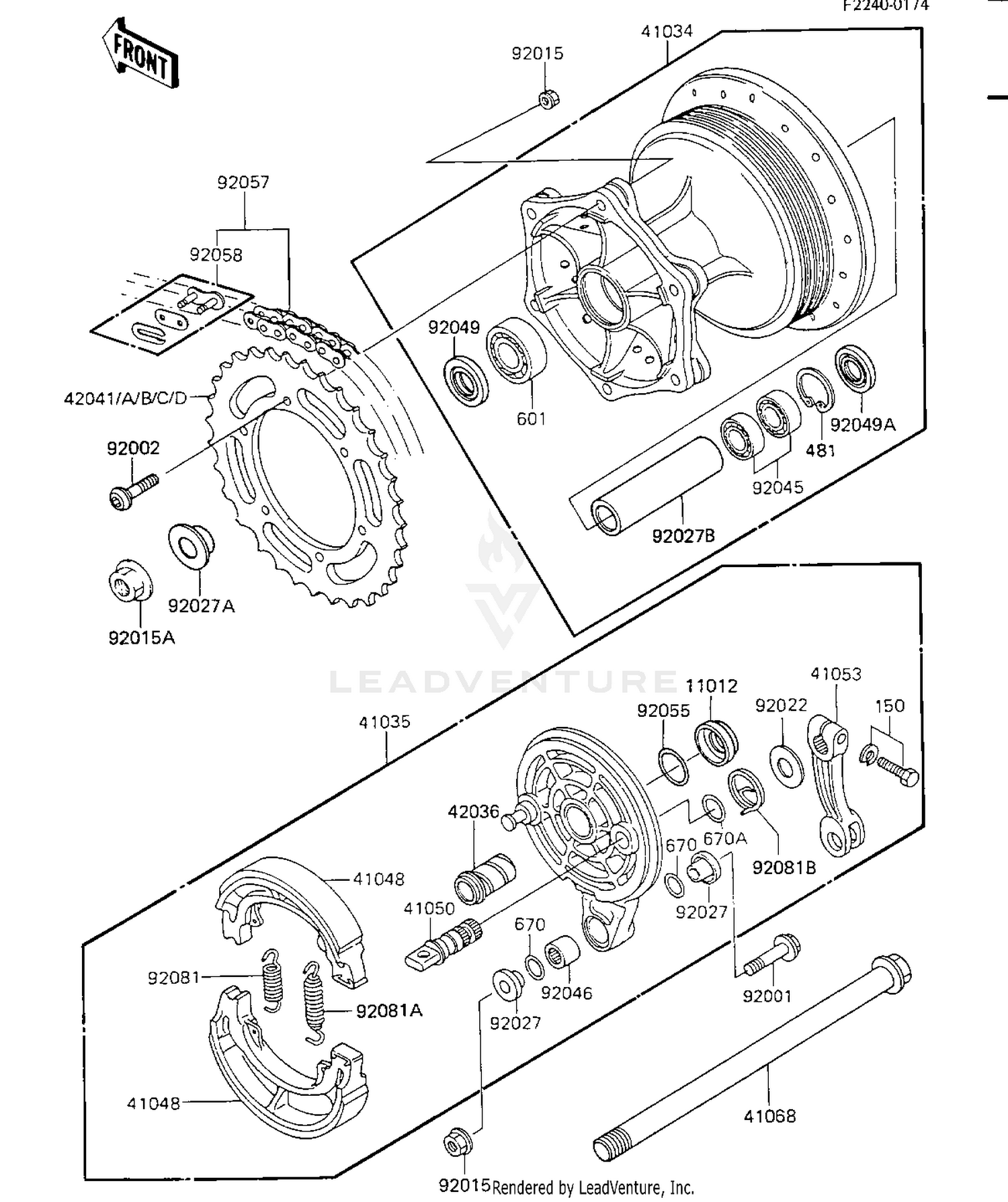

Rear Hub/brake/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,RR BRAKE
11012-1416
|
$25.94 | ||
|
Available to order. Add to View Price |
|||
|
#41034
DRUM-ASSY,RR BRAKE
41034-1117
|
$675.73 | ||
|
Available to order. Add to View Price |
|||
|
#41035
PANEL-ASSY-BRAKE,RR
41035-1175
Superseded by 41035-1353
|
$579.96 | ||
|
Available to order. Add to View Price |
|||
|
#41048
SHOE-BRAKE
42019-010
Superseded by 41048-1076
|
$36.61 | ||
|
Available to order. Add to View Price |
|||
|
#41050
CAM-BRAKE,RR
41050-1027
|
$47.52 | ||
|
Available to order. Add to View Price |
|||
|
#41053
LEVER-BRAKE CAM.RR
41053-1034
|
$125.92 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-1180
|
$139.86 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR BRAKE,L=44
42036-1143
|
$56.53 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,48T,AL
42041-1103
Superseded by 42041-1257
|
$132.62 | ||
|
Available to order. Add to View Price |
|||
|
#42041A
SPROCKET-HUB,45T
42041-1154
|
$136.49 | ||
|
Available to order. Add to View Price |
|||
|
#42041B
SPROCKET-HUB,46T,AL
42041-1193
Superseded by 42041-1259
|
$130.17 | ||
|
Available to order. Add to View Price |
|||
|
#42041C
SPROCKET-HUB,47T,AL
42041-1258
|
$132.62 | ||
|
Available to order. Add to View Price |
|||
|
#42041D
SPROCKET-HUB,44T,AL
42041-1197
|
$109.79 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,8X40
92001-1578
Superseded by 92002-1838
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,8MM
92002-1387
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1143
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,20MM
92015-1461
|
$23.29 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,14X30X0.8
92022-1402
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=11.5
92027-1040
|
$21.06 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,RR AXLE,L=20.5
92027-1828
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#92027B
COLLAR,L=99
92027-1836
|
$40.76 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,6904LU/2
92045-1136
|
$38.79 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,HK1216LL
92046-1009
|
$17.79 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,BJNC2 25425
92049-1203
|
$17.27 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,BJN 30374
92049-1205
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,31.5X2.6
92055-049
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92057
DR CHAIN DID520DS5
92057-1178
|
$204.98 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT,DRIVE CHAIN
92058-1013
|
$11.77 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE SHOE
92081-1766
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,BRAKE SHOE
92081-1550
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,BRAKE CAM LEVE
92081-1770
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#150
BOLT-WS
150G0622
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#481
CIRCLIP-TYPE-C,37MM
481J3700
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6004UG
601B6004U
Superseded by 601B6004UG
|
$14.68 | ||
|
Unavailable |
|||
|
#670
O RING,11MM
670B2011
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#670A
O RING,15MM
670B2015
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
