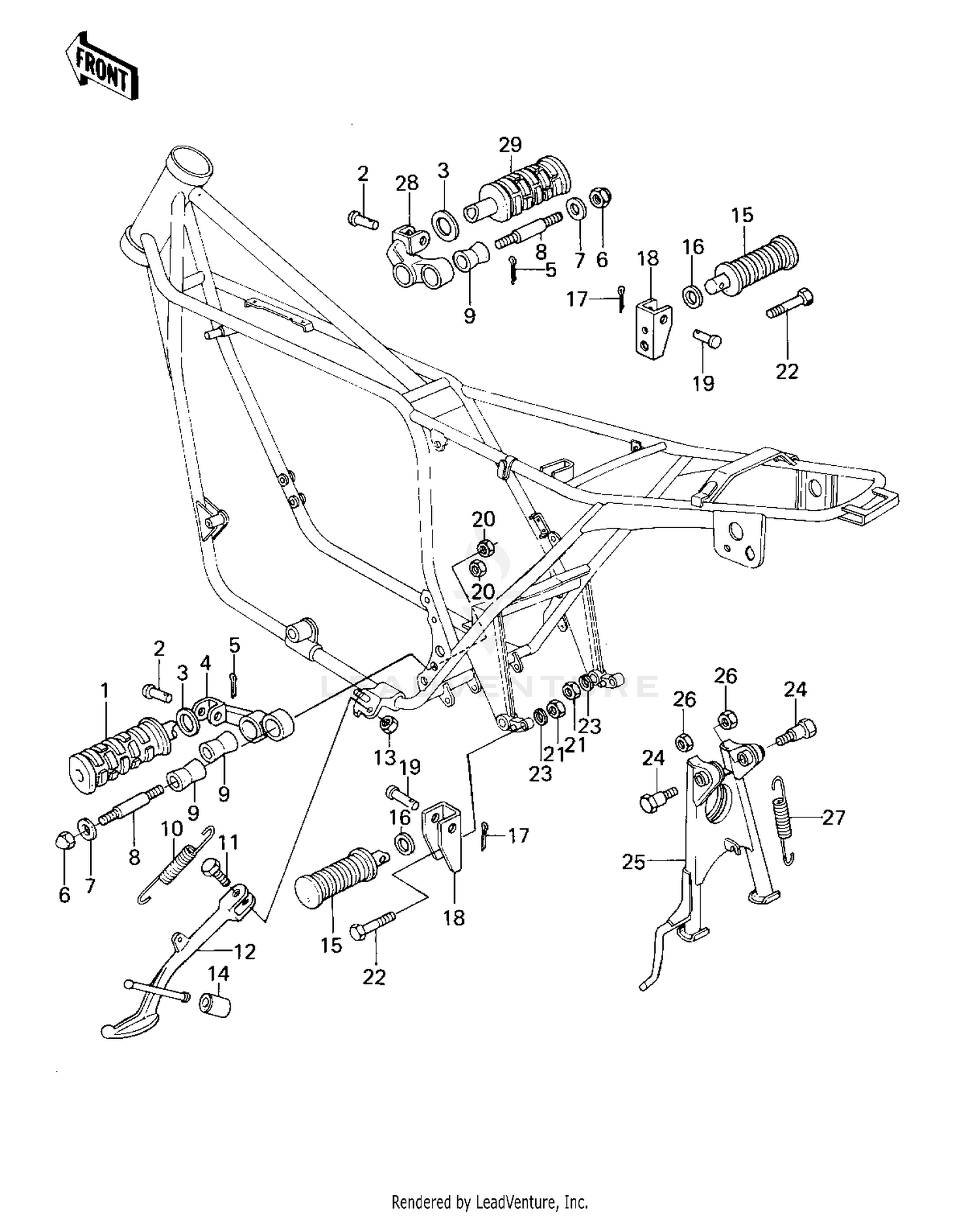

Footrests/stands ('77-'78 A1/a2/a2a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR-FOOTREST,L.H
34028-011
|
$28.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN,8X31
92043-080
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER,25X36X2.3
92022-250
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET,FOOTREST,L.H
34003-036
|
$116.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT,CAP AND LOCK,8MM
92019-013
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT,CAP AND LOCK,8MM
92019-013
|
$14.35 | ||
|
Unavailable |
|||
|
#7
CAP,FOOTRESTBAR
92102-010
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
STUD,FOOTREST BAR FIT
92004-048
|
$13.86 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER RUBBER,FOOTRST
92075-140
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING,STAND
34025-005
Superseded by 92145-0106
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT,SIDE STAND
92003-079
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAND-SIDE
34024-1038
|
$88.61 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER,SIDE STAND
92075-031
Superseded by 92160-1655
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER,FOOTREST
92076-027
|
$35.79 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-PLAIN (OPT)
92022-199
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN,COTTER,2.0X12
550D2012
Superseded by 550AA2012
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET,STEP
32054-1021
|
$24.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN,6X28
92043-1464
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Unavailable |
|||
|
#21
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT,10X28
113G1028
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
SHAFT MAIN STAND
34019-014
|
$30.97 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAND-MAIN
34011-1015
|
$234.33 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT,MAIN STAND FITT
92016-044
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING,CENTER STAND
34023-012
Superseded by 92145-0104
|
$15.66 | ||
|
Available to order. Add to View Price |
|||
|
#28
BRACKET,FOOTREST,R.H
34003-037
|
$31.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING,CENTER STAND
34023-012
Superseded by 92145-0104
|
$15.66 | ||
|
Unavailable |
|||
