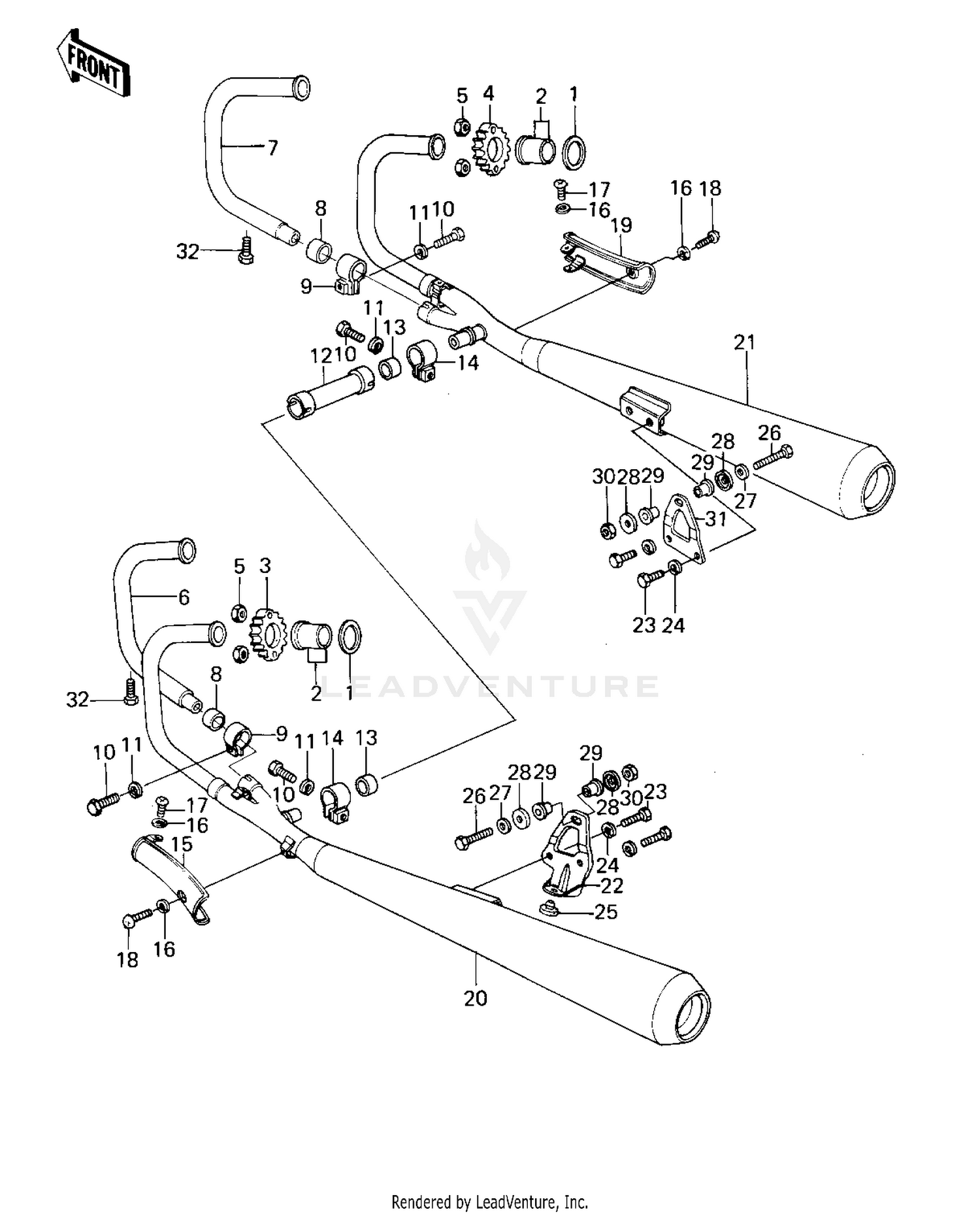

Mufflers ('77-'78 A1/a2/a2a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET,EXHAUST PIPE HOLDER
11009-1906
Superseded by 18067-018
|
$6.77 | ||
|
Available to order. Add to View Price |
|||
|
#2
INSERT,EXHAUST PIPE
92027-170
|
$13.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER,EXHAUST PIPE,
18069-1005
|
$58.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER,EXHAUST PIPE,
18069-1004
|
$63.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT,LOCK,8MM
92017-013
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE,EXHAUST,L.H INN
18049-1089
|
$170.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE,EXHAUST,L.H INN
18049-1018
|
$107.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE,EXHAUST,R.H INN
18049-1090
|
$170.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE,EXHAUST,R.H INN
18049-1019
|
$107.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET,MANIFOLD EXHAU
11060-1068
|
$27.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP,MUFFLER
92037-1258
|
$15.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT HEX HEAD 8X32
114G0832
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE,MUFFLER CONNECTN
18039-025
|
$30.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET,EXHAUST PIPE C
11009-1718
|
$26.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP,MUFFLER
92037-1221
Superseded by 92170-1454
|
$11.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER,MUFFLER,L.H
18057-051
|
$20.08 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-PAN HEAD,6X40
220B0640
Superseded by 220AA0640
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW PAN HEAD 6X8
92011-039
Superseded by 220E0608
|
$2.45 | ||
|
Unavailable |
|||
|
#19
COVER,MUFFLER,R.H
18057-052
|
$21.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
MUFFLER,L.H.
18001-1007
|
$542.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
MUFFLER ASSY,L.H
18001-1022
|
$372.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
MUFFLER ASSY,R.H.
18001-1008
|
$522.72 | ||
|
Available to order. Add to View Price |
|||
|
#21
MUFFLER ASSY,R.H
18001-1023
|
$362.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET,MUFFLER,R.H
18024-038
|
$30.52 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT-SMALL-UPSET,8X14
115B0814
Superseded by 115AA0814
|
$0.59 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Unavailable |
|||
|
#25
DAMPER
92075-015
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT-HEX HEAD,10X60
113N1060
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER-PLAIN-SMALL,10MM
410B1000
Superseded by 410AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER,PLAIN
92022-328
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#29
BUSHING,MUFFLER FITT
92092-010
|
$15.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT,LOCK,10MM
92019-021
Superseded by 92210-1184
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRACKET,MUFFLER,R.H
18024-035
|
$30.41 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT (6X10)
110R0610
|
$3.37 | ||
|
Available to order. Add to View Price |
|||
