1978 Kawasaki KZ1000A/J Swing Arm/shock Absorbers ('77-'78 A1/a2 OEM Parts

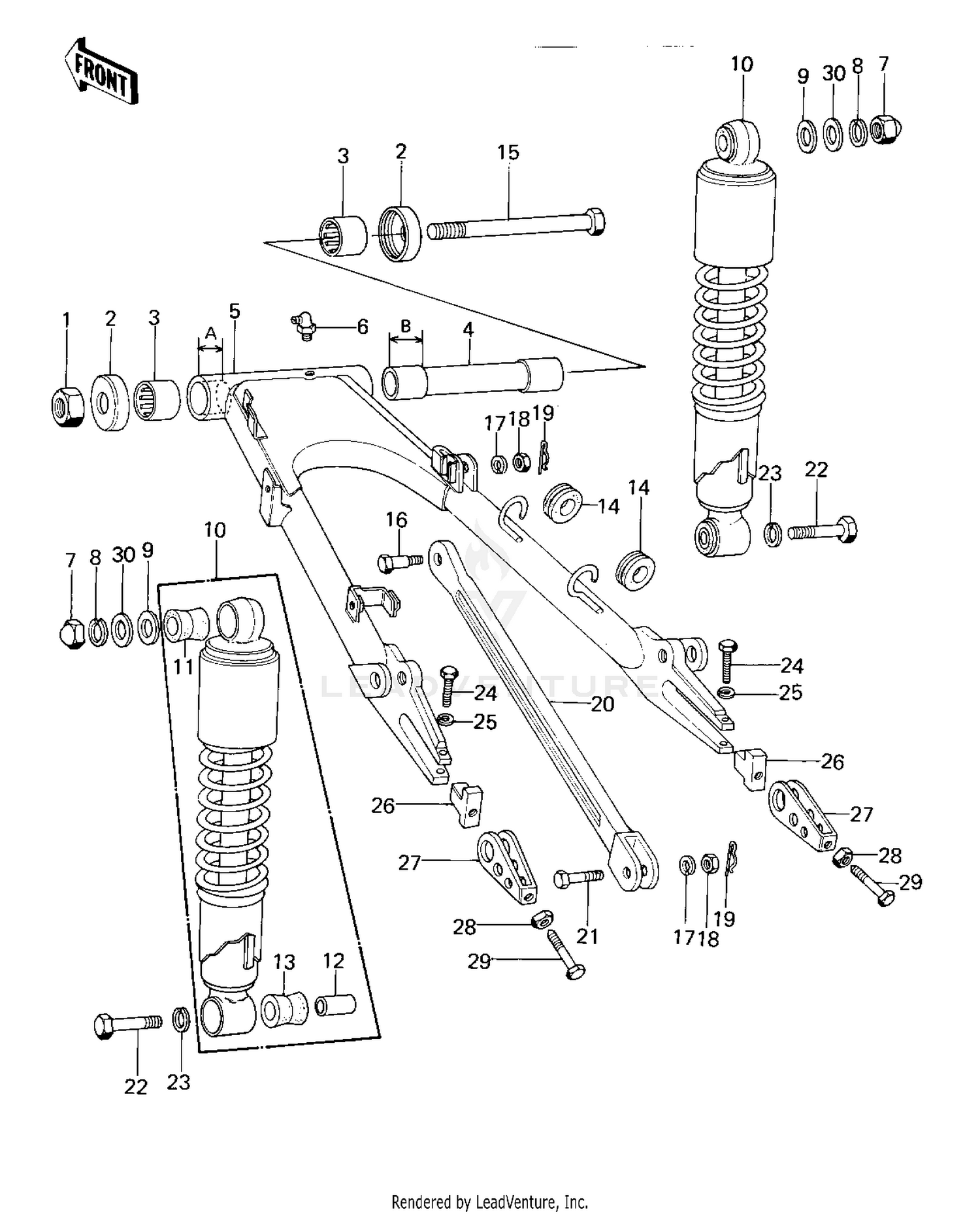

Swing Arm/shock Absorbers ('77-'78 A1/a2 Diagram

Item	MSRP	Qty
#1 NUT-SELF LOCKING 92019-012	$24.79
Available to order. Add to View Price
#2 CAP,SWING ARM 33035-009	$17.21
Available to order. Add to View Price
#3 BEARING-NEEDLE,HK2216 92046-1115	$19.30
Available to order. Add to View Price
#3 BEARING-NEEDLE,HK2216 92046-061 Superseded by 92046-1115	$19.30
Unavailable
#4 SLEEVE,SWING ARM 33034-025	$93.97
Available to order. Add to View Price
#4 SLEEVE,SWING ARM 42036-1011	$185.93
Available to order. Add to View Price
#5 SWING ARM 33001-091	$278.30
Available to order. Add to View Price
#5 ARM,SWING 33001-1014	$343.98
Available to order. Add to View Price
#6 GREASE NIPPLE 92005-002	$7.79
Available to order. Add to View Price
#7 NUT 12MM 92020-014	$9.12
Available to order. Add to View Price
#8 WASHER-SPRING,12MM 461F1200 Superseded by 461DA1200	$1.00
Available to order. Add to View Price
#9 WASHER-PLAIN-SMALL,12MM 410B1200 Superseded by 410AA1200	$0.70
Available to order. Add to View Price
#10 SHOCK ABSBR RR 45014-107	$844.09
Available to order. Add to View Price
#11 BUSHING,SHCK ABS RUB 45017-018	$9.15
Available to order. Add to View Price
#12 BUSH SHCK ABS PVT SFT 45016-003	$15.35
Available to order. Add to View Price
#13 BUSHING,SHCK ABSORBER 45017-011	$24.08
Available to order. Add to View Price
#14 GROMMET,HOSE CLAMP 43064-007	$5.34
Available to order. Add to View Price
#15 SHAFT,SWING ARM PIVOT 33032-036	$61.95
Available to order. Add to View Price
#16 BOLT,HEX HEAD,10X39 92003-218	$7.39
Available to order. Add to View Price
#17 WASHER-SPRING,10MM 461F1000 Superseded by 461DA1000	$0.67
Available to order. Add to View Price
#18 NUT-HEX-FINE 314B1000 Superseded by 314AA1000	$0.67
Available to order. Add to View Price
#19 PIN-SNAP 554A0800 Superseded by 554DA0800	$1.32
Available to order. Add to View Price
#21 BOLT,10X47 92001-1145	$6.81
Available to order. Add to View Price
#22 BOLT-UPSET 113N1035 Superseded by 112N1035	$9.49
Available to order. Add to View Price
#23 WASHER-SPRING,10MM 461F1000 Superseded by 461DA1000	$0.67
Unavailable
#24 BOLT,FLANGED,8X40 92001-1578 Superseded by 92002-1838	$7.91
Available to order. Add to View Price
#25 WASHER-SPRING,8MM 461F0800 Superseded by 461DA0800	$0.40
Available to order. Add to View Price
#26 STOPPER,CHAIN ADJUST 33044-001	$38.48
Available to order. Add to View Price
#27 ADJUSTER,CHAIN 33040-066	$29.71
Available to order. Add to View Price
#28 NUT-HEX-FINE,10MM 315B1000 Superseded by 315AA1000	$0.58
Available to order. Add to View Price
#29 BOLT-CHN ADJUST 10MM 92001-143	$19.03
Available to order. Add to View Price
#30 WASHER,PLAIN,12 X 22 92022-1057	$6.39
Available to order. Add to View Price
