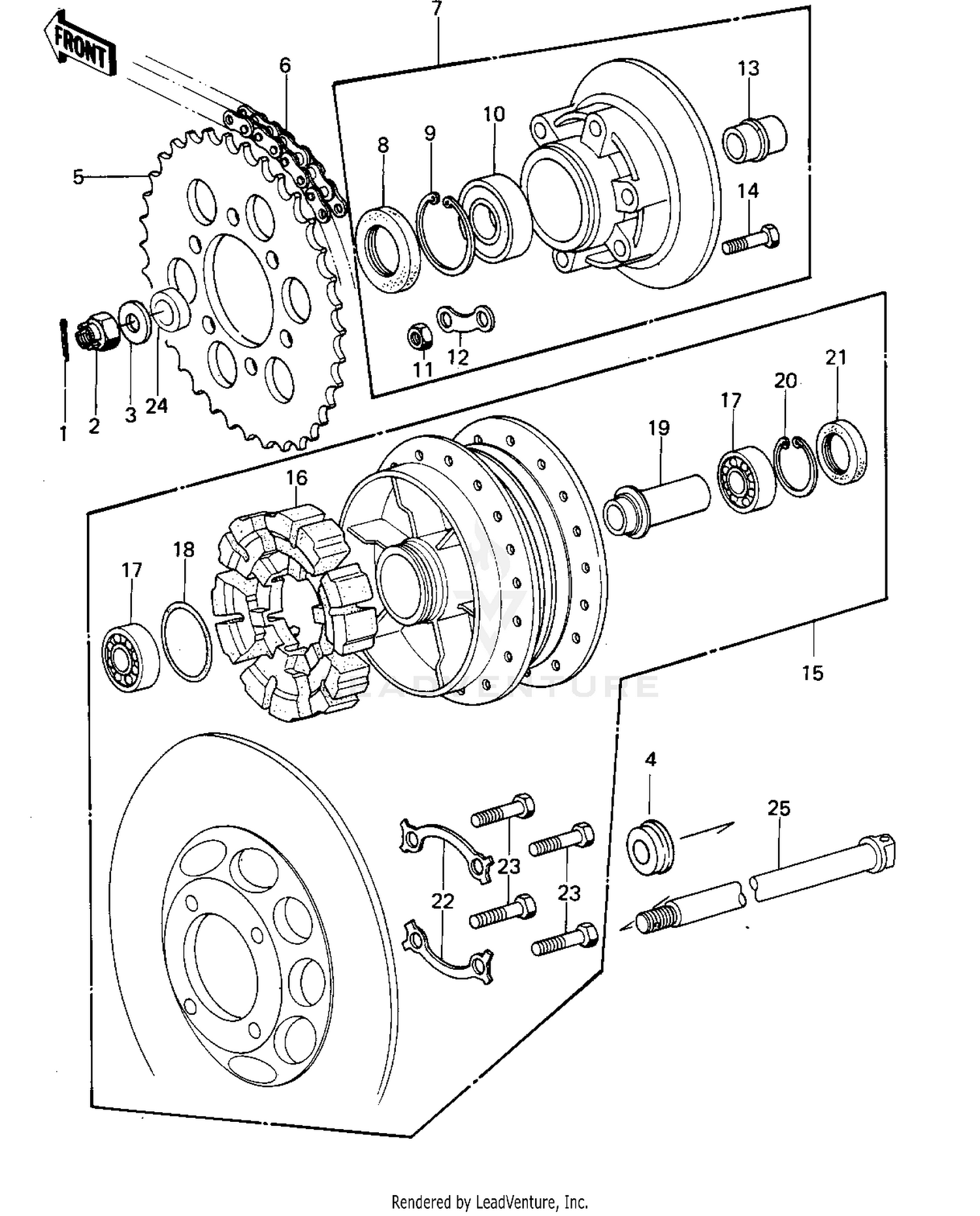

Rear Hub/chain ('77-'78 A1/a2/a2a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN-COTTER,4.0X35
550D4035
Superseded by 550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT,CASTLE,18MM
42045-018
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER,PLAIN,20MM
92022-248
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR,REAR AXLE
42032-070
|
$85.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
REAR SPROCKET,33T
42041-1010
|
$122.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
DR CHAIN 630X92
92057-107
|
$414.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
COUPLING ASSY,REAR HB
42008-034
|
$157.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL-OIL,AJN40627
92050-027
|
$20.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING-SNAP,62MM
92033-1044
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING-BALL,6206-9C3
601B6206
Superseded by 92045-0110
|
$24.83 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT 10MM
42045-005
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER LOCK
92088-007
|
$13.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
SLEEVE
42036-024
|
$77.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT,TORQUE ROD FRONT
92001-1208
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
DRUM ASSY,REAR BRAKE
42005-053
|
$397.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHOCK DAMPER,REAR HUB
42014-028
|
$161.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING BALL #6304
601B6304
|
$35.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
O RING,60MM
671B2560
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR,BRG
42010-030
|
$20.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
RING-SNAP,52MM
92033-1043
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL-OIL
92052-006
Superseded by 92049-1287
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER,LOCK
92088-023
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
92001-158
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR,REAR AXLE
42032-071
|
$13.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
AXLE,REAR
42031-034
|
$135.90 | ||
|
Available to order. Add to View Price |
|||
