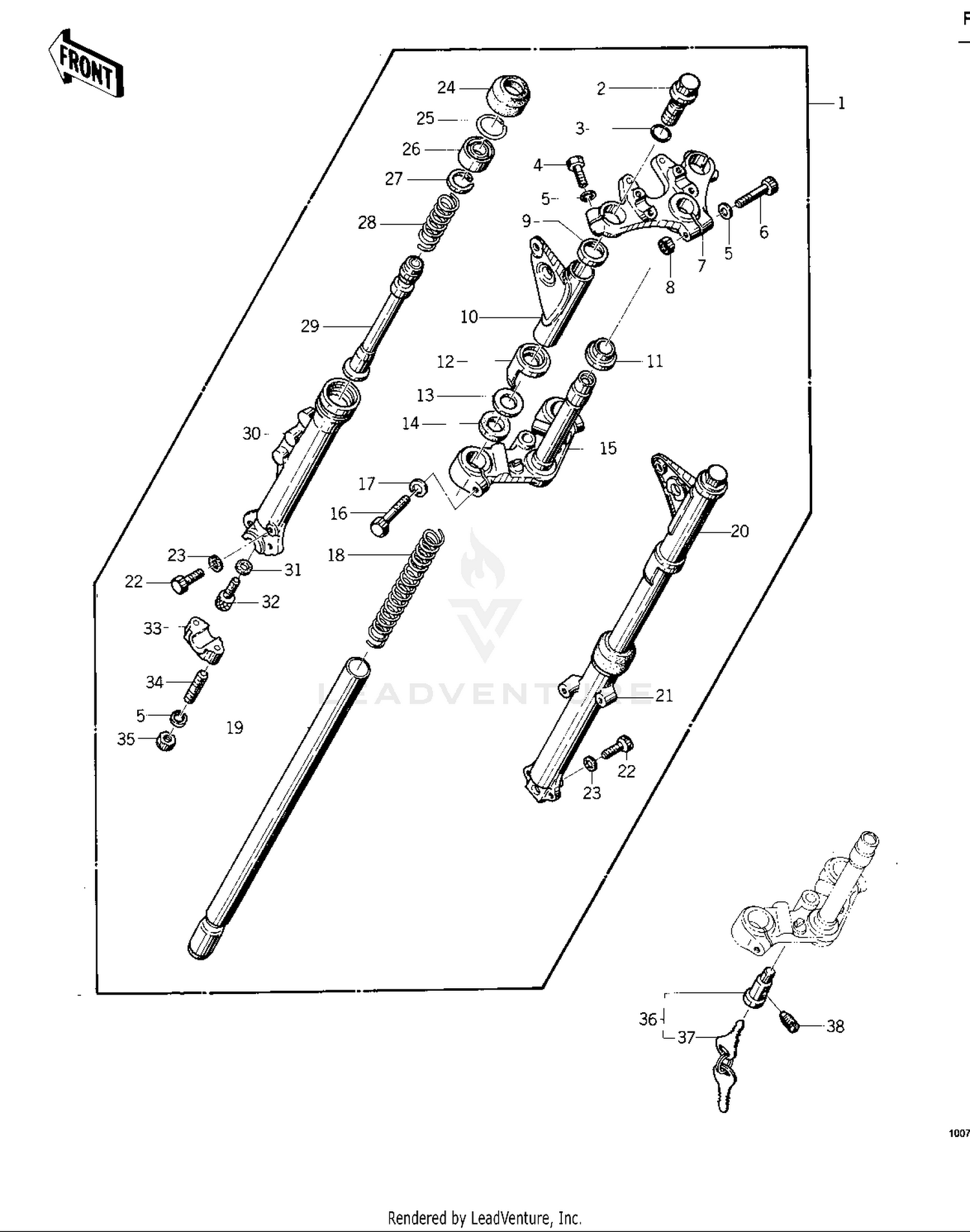

1977 Kawasaki KZ400A DELUXE FRONT FORK ('74 -'75 KZ400/KZ400D) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK-FRONT
44001-181
|
$891.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FORK TOP
44032-012
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
O RING,FORK TOP BLT
44046-023
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT-HEX HEAD.8M/M
44041-045
|
$23.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT-HEX HEAD,8X55
44041-038
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
HEAD, STEERING STEM
44039-064
|
$174.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT,LOCK,8MM
92015-1124
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, FORK COVER
44064-022
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER,L.H.FORK,W/CAP
44033-5001
|
$91.66 | ||
|
Available to order. Add to View Price |
|||
|
#11
CONE STRNG STEM BERNG
92047-006
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, FORK COVER
44064-021
|
$22.01 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER,FORK COVER
92022-297
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER RUBBER,FK COV
92075-240
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
STEM, STEERING
44037-077
|
$478.61 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX HEAD,10X30
44041-079
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, FORK
44026-061
|
$33.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE,FORK INNER
44013-049
|
$173.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER,R.H,FORK,W/CAP
44033-5002
|
$96.13 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE,RH,FORK OUTER
44006-056
|
$154.34 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT HEX HEAD 6X8
110B0608
|
$0.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET,DRAIN PLUG
44045-047
Superseded by 44045-052
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SHIELD,FORK
92093-1063
|
$32.04 | ||
|
Available to order. Add to View Price |
|||
|
#25
RING,OIL SEAL STOPPER
44043-057
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL-OIL,FORK OUTER TUBE
92049-1077
Superseded by 92049-1340
|
$19.11 | ||
|
Available to order. Add to View Price |
|||
|
#27
RING, PISTON
44025-003
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING,FORK CYLINDER
44026-054
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#29
CYLINDER-FORK
44022-024
|
$57.46 | ||
|
Available to order. Add to View Price |
|||
|
#30
TUBE,LH,FORK OUTER
44005-058
|
$176.95 | ||
|
Available to order. Add to View Price |
|||
|
#31
GASKET,FORK CYLINDER BOLT
44045-051
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT,FORK CYLINDER
44041-078
|
$9.19 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOLDER, FRONT AXLE
44063-010
|
$28.85 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT-HEX-SMALL,8MM
312B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT-HEX-SMALL,8MM
312B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Unavailable |
|||
|
#36
LOCK ASSY,STEERING
27016-043
|
$34.85 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW,SEAT LOCK
92014-016
|
$7.43 | ||
|
Available to order. Add to View Price |
|||
