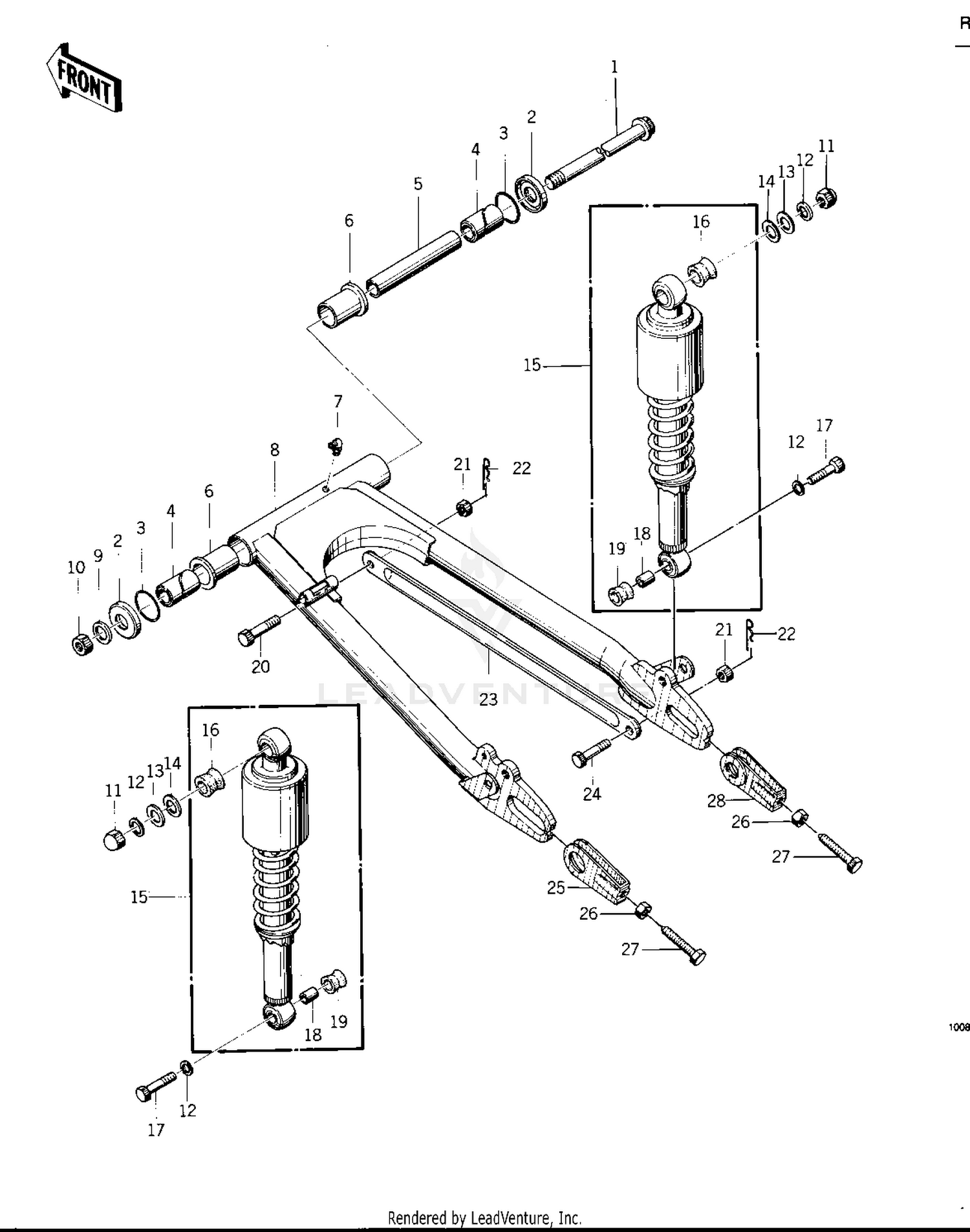

1977 Kawasaki KZ400A DELUXE SWING ARM/SHOCK ABSORBERS ('74 -'75 KZ40 OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT,SWING ARM PIVOT
33032-046
|
$58.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP-SWING ARM
33035-004
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
0 RING,30MM
671B2530
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
SLEEVE-SWING ARM,SHRT
33034-013
|
$27.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR,SWING ARM
33036-006
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSHING-SWING ARM
33033-009
|
$92.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
GREASE NIPPLE
92005-002
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM,SWING
33001-073
|
$149.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER BRAKE PEDAL
92022-085
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT-LOCK,14MM
92019-011
|
$10.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT,CAP,10MM
92020-003
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER-PLAIN,10MM
411B1000
Superseded by 411AA1000
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER,10.5X26X2.3
92022-044
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHOCK ABSBR RR
45014-101
|
$247.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSHING,SHCK ABS RUB
45017-015
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-UPSET
113N1035
Superseded by 112N1035
|
$9.14 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR,SHOCKABSORBER
45016-008
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUSHING, SHCK ABS RUB
45017-012
|
$13.83 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT,10X29
92003-096
Superseded by 92151-1876
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN-SNAP
554A0800
Superseded by 554DA0800
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#23
TORQUE LINK REAR BRK
43007-016
|
$24.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT HEX HEAD 10MM
92003-034
|
$12.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
ADJUSTER,CHAIN,L.H
33040-062
|
$23.21 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT-HEX-SMALL,8MM
312B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT,8X50
92001-1399
Superseded by 92002-1076
|
$8.81 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT,8X50
92001-1399
Superseded by 92002-1076
|
$8.81 | ||
|
Unavailable |
|||
|
#28
ADJUSTER-CHAIN
33040-043
Superseded by 33040-1004
|
$26.65 | ||
|
Available to order. Add to View Price |
|||
