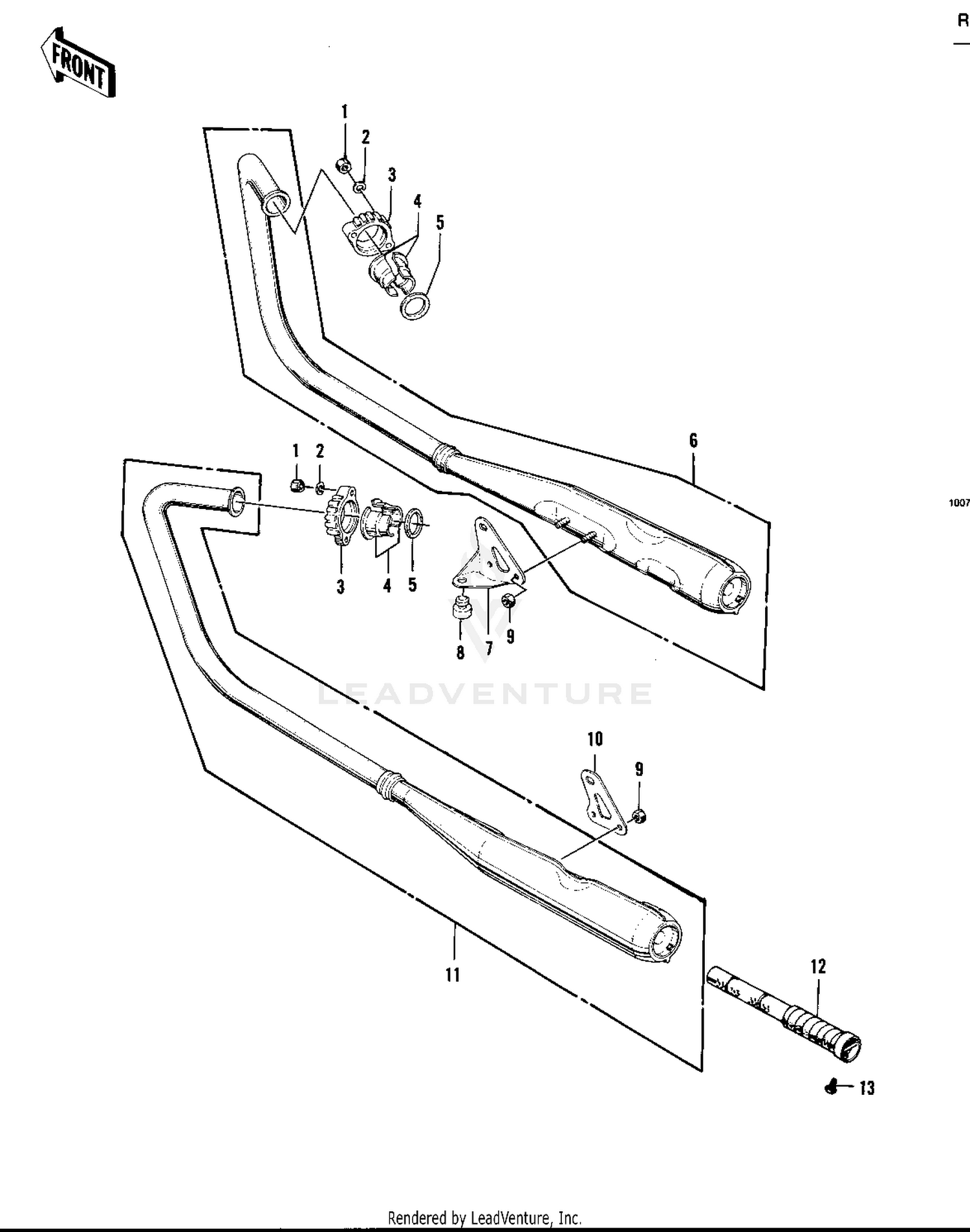

1977 Kawasaki KZ400A DELUXE MUFFLERS ('74 -'75 KZ400/KZ400D) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT-HEX,6MM
311N0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER,EX PIPE,BARREL
18069-056-2H
|
$60.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR,EXHAUST PIPE
92027-224
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET,EXHAUST PIPE
11060-1242
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
MUFFLER ASSY R.H.
18001-166
|
$526.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET,METER,R.H
18024-024
|
$28.97 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER
92075-015
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT,LOCK,8MM
92015-1124
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET,MUFFLER,L.H
18024-025
|
$23.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
MUFFLER ASSY,L.H
18001-165
|
$527.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAFFLE TUBE
18033-085
|
$92.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-UPSET,6X16
112G0616
Superseded by 112BA0616
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
