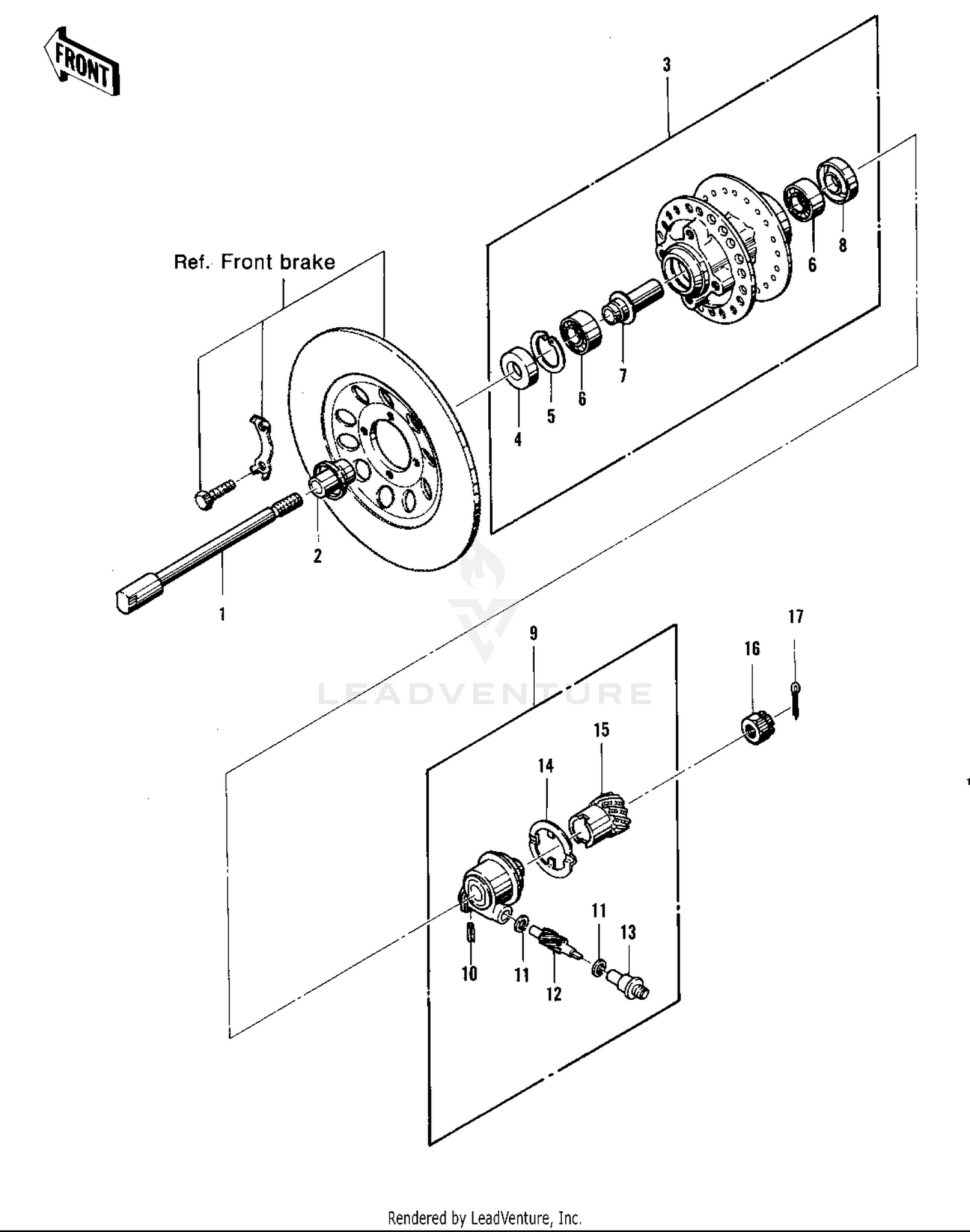

Front Hub ('74 -'75 Kz400/kz400d) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE,FRONT
41068-045
|
$36.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR,FRONT AXLE
41069-028
|
$11.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
DRUM ASY,FR BRK,BUFF
41034-035-80
|
$146.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
DRUM-ASSY,FR BRK,BUFF
41034-038-80
|
$193.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL,WTC22427
92052-011
|
$24.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING-SNAP,42MM
92033-1041
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING BALL #6302
601B6302
|
$8.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR,FR HUB BEARING
41039-026
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL,WTC40528
92052-012
|
$14.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR BOX ASSY
41078-005
|
$67.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR BOX ASSY
41078-006
|
$129.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN,SPRING
41082-001
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER,5.1X9X0.4
41063-001
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
PINION,SPEEDOMETER
41060-016
|
$29.74 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUSH,SPEEDMETER CABLE
41062-005
|
$18.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
DRIVE,SPEED,GEAR
41064-012
|
$11.68 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR,SPEEDOMETER
41059-025
|
$28.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT,CASTLE,14MM
42045-020
Superseded by 92015-1765
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN-COTTER,3.0X25
550D3025
Superseded by 550AA3025
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
