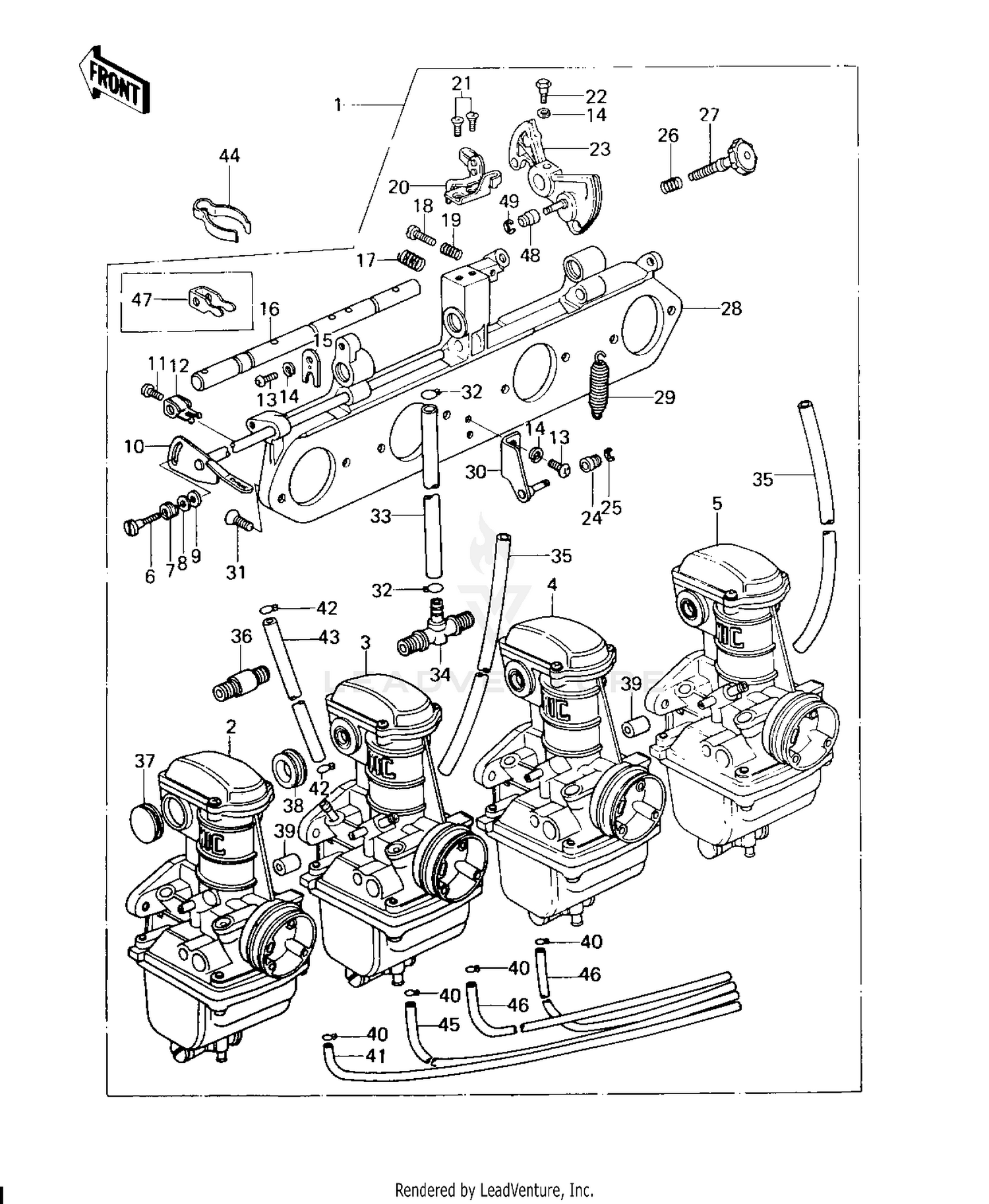

Carburetor Assy Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
16001-1069
|
$1,081.62 | ||
|
Available to order. Add to View Price |
|||
|
#1
CARBURETOR ASSY
16001-1069
|
$1,081.62 | ||
|
Unavailable |
|||
|
#1
CARBURETOR ASSY
16001-1026
|
$1,129.98 | ||
|
Available to order. Add to View Price |
|||
|
#1
CARBURETOR ASSY
16001-1084
|
$1,069.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
CARBURETOR,L.H,OUT
16001-1070
|
$288.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
CARBURETOR,L.H,OUTSID
16001-1079
|
$276.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
CARBURETOR,L.H,INSIDE
16001-1071
|
$354.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
CARBURETOR,L.H,INSIDE
16001-1080
|
$276.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
CARBURETOR,R.H,INSIDE
16001-1072
|
$289.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
CARBURETOR,R.H,INSIDE
16001-1081
|
$354.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
CARBURETOR,R.H,OUT
16001-1073
|
$354.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
CARBURETOR,R.H,OUTSID
16001-1082
|
$290.28 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
16046-005
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING,F
16040-009
|
$11.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-PLAIN-SMALL
410B0500
Superseded by 410AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,PLAIN
16039-019
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT,STARTER PLUNGER
16041-021
|
$53.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW,PAN HEAD,5X7
16046-007
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER,STARTER PLUNGER
13168-1026
|
$24.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW-PAN-CROS,5X14
220B0514
Superseded by 220AA0514
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE,SHAFT STOPPER
16055-012
|
$10.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT,CARB CONNECTION
16041-017
|
$66.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING,CABLE PULLY
16040-022
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
16021-032
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW,ADJUST
16021-1008
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING,THROTTLE ADJST
16022-010
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET,THROTTLE CABL
16077-017
|
$57.56 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-CSK-CROS,5X10
221B0510A
Superseded by 221AA0510
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT,HEX HEAD,5X14
16067-006
|
$17.61 | ||
|
Available to order. Add to View Price |
|||
|
#23
PULLEY,THROTTLE CABLE
16068-015
|
$64.57 | ||
|
Available to order. Add to View Price |
|||
|
#24
RING
16073-016
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP 3MM
482K3000
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING,THROTTLE STOP
16022-017
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW,THROTTLE STOP
16021-1010
|
$30.97 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOLDER,CARBURETOR
16065-049
|
$111.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING,THROTTLE PULLY
92081-1028
|
$73.66 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRACKET,THROTTLE CABL
16077-016
|
$15.23 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW,6X14
16033-029
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP,CARB CONECT HOS
92037-056
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#33
TUBE,5.8X10.8X180
92059-1443
|
$33.72 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE,FEL,6.5X11.5X160
92059-1044
|
$31.92 | ||
|
Available to order. Add to View Price |
|||
|
#34
FITTING
92005-1010
|
$28.05 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE,AIR VENT,5X8X250
92059-1045
|
$12.79 | ||
|
Available to order. Add to View Price |
|||
|
#36
FITTING
92005-1009
|
$63.16 | ||
|
Available to order. Add to View Price |
|||
|
#37
CAP,RUBBER
16039-042
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#38
GROMMET,CARBURETOR
92071-104
|
$31.75 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOSE,6X11.5X16
92059-141
|
$17.33 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP,OVERFLOW HOSE
92037-173
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOSE,FUEL OVERFLOW
92059-147
|
$34.79 | ||
|
Unavailable |
|||
|
#42
CLAMP-PIPE
92037-072
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#43
TUBE,5.3X10.5X140
92059-1019
|
$26.36 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLAMP,AIR VENT HOSE
92037-1092
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#45
HOSE,FUEL OVERFLOW
92059-147
|
$34.79 | ||
|
Unavailable |
|||
|
#45
HOSE,FUEL OVERFLOW
92059-134
Superseded by 92059-147
|
$34.79 | ||
|
Unavailable |
|||
|
#46
UNAVAILABLE IN PRICE BOOK
97059-134
|
|||
|
Unavailable |
|||
|
#47
UNAVAILABLE IN PRICE BOOK
13166-1026
|
|||
|
Unavailable |
|||
|
#48
RING
16073-016
|
$10.11 | ||
|
Unavailable |
|||
|
#49
CIRCLIP 3MM
482K3000
|
$2.68 | ||
|
Unavailable |
|||
