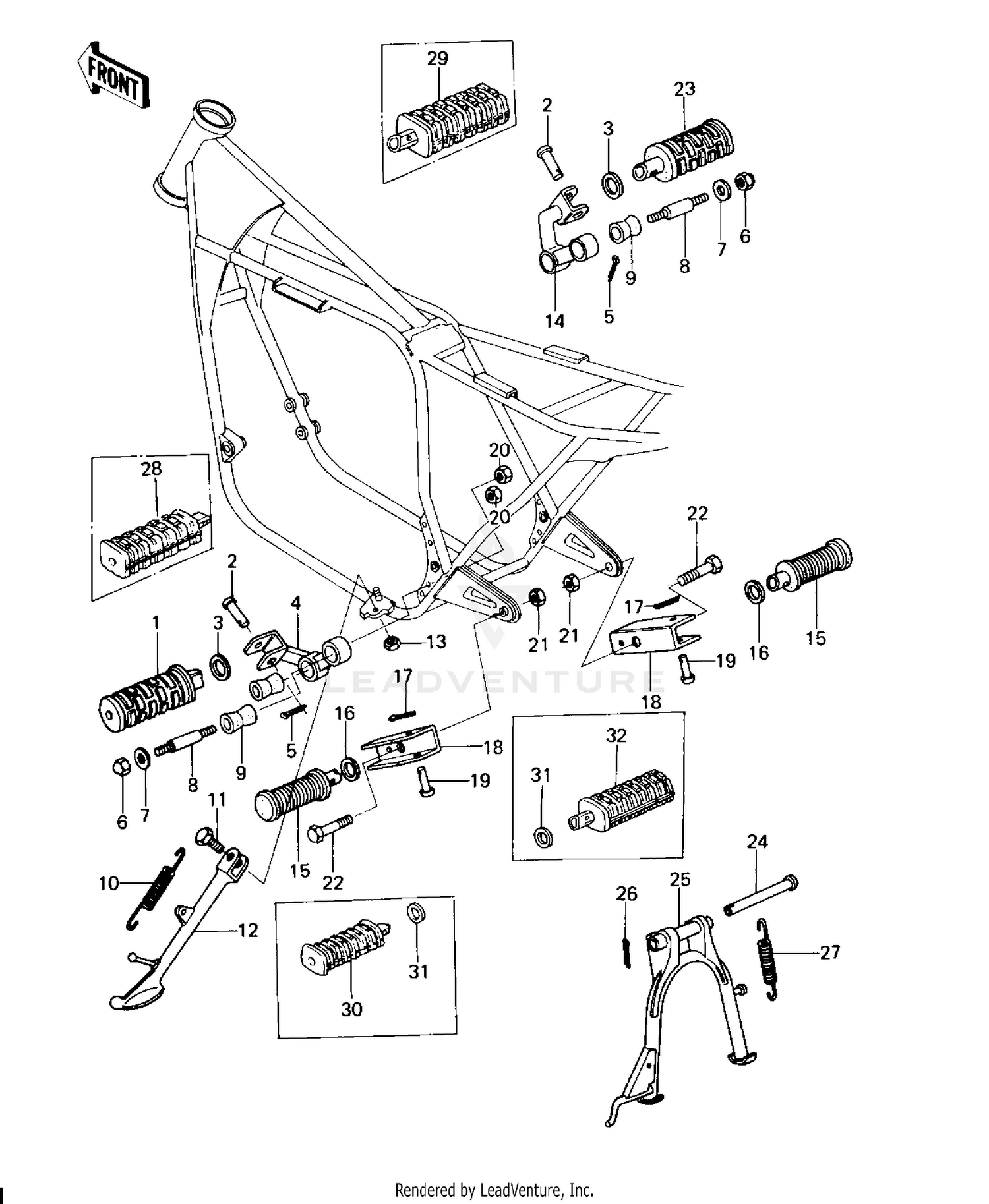

Footrests/stands Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR-FOOTREST,L.H
34028-011
|
$28.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN,8X31
92043-080
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER,25X36X2.3
92022-250
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER,STEP,L.H.
34003-1012
|
$76.12 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN COTTER 2.5X16
550D2516
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT,CAP AND LOCK,8MM
92019-013
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP,FOOTRESTBAR
92102-010
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
STUD,FOOTREST BAR FIT
92004-048
|
$13.86 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER RUBBER,FOOTRES
92075-293
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING,STAND
34025-005
Superseded by 92145-0106
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT,SIDE STAND
92003-079
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAND-SIDE
34024-1103
|
$72.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER,STEP,R.H.
34003-1015
|
$76.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER,FOOTREST
92076-027
|
$35.79 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-PLAIN (OPT)
92022-199
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN,COTTER,2.0X12
550D2012
Superseded by 550AA2012
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET,REAR FOOTREST
34036-002
|
$36.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN,6X28
92043-1464
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT,LOCK,10MM
92019-021
Superseded by 92210-1184
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT,HEX HEAD,10X40
92003-213
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAR-FOOTREST,R.H
34028-012
|
$28.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
SHAFT,MAIN STAND
34019-015
|
$16.80 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAND-MAIN
34011-1003
|
$123.83 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN-COTTER,3.0X30
550D3030
Superseded by 550AA3030
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING,MAIN STAND
34023-016
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
|
#28
STEP,FOOTREST,FRONT,L
34028-1007
|
$37.13 | ||
|
Available to order. Add to View Price |
|||
|
#29
STEP,FOOTREST,FRONT,R
34028-1008
|
$39.13 | ||
|
Available to order. Add to View Price |
|||
|
#30
STEP,FOOTREST,REAR,LH
34028-1009
|
$33.84 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER-PLAIN
92022-181
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#32
STEP,FOOTREST,REAR,RH
34028-1010
|
$33.84 | ||
|
Available to order. Add to View Price |
|||
