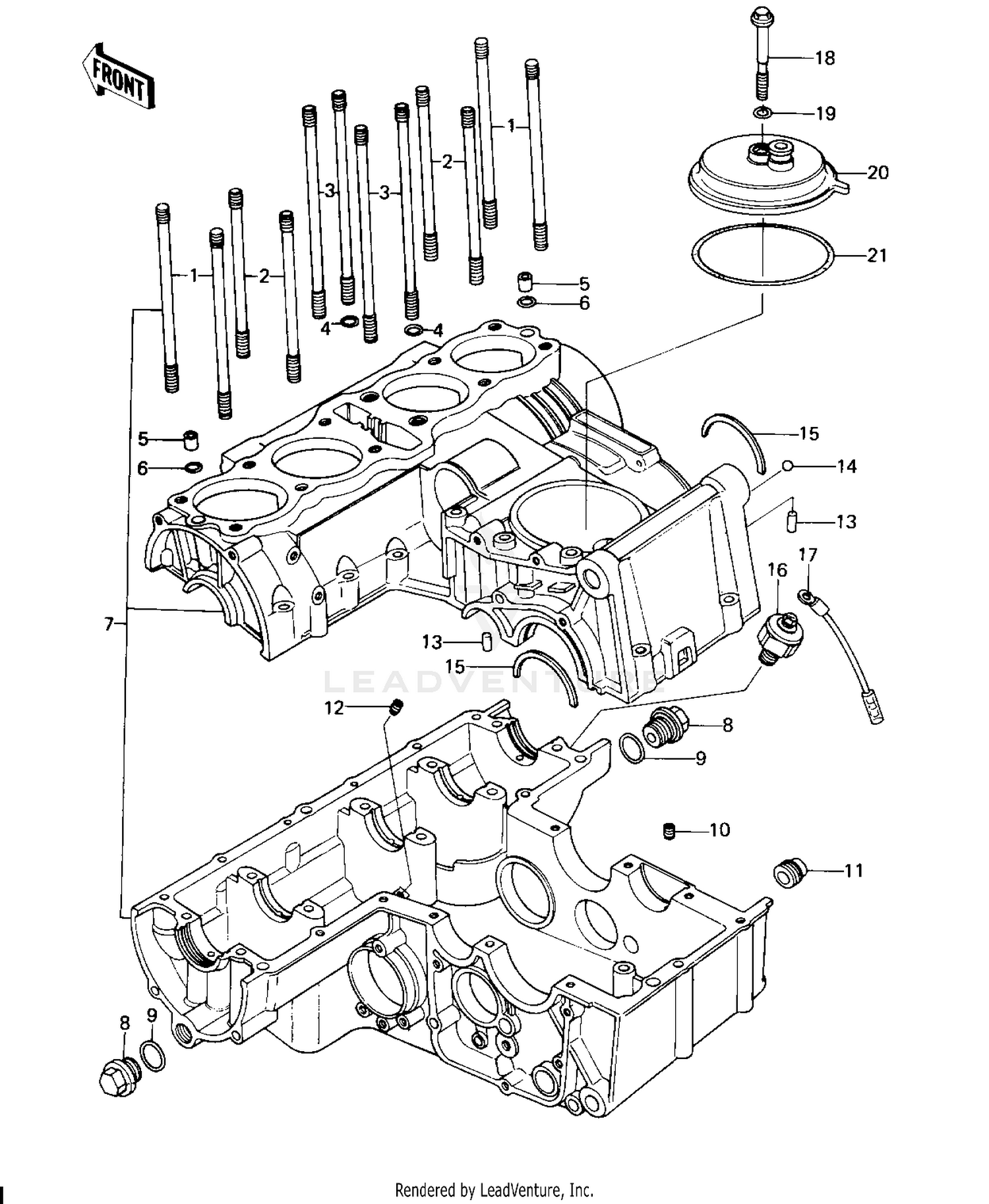

Crankcase/breather Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STUD
92004-1004
Superseded by 92004-1231
|
$15.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
STUD,10X116
92004-1007
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
STUD,10X153
92004-062
Superseded by 92004-1232
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING-O,8.8X1.9
92055-099
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#5
NOZZLE
92062-016
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
O RING,10MM
670D2010
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
CRANKCASE SET
14001-5046
|
$1,087.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG
92066-066
Superseded by 92066-1394
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING-O,20X2
92055-1146
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
NOZZLE,6X8,SILVER
92062-015
Superseded by 92062-1081
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
NOZZLE
92062-014
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
NOZZLE,6X8,BLACK
92062-011
Superseded by 92062-1079
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN,6X16
92042-016
Superseded by 92043-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG,RUBBER BALL,6.7
92066-057
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING-POSITION
14013-004
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#16
SWITCH ASY,OIL PRSSUR
16144-006
|
$106.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
WIRE,LEAD,OIL SWITCH
26011-1011
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT,HEX HEAD,8X72
92003-107
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
O RING,8MM
670B1508
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#20
BODY-BREATHER,BLACK
14070-1008
Superseded by 14070-1010
|
$38.18 | ||
|
Available to order. Add to View Price |
|||
|
#21
O RING,91MM
92055-052
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
