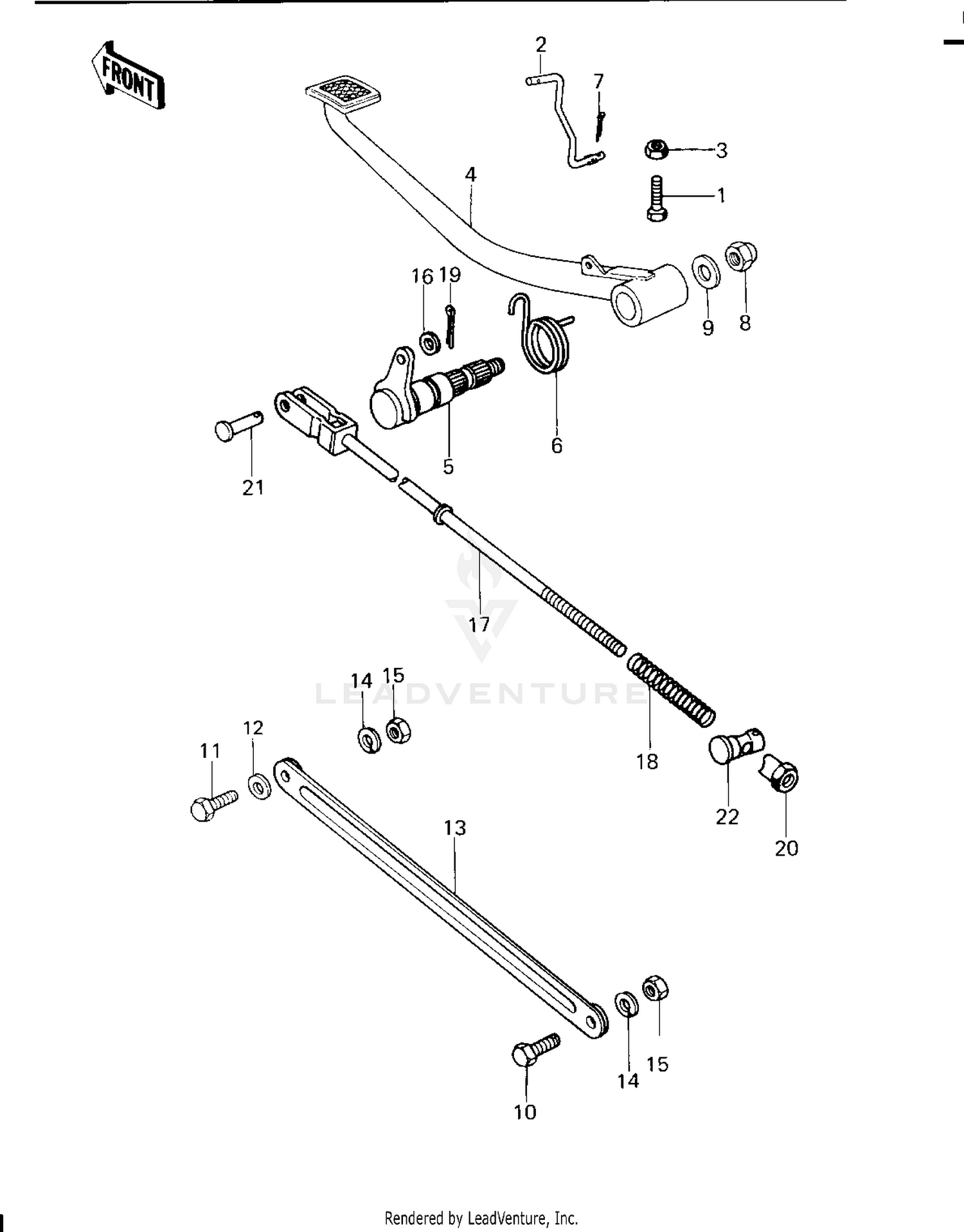

Brake Pedal/torque Link Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOOK,BRAKE SWITCH
27012-1003
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
PEDAL BRAKE
43001-1009
|
$192.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT,BRAKE PEDAL
43004-012
|
$86.94 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING,BRAKE PEDAL
43005-022
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN COTTER 1.6X10
550D1610
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT,CAP AND LOCK,8MM
92019-013
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,8.5X20X1.6
92022-1561
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,HEX HEAD 10X35
92001-1252
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-UPSET
113G1025
Superseded by 112C1-025
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER-PLAIN-SMALL,10MM
410B1000
Superseded by 410AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
TORQUE LINK REAR BRK
43007-016
|
$25.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT,LOCK,10MM
92019-021
Superseded by 92210-1184
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD-BRAKE
43011-009
|
$22.48 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING,BRAKE ROD
43012-001
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT,BRAKE ROD
92015-042
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN,6X17
92043-064
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN-BRAKE ROD
92043-065
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
