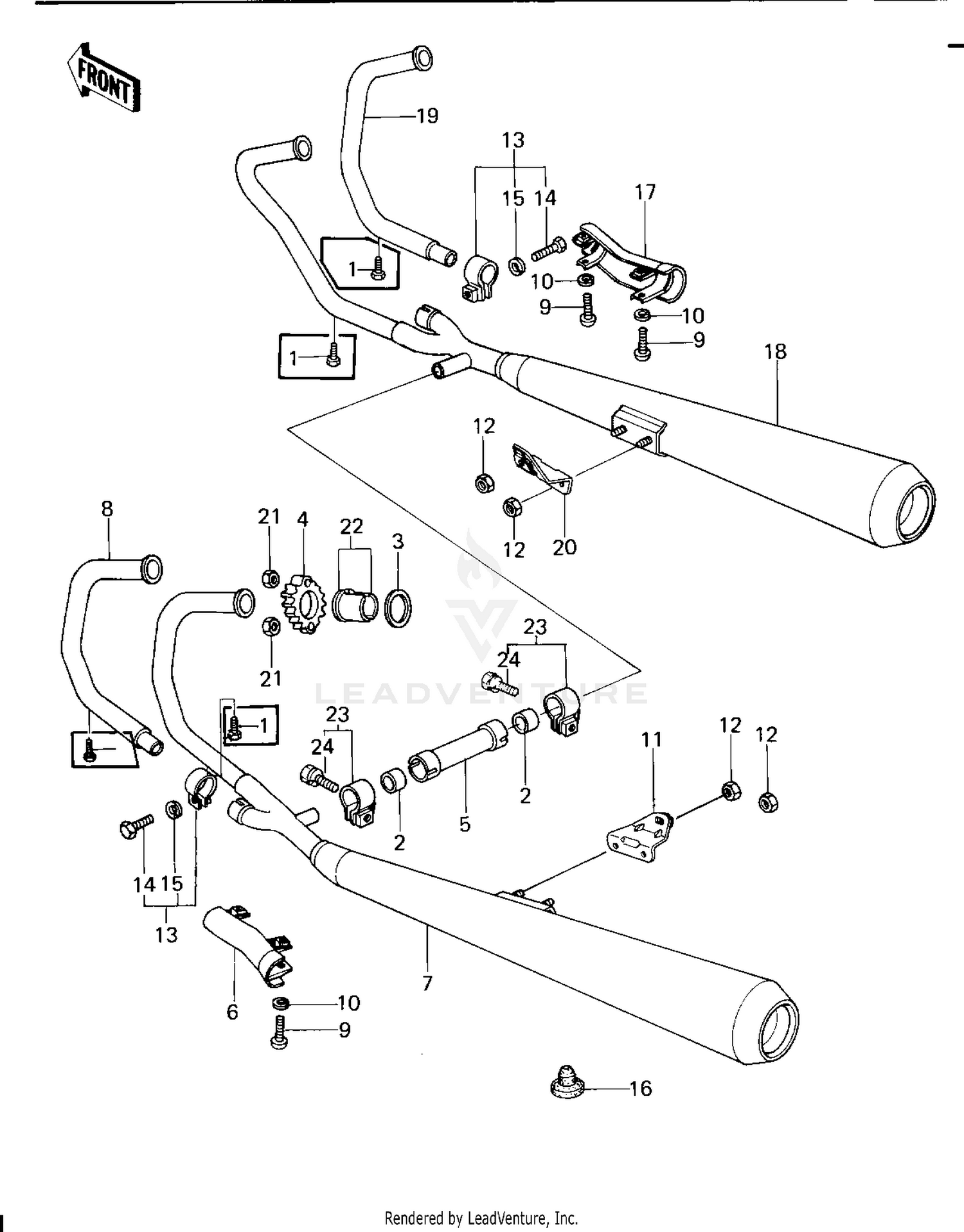

Mufflers Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT (6X10)
110R0610
|
$3.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,MUFFLER CONNEC
11060-1051
|
$22.57 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET,EXHAUST PIPE HOLDER
11009-1866
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER,EXHAUST PIPE
18069-1006
|
$26.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE,MUFFLER CONNECT1
32032-1671
|
$20.06 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER,MUFFLER,L.H.
14025-1029
|
$41.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
MUFFLER ASSY,L.H
18001-1035
|
$309.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE,EXHAUST,#2
18049-1036
|
$98.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW-PAN HEAD,6X40
220B0640
Superseded by 220AA0640
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET,MUFFLER,L.H.
32069-1041
|
$23.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT,LOCK,8MM
92017-013
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP,EXHAUST PIPE
92037-1224
|
$12.06 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-SMALL-USET,8X30
115G0830
Superseded by 115BA0830
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER
92075-1002
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER,MUFFLER,R.H.
14025-1030
|
$24.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
MUFFLER,R.H.
18001-1025
|
$711.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE,EXHAUST,#4
18049-1038
|
$106.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET,MUFFLER,R.H.
32069-1042
|
$20.77 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT,LOCK 6MM
92017-014
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR,EXHAUST PIPE
92027-264
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP,PIPE,35MM
92037-1223
|
$16.17 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,8X30
92001-1379
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
