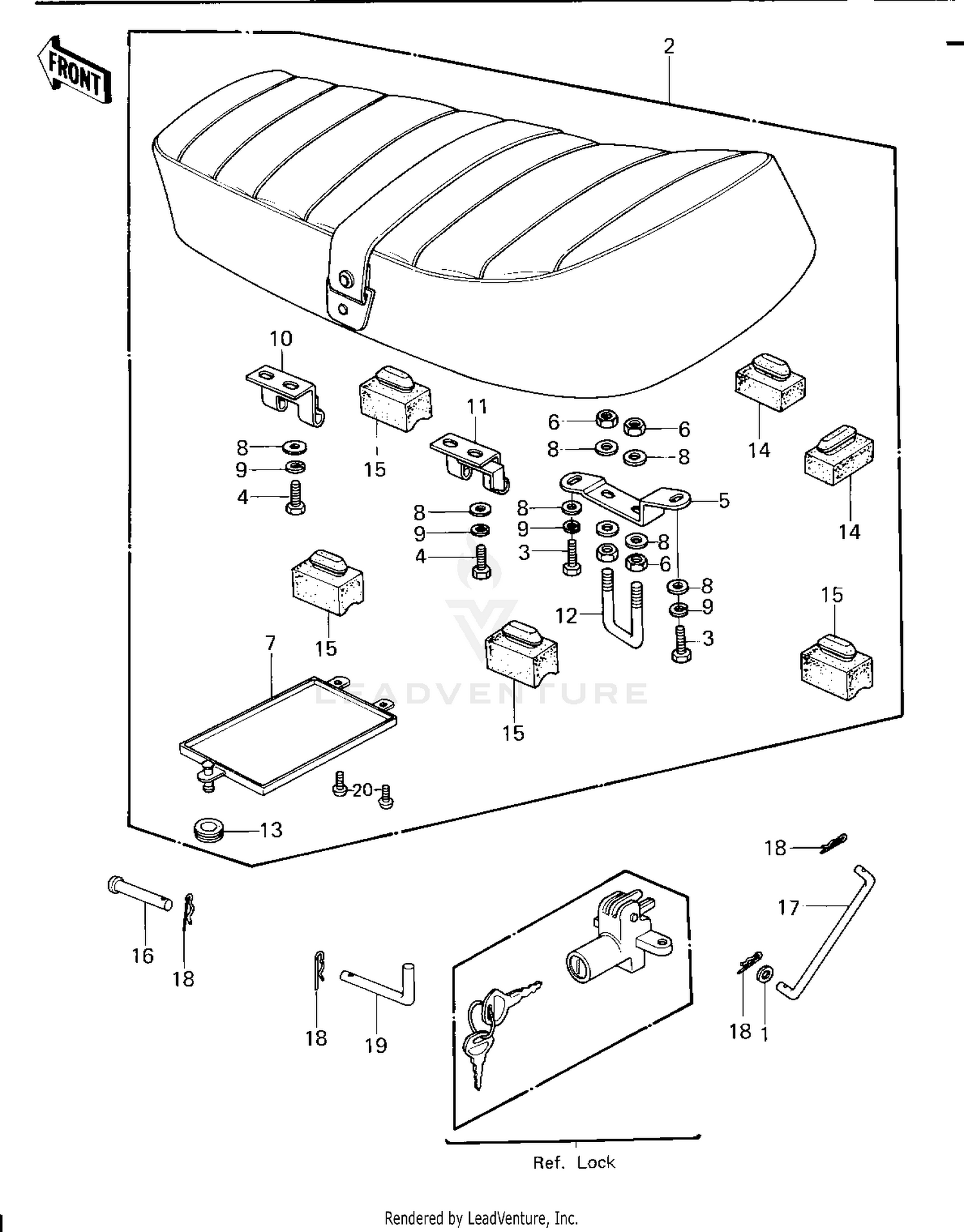

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAT ASSY
53001-1135
|
$374.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT-UPSET,6X16
112G0616
Superseded by 112BA0616
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET,SEAT
11034-1093
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
CASE
32099-011
|
$16.06 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
HINGE
53009-016
|
$10.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
HINGE,SEAT REAR
53009-1004
|
$11.01 | ||
|
Available to order. Add to View Price |
|||
|
#12
CATCH, SEAT
53056-002
|
$16.06 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
92071-056
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
92075-099
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER RUBBER-SEAT
92075-156
|
$10.74 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN
53011-002
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER,SEAT
53054-006
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN-SNAP,1.2X21.2
554A0600
Superseded by 554DA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN,SEAT PIVOT
92043-1021
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-PAN-CROS,5X10
220B0510
Superseded by 220AA0510
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
